Matrix IC-MXIC3B-01 - Page 2

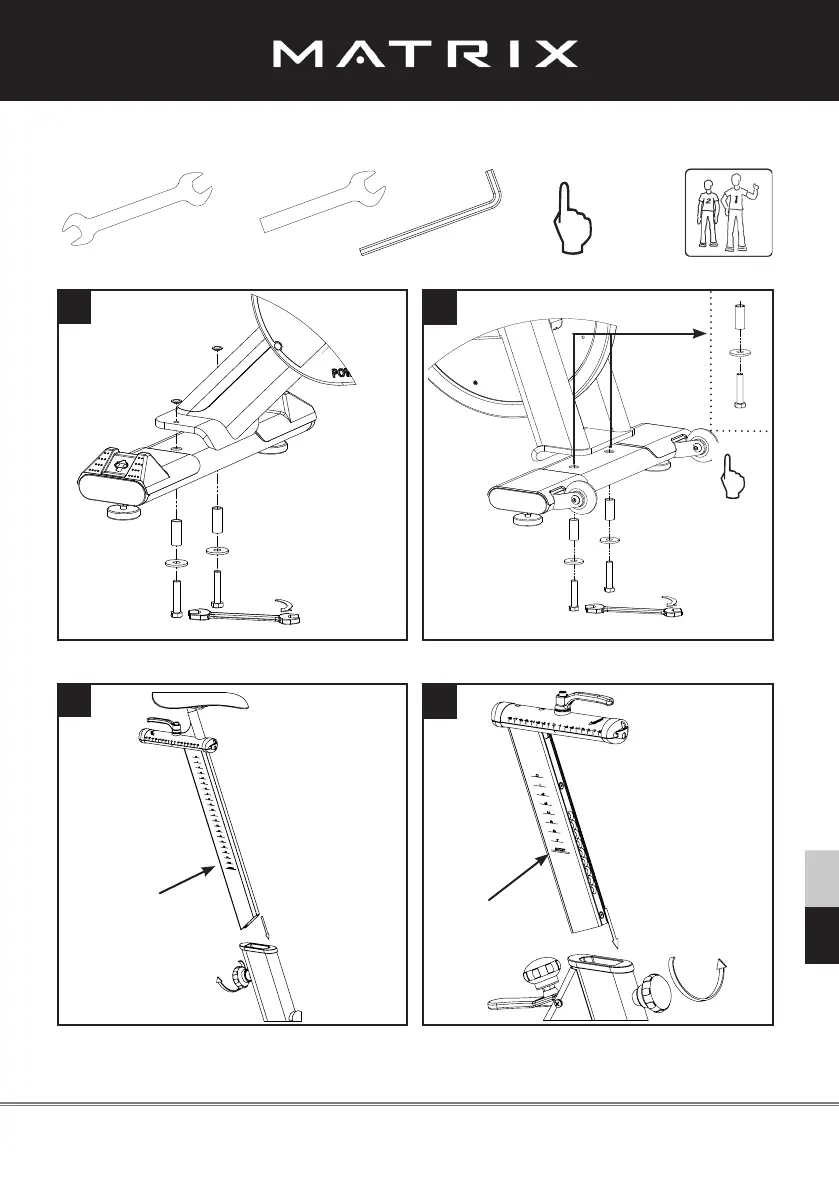

HOW TO ASSEMBLE Matrix IC3 Indoor Cycle
Version 1.0 2013 IC-MXIC3B-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 5
SW 17mm
SW 13mm
3mm
5mm
hand tight
1x
15mm Pedal
Wrench
1x
Please assure that nuts are tightened with signicant force to minimize loosening during use.
ENG ESP

1
3
2
A
A (1 : 2)
4
STOP mark
STOP mark
Seat clamp must be tightened securely from both sides to minimize loosening during use.
