CHAPTER Ⅲ PARTS REPLACMENT
Flywheel axle and bearings replacement
Chain guard exchange
Belt tension
Brake pad exchange
Flywheel bracket adjustment kit and mounting kit exchange
1) Removing the chain guards

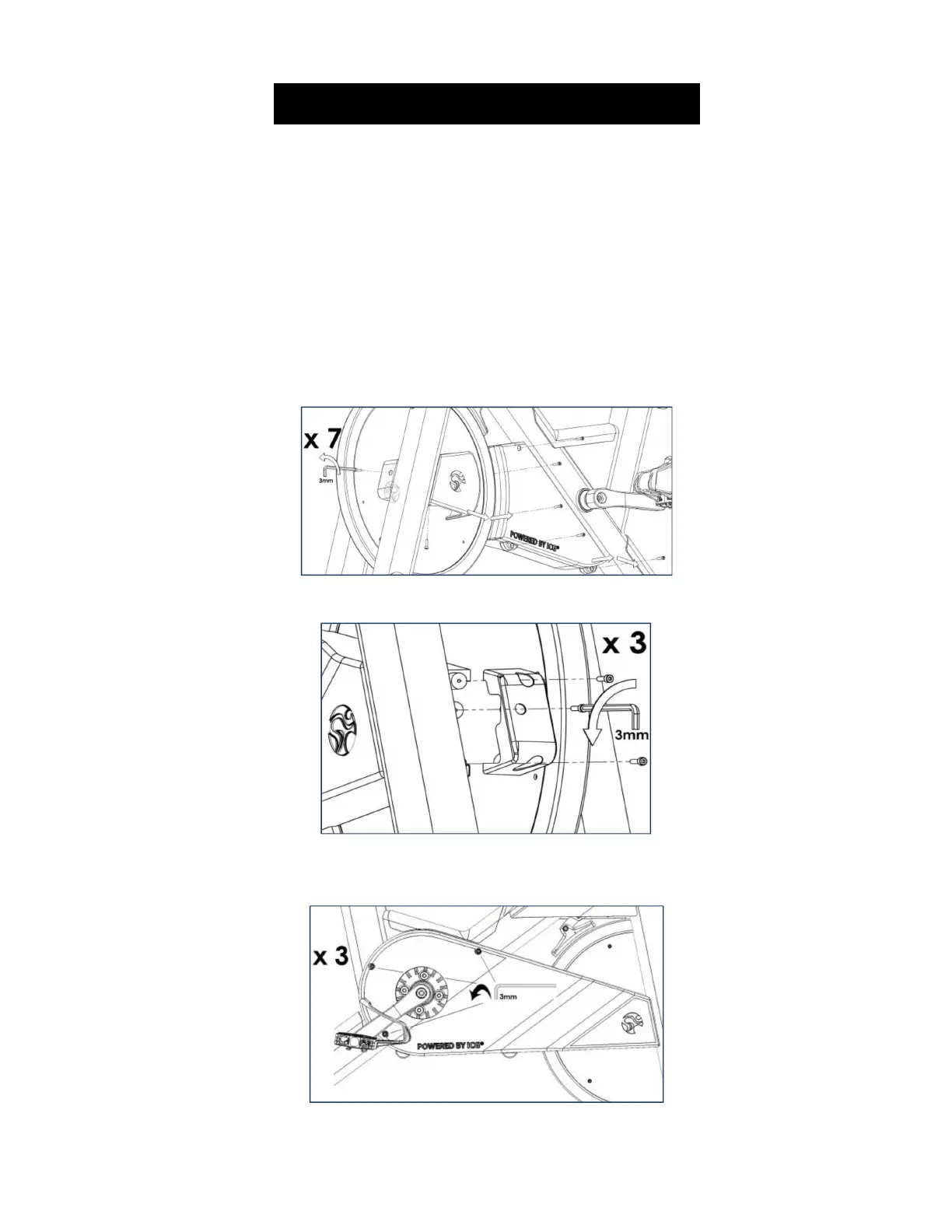

a) Unscrew the 7 M4 x 10 x 0.7P Allen bolts. The locations of the bolts are shown in the picture
below. Remove the inner chain guard and left side flywheel hub cover.
b) Remove the outer chain guard front cover by unscrewing the 3 M4 x 10 x 0.7P Allen bolts.
c) Unscrew the remaining 3 M4 x 10 x 0.7P Allen bolts of the outer chain guard and remove the
chain guard, with the right crank positioned as shown in the picture.
