Matrix IC3 - Matrix IC3 Spare Parts Identification

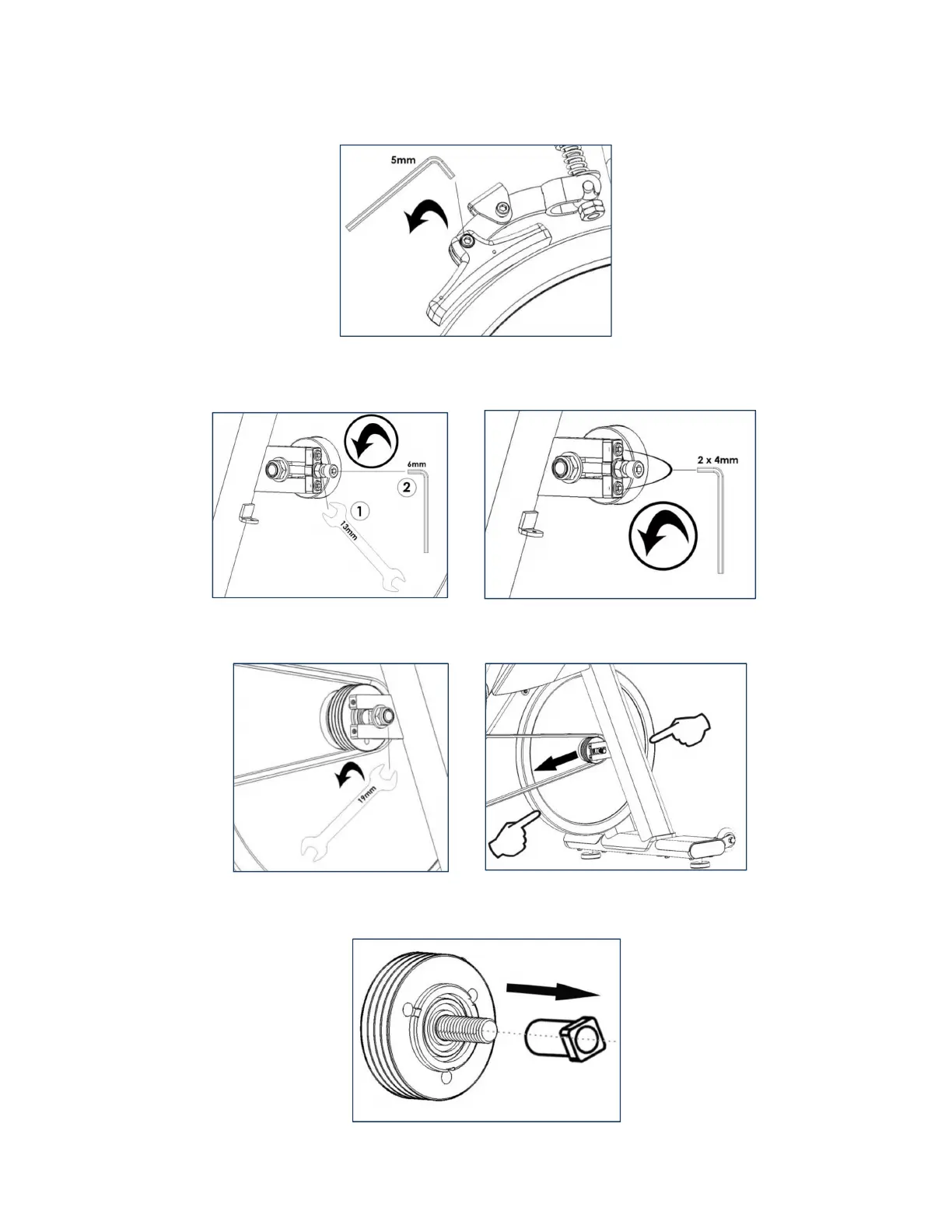

2) Remove the flywheel
a) Loosen and remove the brake pad.
b) Slightly loosen the M8 x 1.25P nut and the M8 x 50 x 1.25P Allen bolt on both sides.
c) Loosen the 2 M6 x 25 x 1.0P Allen bolts and remove the bracket on both sides.
d) Unscrew the M12 x 1.0P axle nut and washers from both sides.
e) Place your hands firmly as shown in the picture to remove the flywheel and belt.
3) Remove the Flywheel axle distance sleeve on both sides
