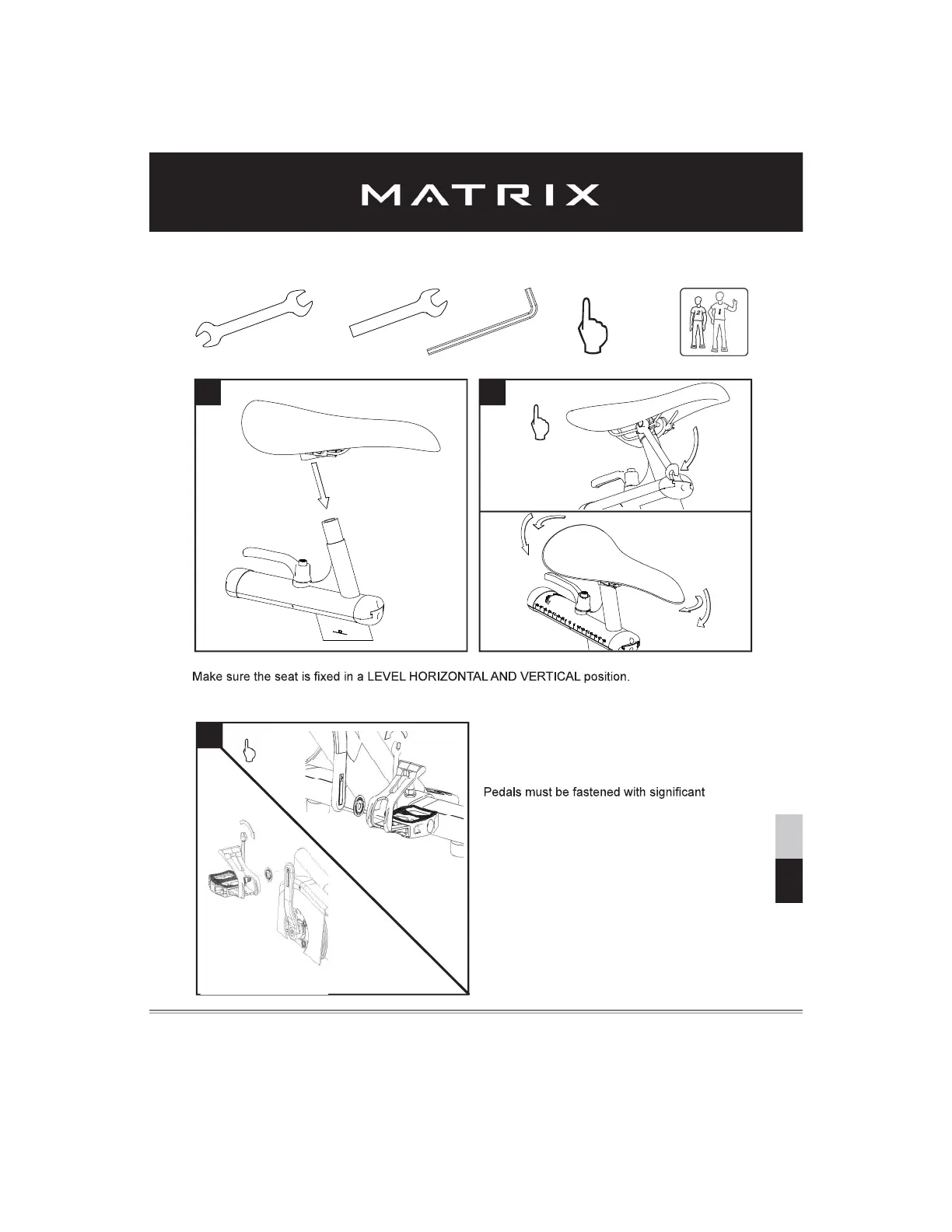

HOW TO ASSEMBLE Matrix IC3 Indoor Cycle
SW 17mm
SW 13mm
3mm
5mm
hand tight
1x
1x
Pedal marked R installed on right crank
(clockwise), Pedal marked L installed on left
crank (counterclockwise).
force to avoid loosening with use of the
indoor cycle.
15mm Pedal
Wrench
ENG ESP
8 9
10
R
L
13 mm
Seat clamp must be tightened securely from both sides to minimize loosening during use.
Please follow
instructions
