Matrix mfc501 User Manual

16
Installation And
Ventilation
This appliance must never be installed
close to heat sources, e.g. heating
elements, cookers or in damp places.
• The cooling system at the rear of the
appliance must not touch the rear wall.
• The appliance must be installed with
adequate ventilation. Ensure that
there is clearance above the appliance
to allow air to escape and that there
is space between the rear of the
appliance and the wall.

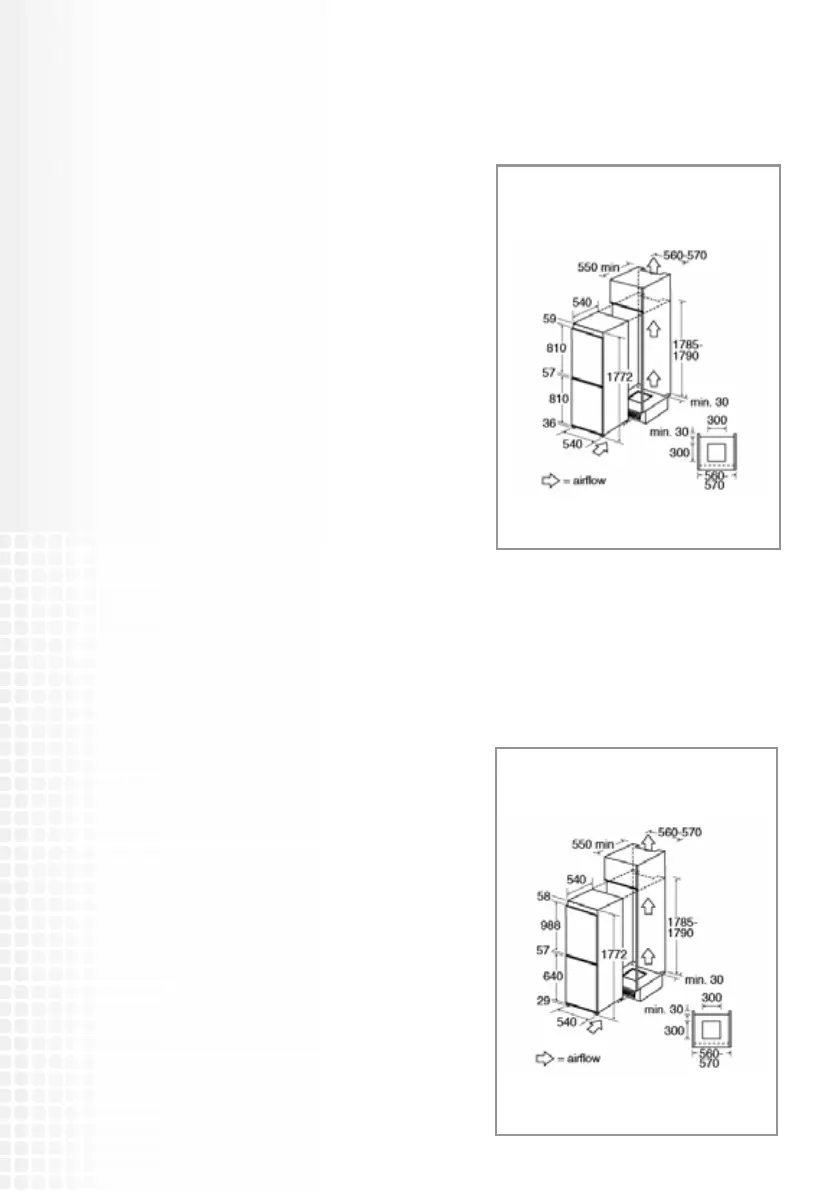

The diagram shows the ventilation
requirements for your appliance.
Failure to provide adequate ventilation
can lead to increased running costs and
premature failure and may invalidate the
guarantee provided with the appliance.
fig. 4
fig. 5
mfc501
mfc701

Matrix mfc501 Specifications

General

Child lock	No
Door hinge	Right
Product color	White
Reversible doors	Yes
Shelves material	Tempered glass
Appliance placement	Freestanding
Refrigerating medium	R600a
Noise level	41 dB
Climate class	N-ST
Holiday function	-
Total net capacity	228 L
Fridge net capacity	147 L
Number of vegetable drawers	2
Fridge number of shelves/baskets	3
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	4.5 kg/24h
Freezer net capacity	81 L
Freezer number of shelves/baskets	4
Storage time during power failure	12 h
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Annual energy consumption	274 kWh

Weight and Dimensions

Width	- mm
