Matrix R1x - U1 x Assembly Steps (Part 2)

11
4.3 ASSEMBLY STEPS U1x

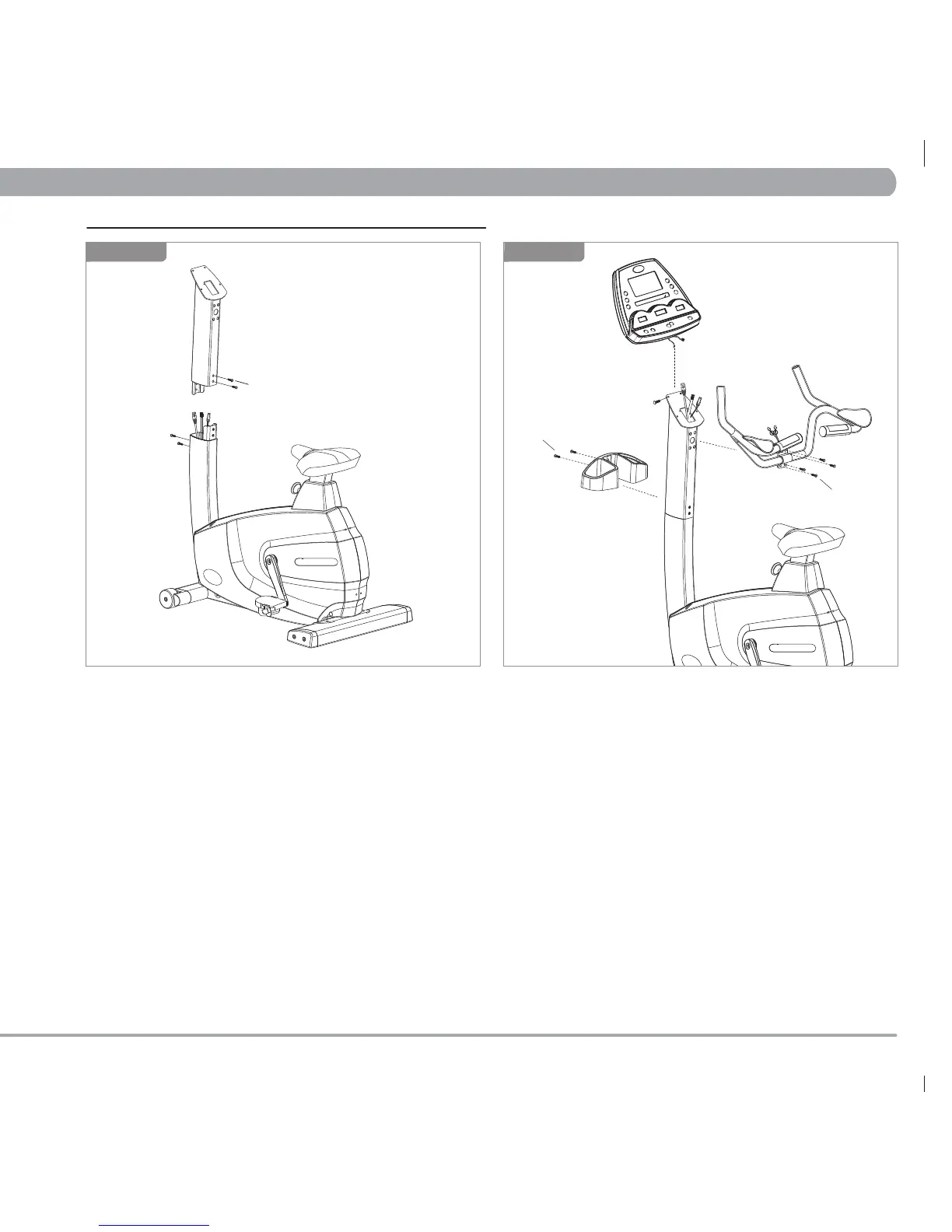

1) Secure the upper console mast to the lower console mast using four bolts
(Z01). Alternately tighten each bolt using the #6 Allen Wrench. Check the
console mast to make sure it is securely fastened.
Z01
Z01
Z08
Z01
STEP 3
HANDLEBAR SET
1) Feed the heart rate wires of the handlebar through the small hole located
in the front of the console mast. Pull these wires up through the hole at
the top of the console mast. Attach the handlebar to the console mast
using four bolts (Z01). Tighten with the #6 Allen Wrench (Z31).
CONSOLE
1) Remove the four mounting bolts from the back of the console with the
Phillips Screwdriver (Z33). Plug in the wire harness and the two heart rate
wires to the back of the console. Attach the console to the console mast
with the four bolts removed earlier in this step.
ACCESSORY TRAY
1) Attach the accessory tray to the console mast using two screws (Z08).
Tighten them with the Phillips Screwdriver (Z33).
Z01
Z01
Z08
Z01
STEP 4
CHAPTER 4: Bike parts and assembly Guides
