4.6 ASSEMBLY STEPS R1x
CHAPTER 4: Bike parts and assembly Guides

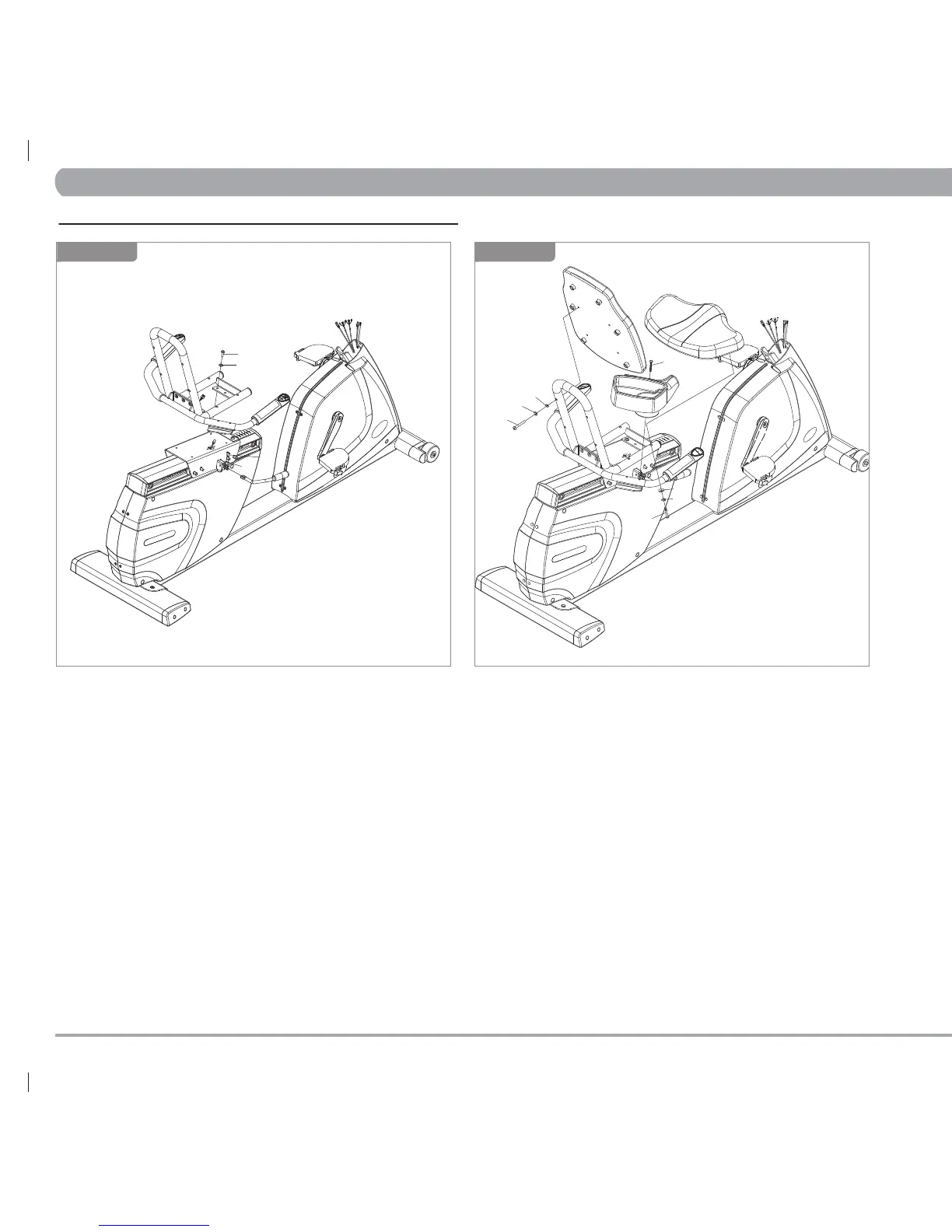

1) Install the seat rail on the seat adjustment bracket using the four washers
(Z10) and screws (Z09). Tighten them with the #5 Allen Wrench (Z32).
2) Connect the wire harness from the seat handlebar to the wire harness
coming from the seat frame.
3) Slide the seat adjustment handle between the teeth of the seat adjustment
bracket.
Z09
Z10
Z11
Z12
Z02
Z01
Z03
Z13
Z03
Z01
Z02
STEP 3
ACCESSORY
1) Secure the accessory tray to the seat handlebar with two button-head
screws (Z13). Be careful when inserting the bolts to clear the wires
inside the handlebar to prevent damage. Tighten with the Philips
screwdriver (Z34).
SEAT AND SEATBACK
1) Mount the seat to the seat frame with four arc washers (Z02), spring
washers (Z01) and socket button-head screws (Z03). Tighten with the #5
Allen Wrench (Z32). Mount the seatback to the seat frame with four arc
washers (Z02), spring washers (Z01) and socket button-head screws (Z03).
Tighten with the #5 Allen Wrench (Z32).
Z09
Z10
Z11
Z12
Z02
Z01
Z03
Z13
Z03
Z01
Z02
STEP 4
