Matrix ROWER-02 - Page 6

6

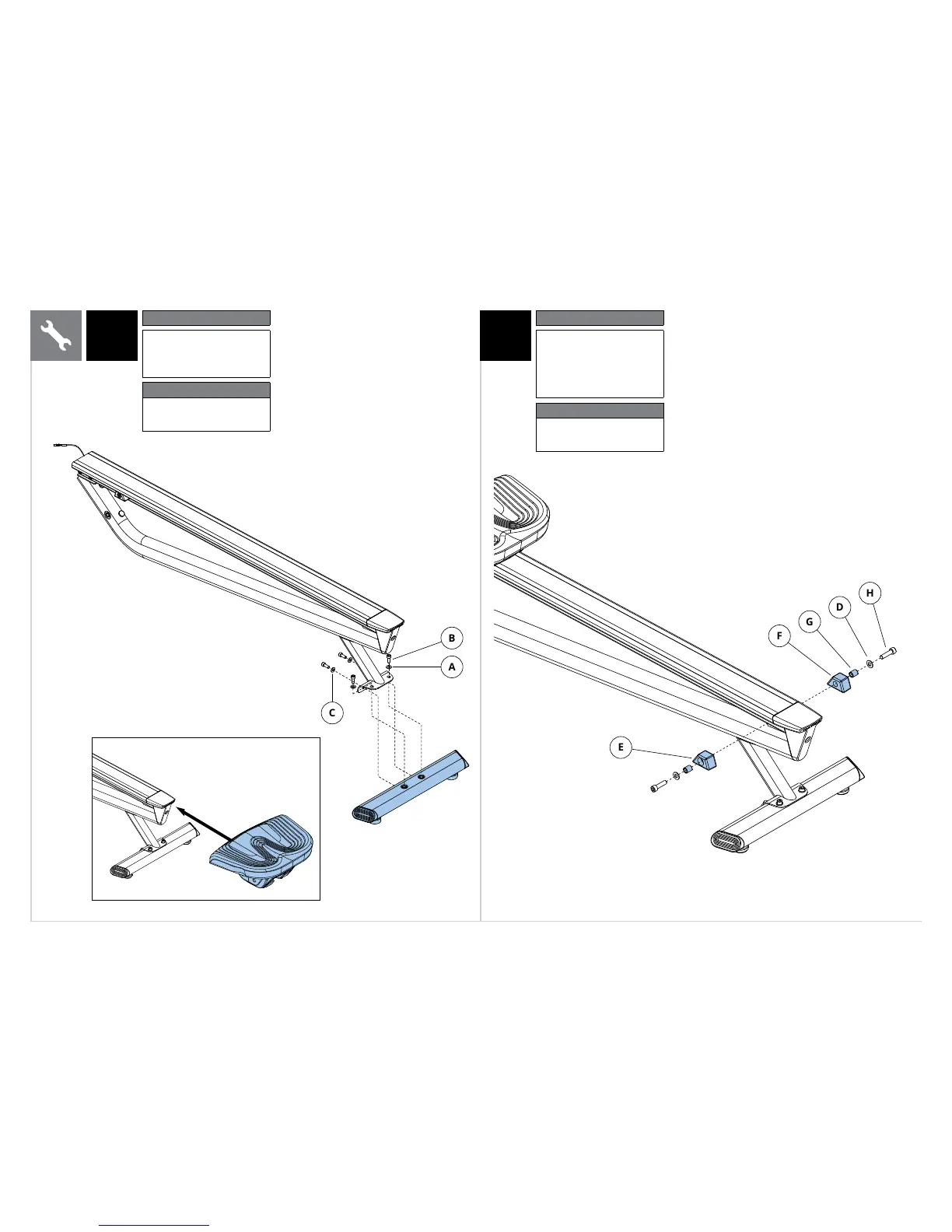

1 2
A
B
C
E
F
G
D
H
Orange Hardware Pack
Description Qty
A
B
C
Flat Washer
Bolt
Arc Washer
2
4
2
Note:
Tighten hardware from step 1
using the Torque Value:
24.5 Nm / 18 ft-lb
Pre-installed Hardware
Description Qty
D
E
F
G
H
Flat Washer
Stopper Left
Stopper Right
Bushing
Bolt
2
1
1
2
2
Note:
Tighten hardware from step 2
using the Torque Value:
24.5 Nm / 18 ft-lb
