CONSOLE SCREW

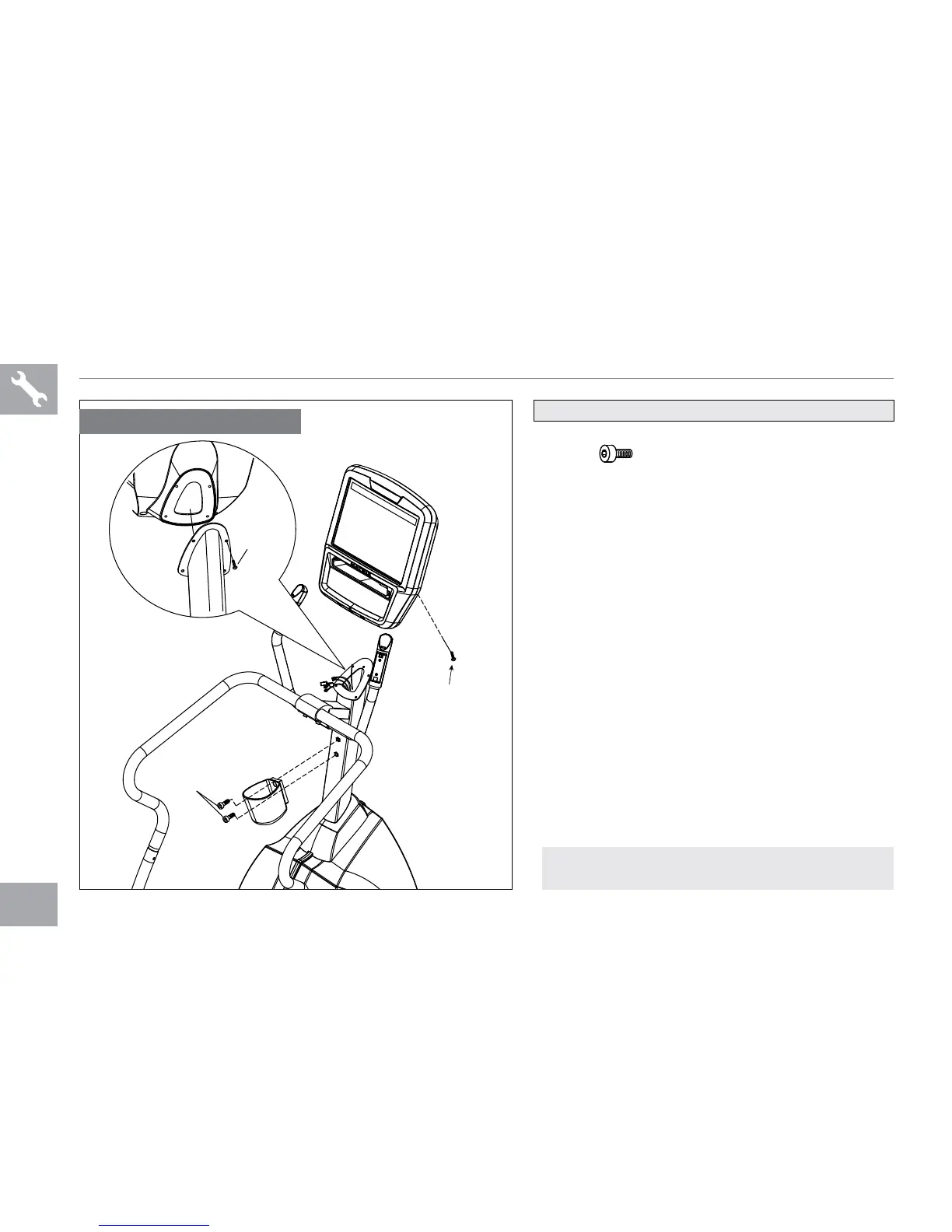

S3X ASSEMBLY STEP 4
A Open BLUE HARDWARE BAG.
B Carefully pull the CONSOLE CABLE through
the CONSOLE MAST using the twist tie
located inside the CONSOLE MAST.
C Attach CONSOLE MAST to MAIN FRAME
using PRE-INSTALLED BOLTS AND
WASHERS.
D Slide WAVY WASHER (L) over CRANK
followed by PEDAL ARM as shown. Rest
PEDAL ARM WHEEL on GUIDE RAIL.
E Attach the PEDAL ARM to the CRANK using
1 FLAT WASHER (K), 1 SPRING WASHER
(B) and 1 BOLT (M).
F Repeat steps D–E on the opposite side of the
stepper.
Z34 SOCKET HEAD BOLT(M8x25L) Qty: 2
BLUE HARDWARE BAG CONTENTS :
S3x ASSEMBLY COMPLETE!
3X CONSOLE ASSEMBLY
To Next Page
