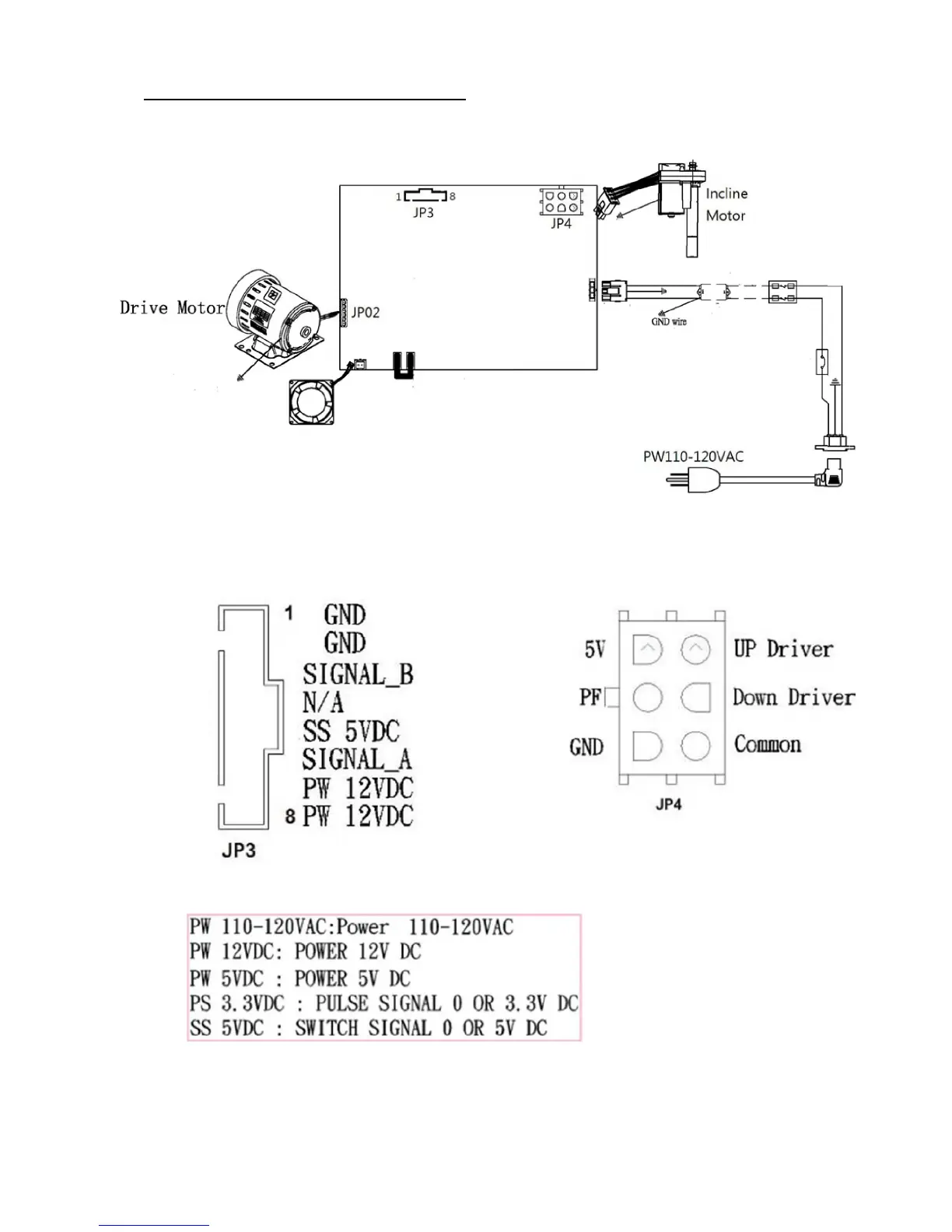

2. MCB ELECTRICAL DIAGRAM---T70/T75
Fig-1 MCB TO CONSOLE IN LAYOUT Fig -2 MCB TO INCLINE PIN LAYOUT
Fig-3 The PIN VOLTA GE INFOR MATION
