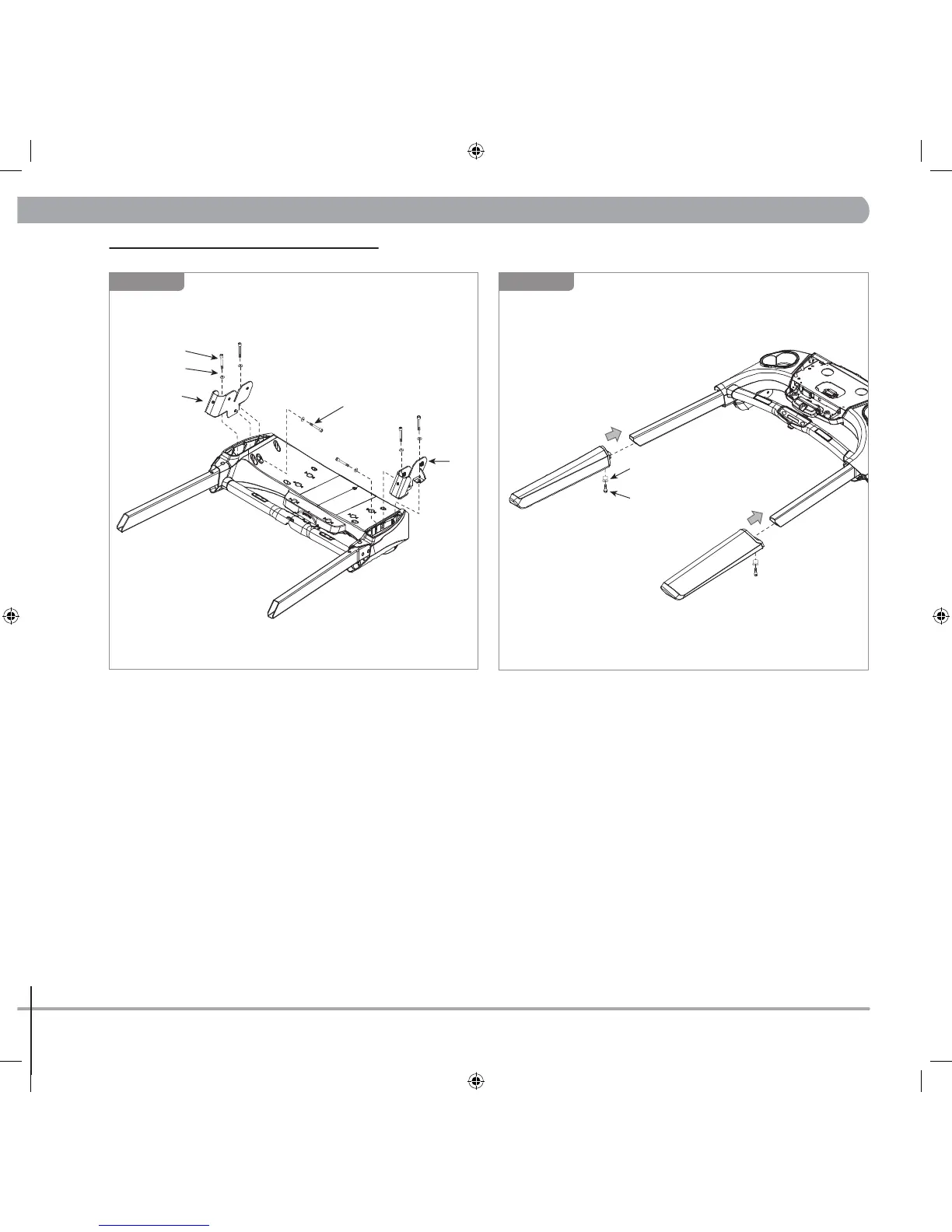

Open Blue Assembly Bag. Slide the urethane arms over the steel tubes on the
console base. Fasten the urethane arms to the steel tubes using item
17-socket head cap screw and item 19-spacer.
Open White Assembly Bag. Assemble the left and right bracket-items 20 and
21 to the console base using item 12-socket head cap screw, item
14-flat washer and item 11-socket head cap screw.
Assembly tip: It is much easier to accomplish this task if the console base is
left inside it’s shipping container.
14
21
12
20
19
17
11
STEP 3
14
21
12
20
19
17
11
STEP 4
5.3 T5x, T7x, T7xe MODEL ASSEMBLY STEPS
CHAPTER 6: T5x, T7x, T7xe Treadmill specifications, parts, and assembly Guides
