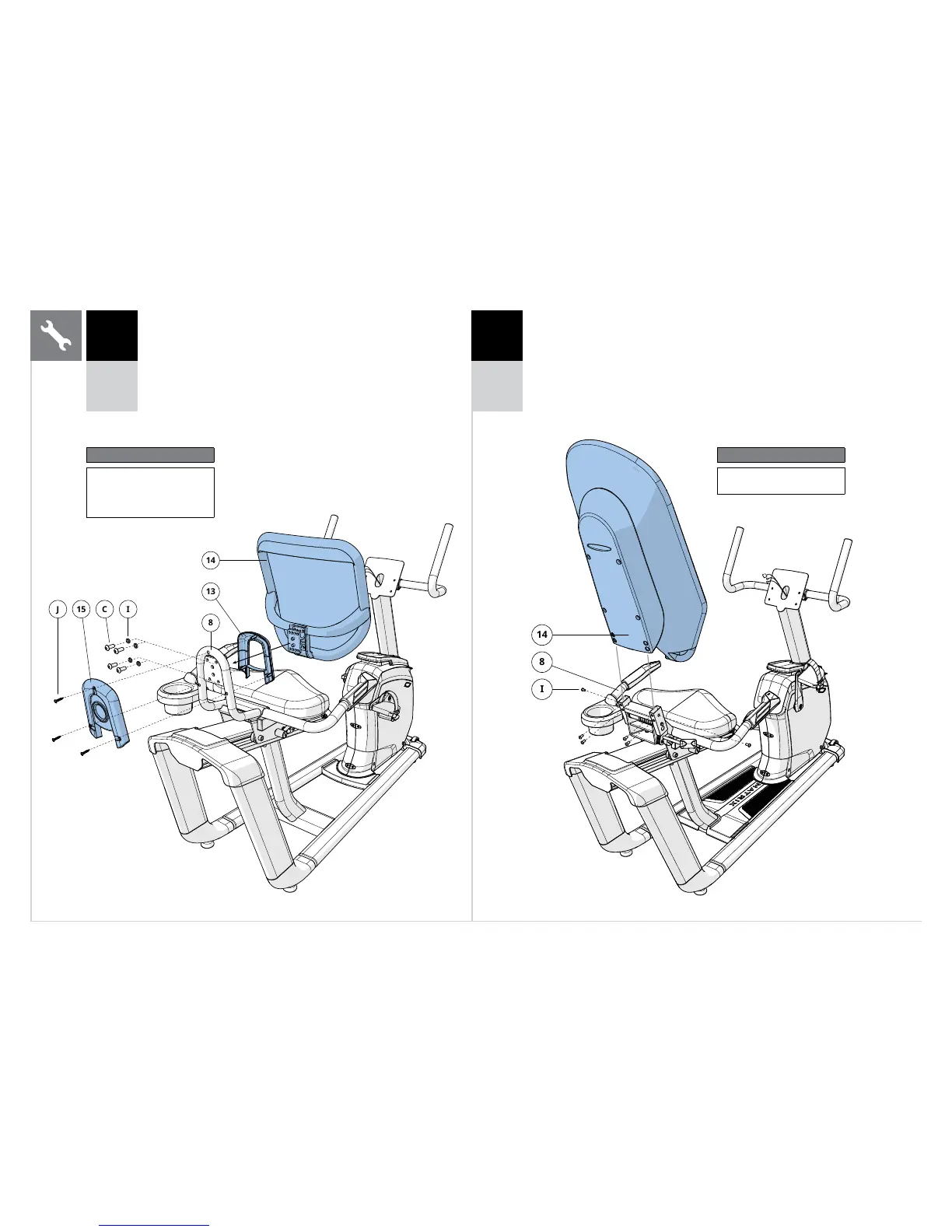

NOTE: This step is for R30 models only.
A Open HARDWARE FOR STEP 5.
B Place the INSIDE COVER (13) over the MESH SEAT BACK
(14) and mount the MESH SEAT BACK (14) to the SEAT
FRAME ASSEMBLY (8) with 4 BOLTS (C) and 4 SPRING
WASHERS (I). Torque settings: 23.1 Nm / 17 lb-ft.
C Attach the OUTSIDE COVER (15) to the SEAT FRAME (8) and
INSIDE COVER (13) with 3 SCREWS (J).
5 5
Hardware For Step 5
Description Qty
C Bolt 4
I Spring Washer 4
J Screw 3
Hardware For Step 5
Description Qty
I Bolt 6
R30 R50
NOTE: This step is for R50 models only.
A Open HARDWARE FOR STEP 5.
B Attach the MESH SEAT BACK (14) to the SEAT
FRAME ASSEMBLY (8) using 6 BOLTS (I). Torque
settings: 9.5 Nm / 7 lb-ft.
ENGLISH
To Next Page
