Matrix U30 Manual

96
9
B
7
C
4
10
6
3
U30
U50
Hardware For Step 3
Description Qty
B
C
Bolt
Screw
8
4
13
9
12
11
13
E
14
F
11
D
4
U30
U50
Hardware For Step 4
Description Qty
D
E
F
Bolt (20mm)
Nut
Bolt (12mm)
4
4
4
ENGLISH

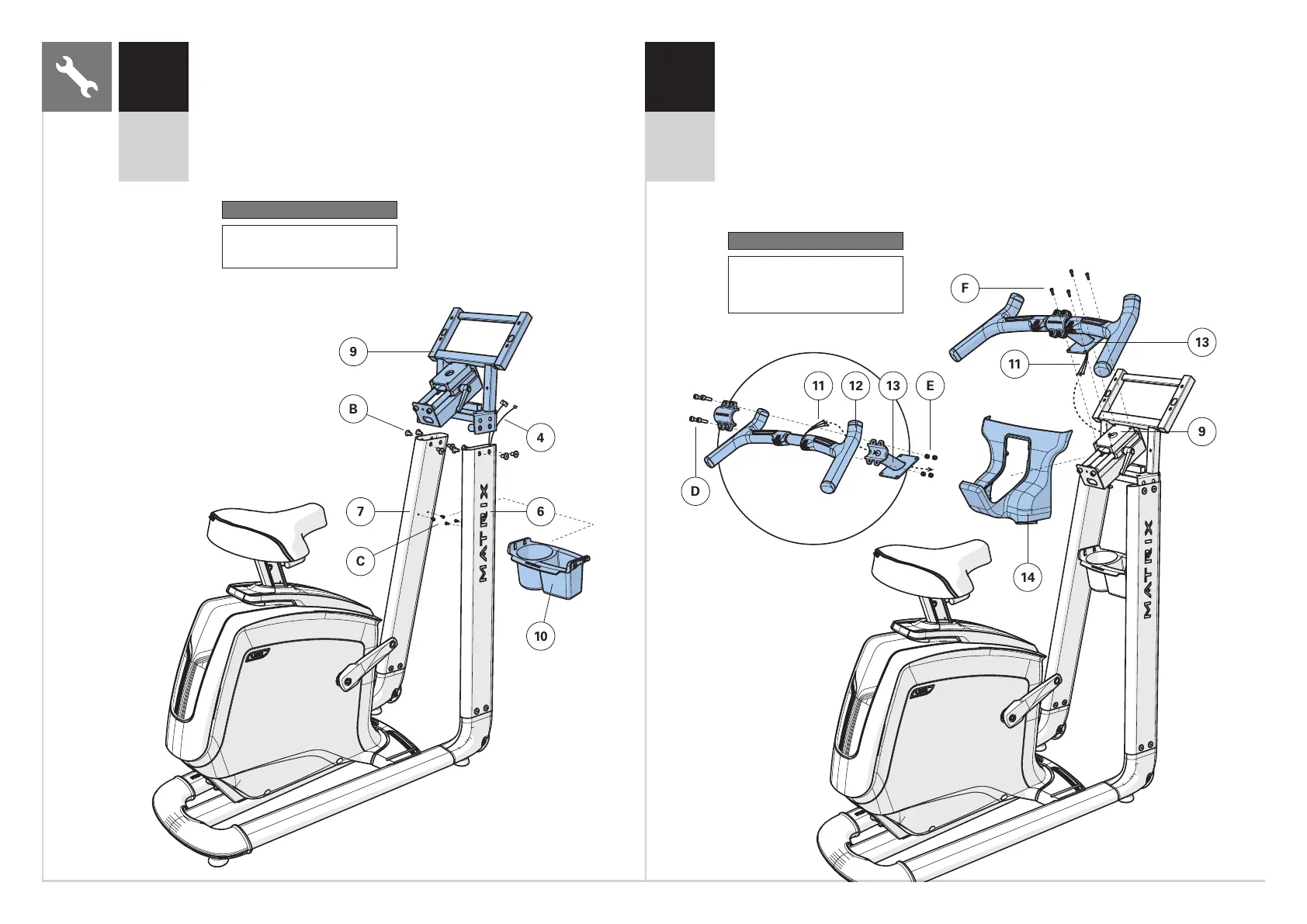

A Open HARDWARE FOR STEP 3.
B Carefully feed the CABLES (4) under the CONSOLE BRIDGE (9).
C Attach CONSOLE BRIDGE (9) to the CONSOLE MASTS (6 & 7)
using 8 BOLTS (B). Torque settings: 23.1 Nm / 17 lb-ft.
D Attach the WATER BOTTLE HOLDER (10) to the CONSOLE
MASTS (6 & 7) using 4 SCREWS (C).
A Open HARDWARE FOR STEP 4.
B Carefully feed the CABLES (11) through the HANDLEBAR BRACKET (13).
C Attach the HANDLEBAR (12) to the HANDLEBAR BRACKET (13) using 4
BOLTS (D) and 4 NUTS (E).
D Snap CONSOLE BRIDGE COVER (14) into position.
E Carefully feed the CABLES (11) through the CONSOLE BRIDGE (9).
F Attach the HANDLEBAR BRACKET (13) to the CONSOLE BRIDGE (9)
using 4 BOLTS (F).
