Matrix U3x

34
7
6
8
2
D
E

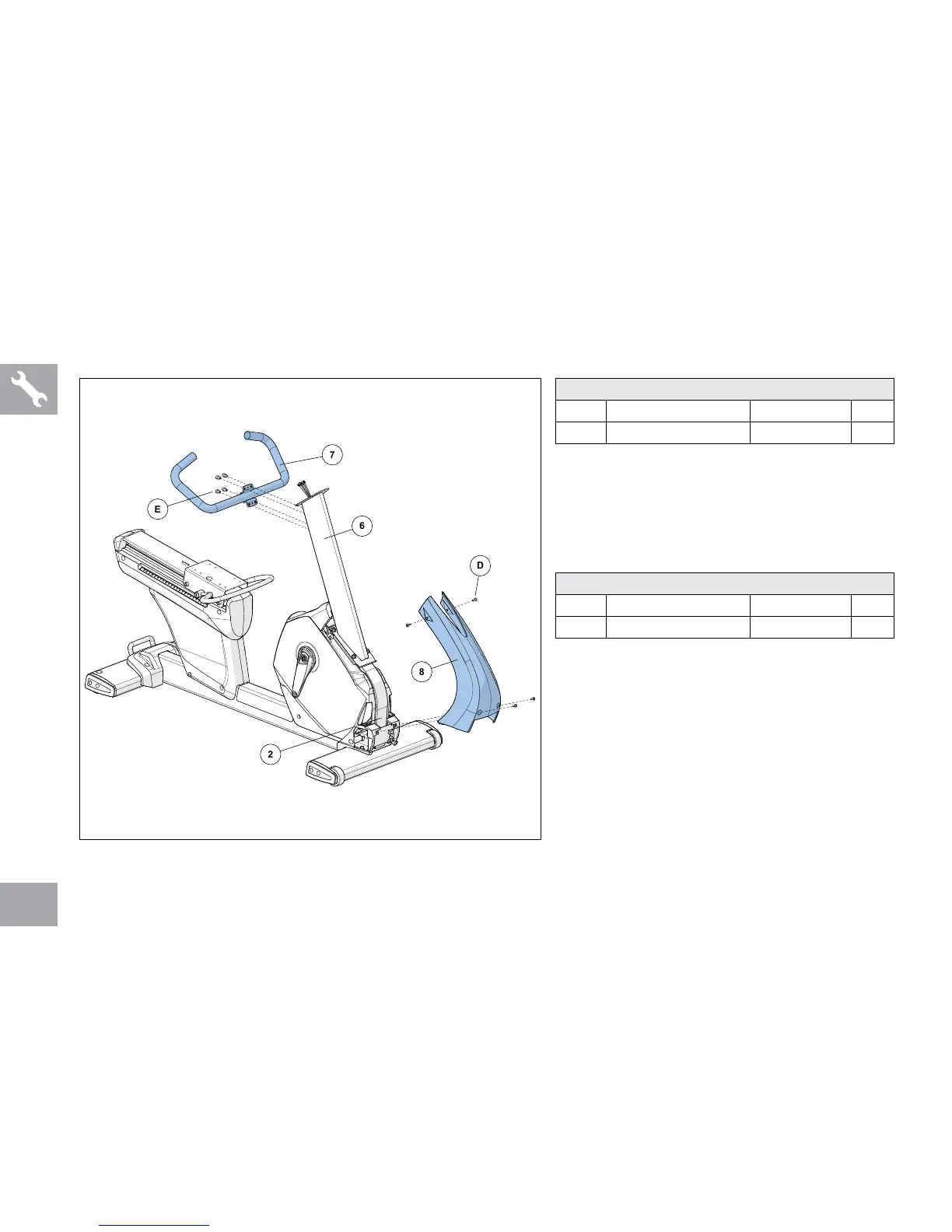

RECUMBENT ASSEMBLY STEP 3
A Open WHITE HARDWARE BAG.
B Attach the CONSOLE HANDLEBARS (7)
to the CONSOLE MAST (6) using 4 BOLTS
(G).
WHITE HARDWARE BAG
PART TYPE DESCRIPTION QTY
G SOCKET HEAD BOLT M8X20L 4
GREEN HARDWARE BAG
PART TYPE DESCRIPTION QTY
D PHILLIPS HEAD BOLT M5X12L 4
C Open GREEN HARDWARE BAG.
D Attach the FRONT SHROUD COVER (8) to
the MAIN FRAME (2) using 4 BOLTS (D).
