Matrix U50 Manual

91
E
F
9
D
10
11
8
3 4
R30
R50
R30
R50
Hardware For Step 3
Description Qty
D Screw 2
E Bolt 4
F Spring Washer 4
12
9
H
G
Hardware For Step 4
Description Qty
G Bolt 4
H Spring Washer 4
R50 SHOWN
ENGLISH
Note: Be careful not to pinch any wires while attaching the seat frame.

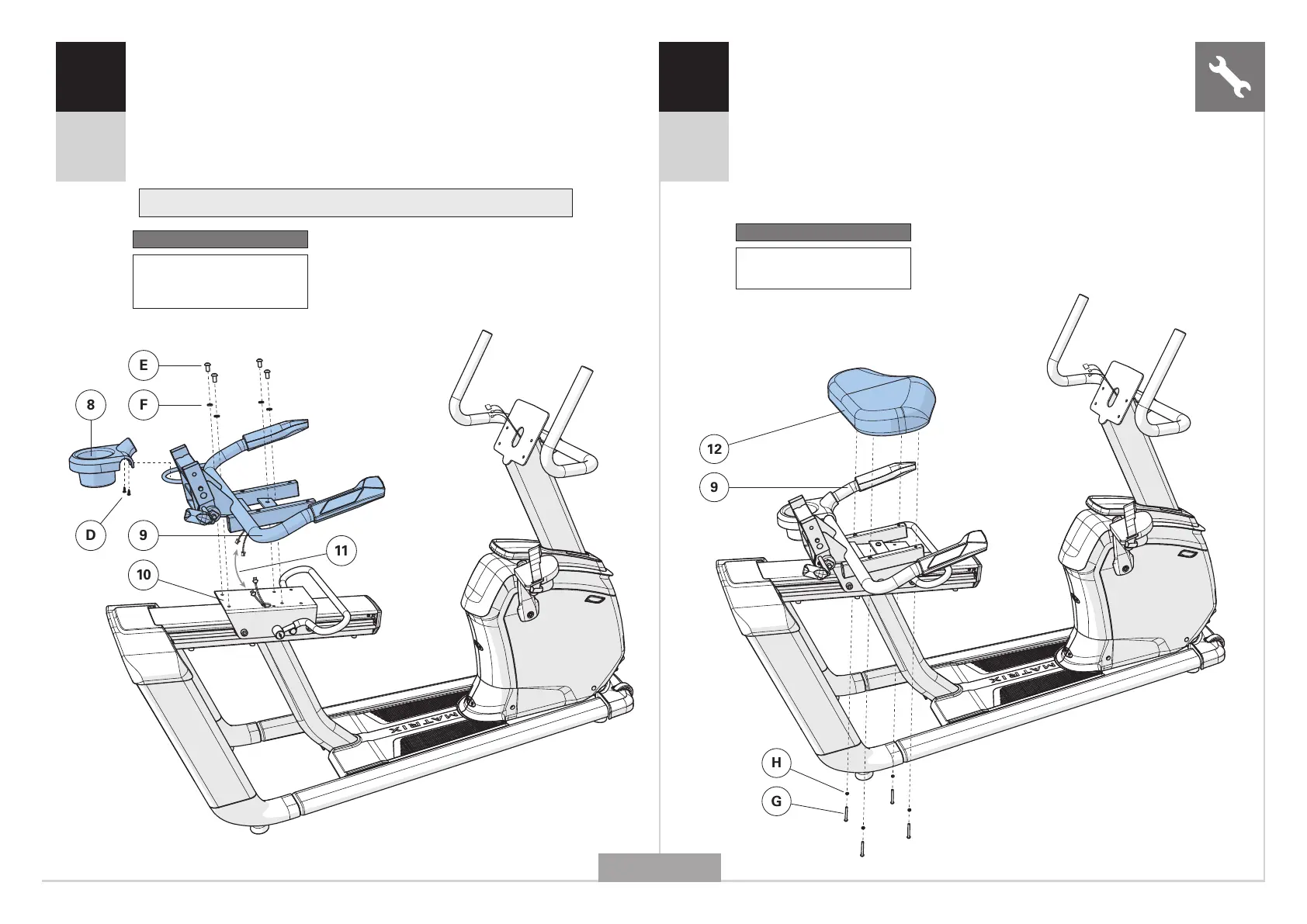

A Open HARDWARE FOR STEP 3
B Attach the WATER BOTTLE HOLDER (8) to the SEAT FRAME
ASSEMBLY (9) using 2 SCREWS (D).
C Attach the SEAT FRAME ASSEMBLY (9) to the SEAT SLIDE
(10) using 4 BOLTS (E) and 4 SPRING WASHERS (F). Torque
settings: 23.1 Nm / 17 lb-ft.
D Connect the CABLES (11).
A Open HARDWARE FOR STEP 4
B Attach the SEAT BOTTOM (12) to the SEAT FRAME ASSEMBLY
(9) using 4 BOLTS (G) and 4 SPRING WASHERS (H). Torque
settings: 9.5 Nm / 7 lb-ft.

Matrix U50 Specifications

General

Brand	Matrix
Model	U50
Category	Exercise Bike
Language	English
