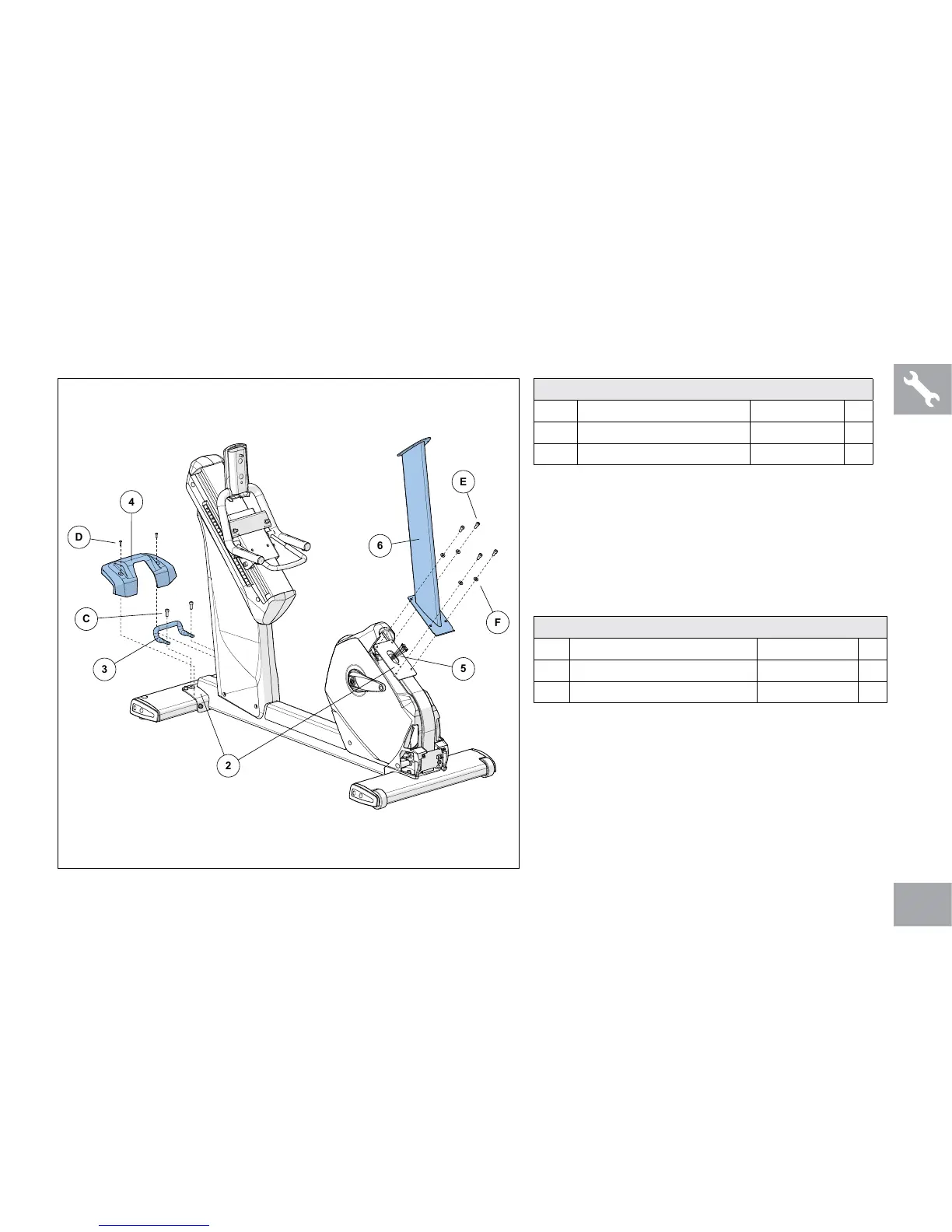

HYBRID ASSEMBLY STEP 2

A Open BLACK HARDWARE BAG.

B Attach the REAR FRAME HANDLE (3) to the

MAIN FRAME (2) using 2 BOLTS (C).

C Attach the REAR FRAME COVER (4) to the

MAIN FRAME (2) using 2 BOLTS (D).

BLACK HARDWARE BAG

PART TYPE DESCRIPTION QTY

C SOCKET HEAD BOLT (BLACK) M8X20L 2

D PHIILIP HEAD BOLT M5X12L 2

RED HARDWARE BAG

PART TYPE DESCRIPTION QTY

E SOCKET HEAD BOLT (CHROME) M8X20L 4

F TOOTH WASHER Φ8.5XΦ18.0X2.0T 4

A Open RED HARDWARE BAG.

B Carefully pull the CONSOLE CABLES (5)

through the CONSOLE MAST (6) using the

twist tie located inside the CONSOLE MAST

(6).

C Attach CONSOLE MAST (6) to MAIN

FRAME (2) using 4 BOLTS (E) and 4 TOOTH

WASHERS (F).
