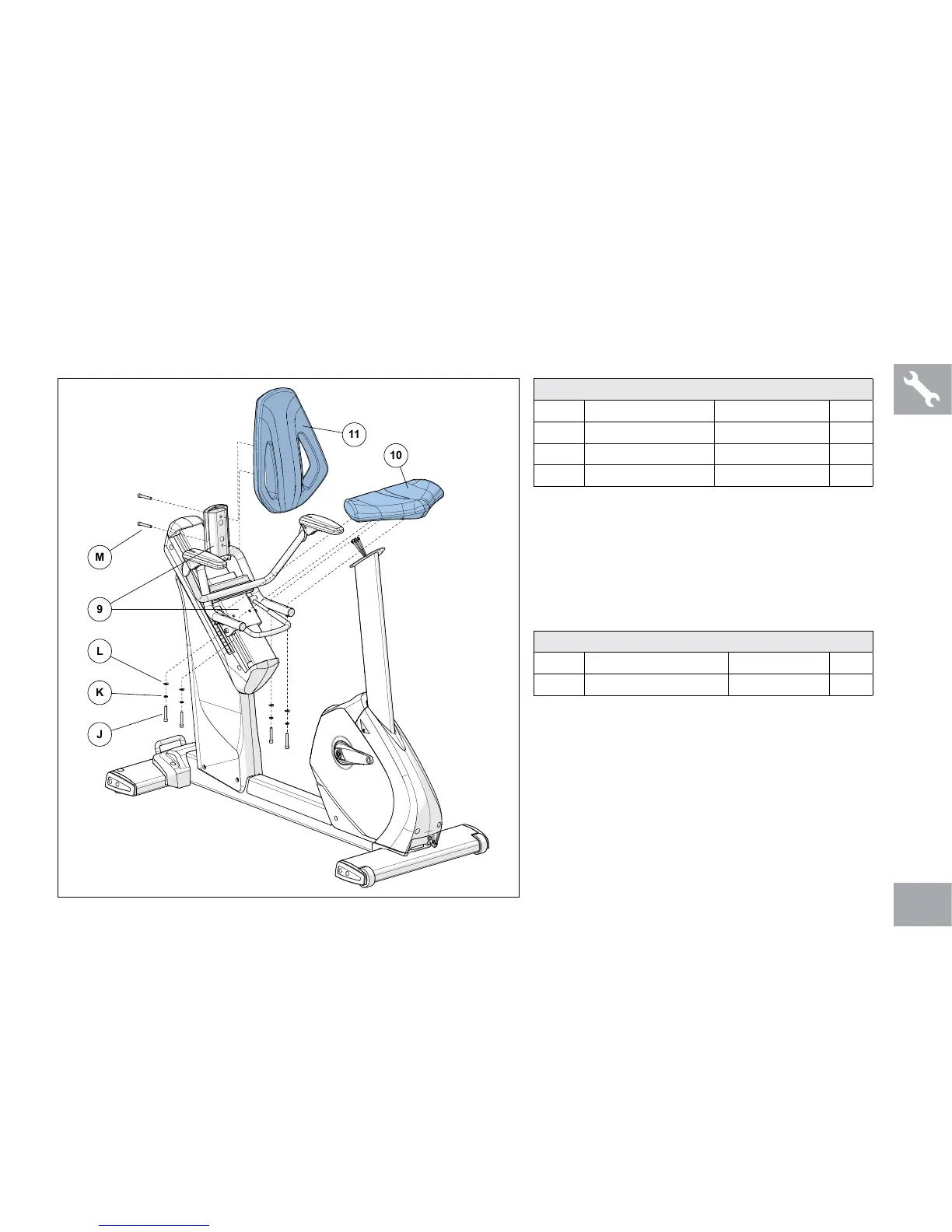

HYBRID ASSEMBLY STEP 4

A Open PURPLE HARDWARE BAG.

Attach the SEAT BASE (10) to the SEAT

FRAME (9) using 4 BOLTS (J), 4 SPRING

WASHERS (K) and 4 WAVE WASHERS (L).

PURPLE HARDWARE BAG

PART TYPE DESCRIPTION QTY

J SOCKET HEAD BOLT M8X50L 4

K SPRING WASHER Φ8.2XΦ13.5.0X2.0T 4

L WAVE WASHER Φ8.2XΦ18.0X1.5T 4

ORANGE HARDWARE BAG

PART TYPE DESCRIPTION QTY

M SOCKET HEAD BOLT M8X60L 2

A Open ORANGE HARDWARE BAG.

B Attach the SEAT BACK (11) to the SEAT

FRAME (9) using 2 BOLTS (M).
