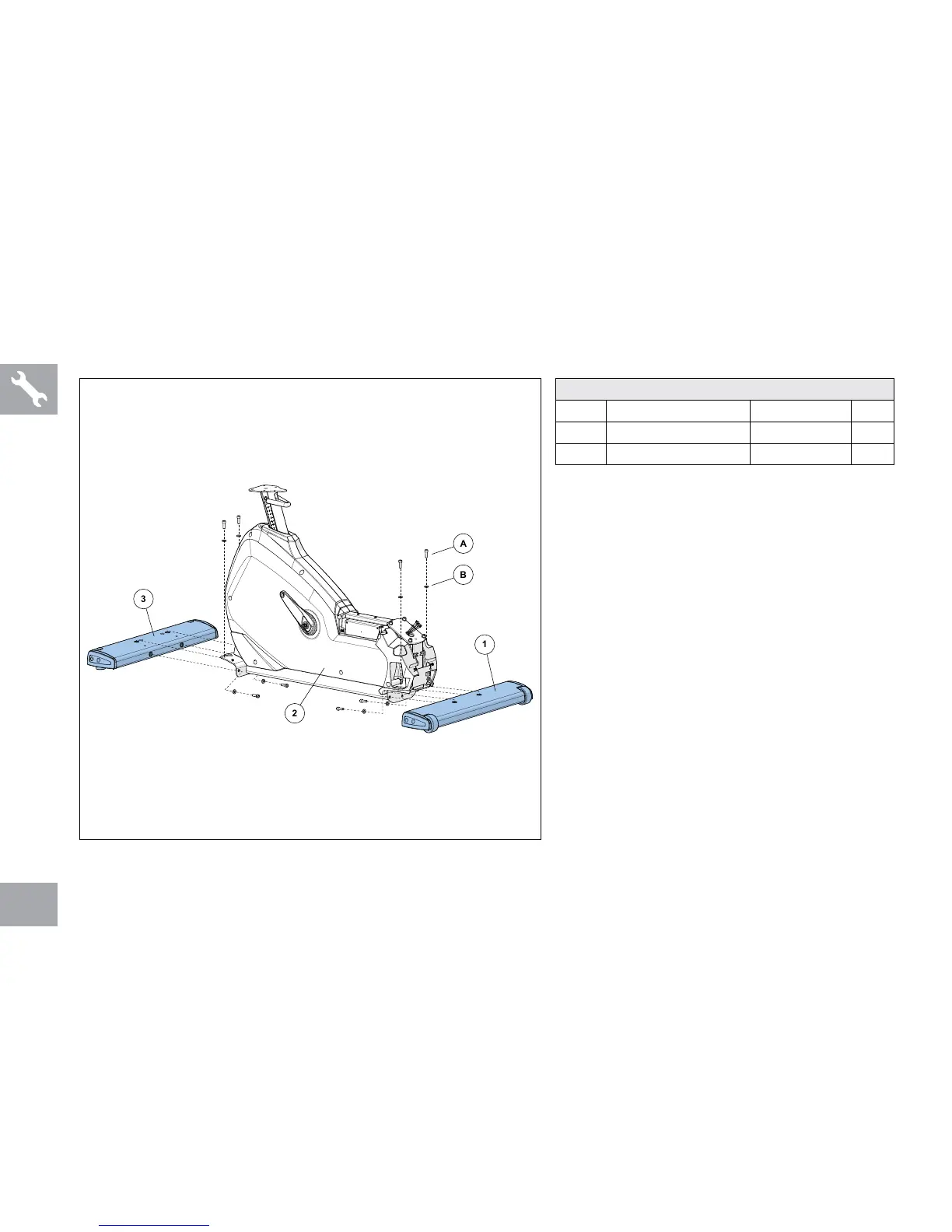

UPRIGHT ASSEMBLY STEP 1
A Open YELLOW HARDWARE BAG.
B Attach the FRONT STABILIZER TUBE
(1) to the MAIN FRAME (2) using 4
BOLTS (A) and 4 FLAT WASHERS (B).
C Attach the REAR STABILIZER TUBE (3)
to the MAIN FRAME (2) using 4 BOLTS
(A) and 4 FLAT WASHERS (B).
YELLOW HARDWARE BAG
PART TYPE DESCRIPTION QTY
A SOCKET HEAD BOLT M8X25L 8
B FLAT WASHER Φ8.2XΦ16.0X2.0T 8
