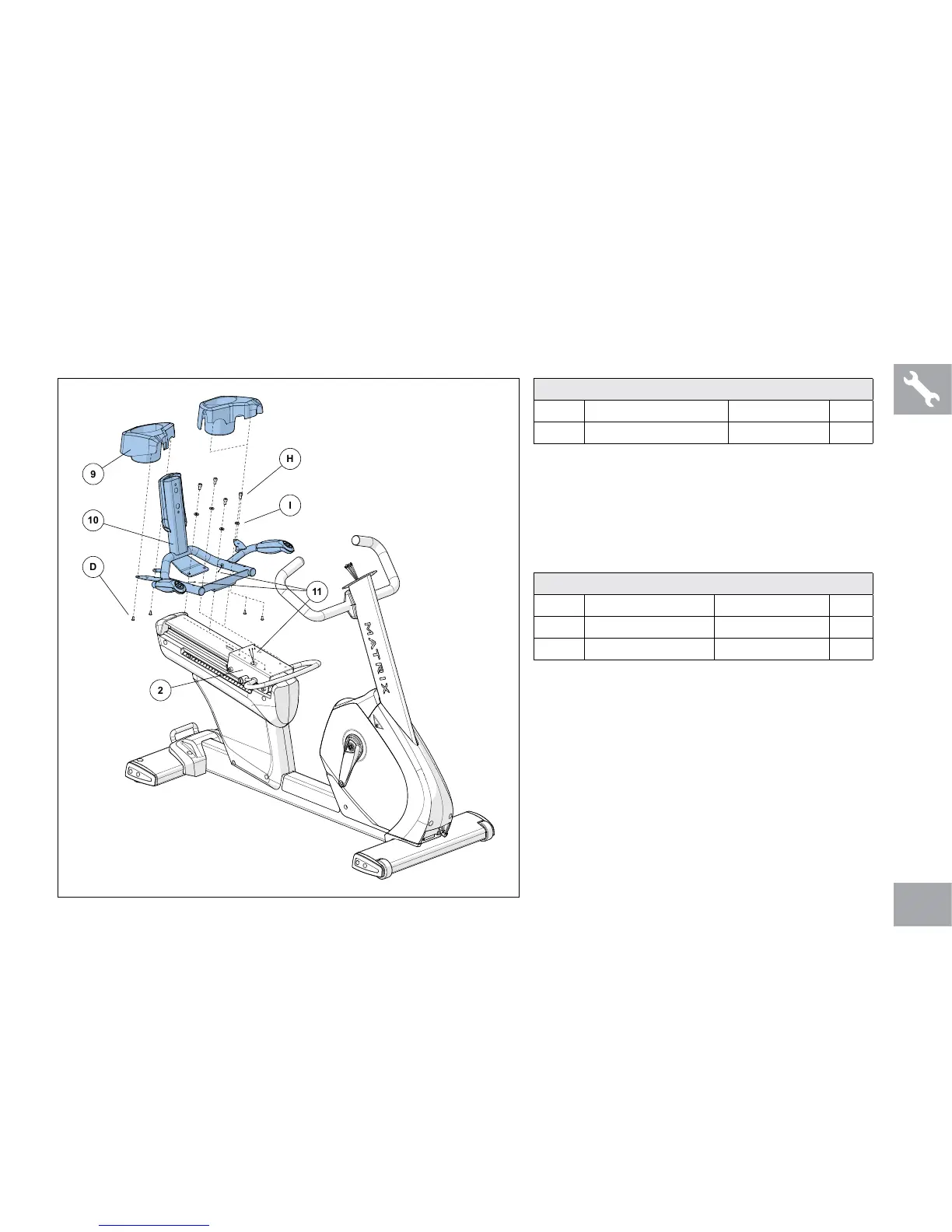

RECUMBENT ASSEMBLY STEP 4
A Open PINK HARDWARE BAG.
B
Attach the WATER BOTTLE HOLDERS (9)
to the SEAT FRAME (10) using 4 BOLTS
(D).
BLUE HARDWARE BAG
PART TYPE DESCRIPTION QTY
H SOCKET HEAD BOLT M8X15L 4
I SPRING WASHER Φ8.2XΦ15.4X2.0T 4
PINK HARDWARE BAG
PART TYPE DESCRIPTION QTY
D PHILLIPS HEAD BOLT M5X12L 4
C Open BLUE HARDWARE BAG.
D Carefully pull the PULSE GRIP CABLES
(11) through the MAIN FRAME (2) using
the twist tie located inside the SEAT
FRAME (10).
E Attach the SEAT FRAME (10) to the MAIN
FRAME (2) using 4 BOLTS (H) and 4
SPRING WASHERS (I).
To Next Page
