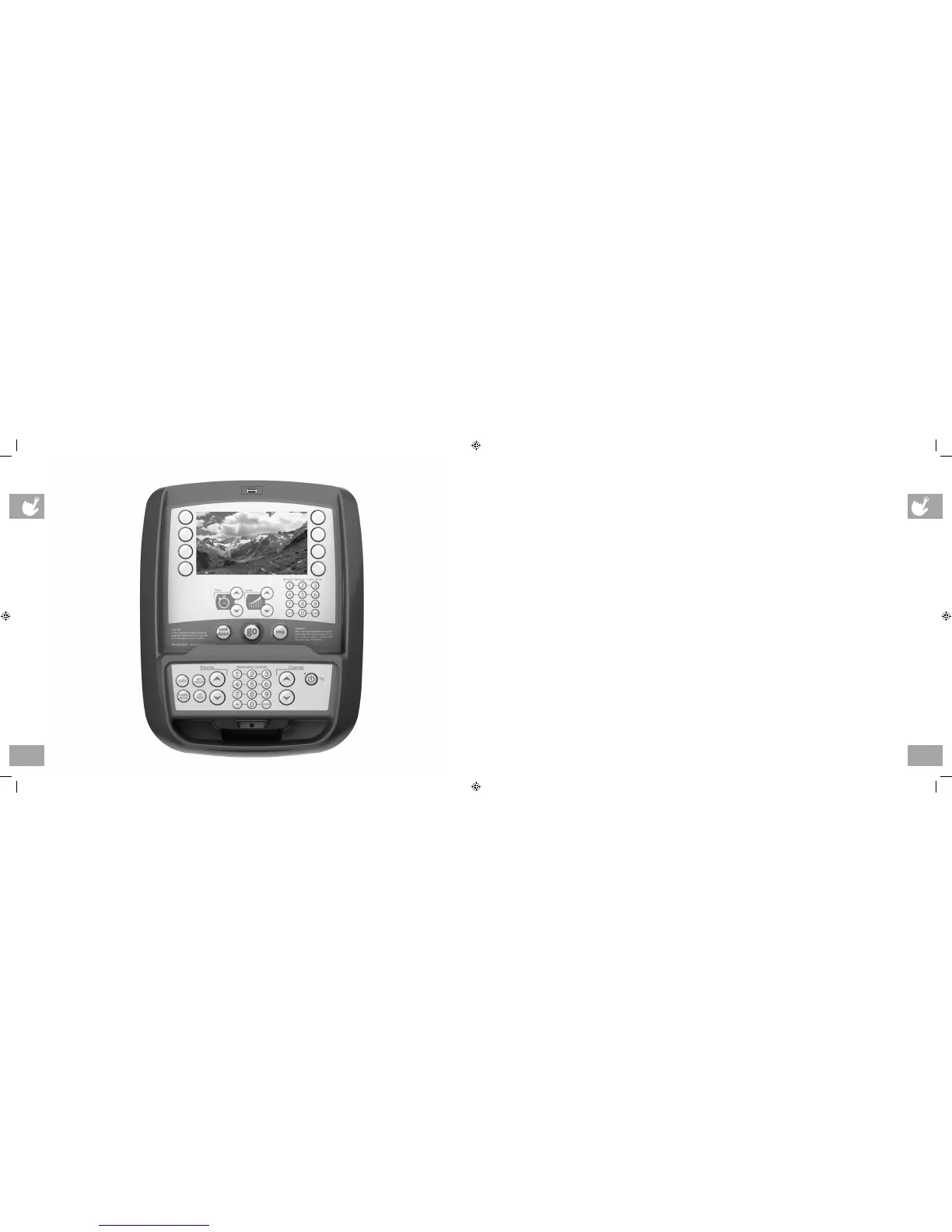

H3XE / U3XE / R3XE CONSOLE DESCRIPTION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) MULTI-PURPOSE KEYS: Keys have different functions depending on each screen.
B) GO: One Touch Start.
C) ENTER: Use to confirm each program setting.
D) BACK: Use to undo or go back one screen.
E) UP/DOWN LEVEL: Use to increase or decrease resistance level.
F) UP/DOWN TIME: Use to adjust workout time.
G) STOP: Ends workout and shows workout summary data.
H) NUMBER KEYPAD: Workout data input for workout setup. Resistance level adjustment during workout.
I) COOL DOWN: Puts the console into Cool Down mode.
H3XE / U3XE/ R3XE ENTERTAINMENT ZONE
J) TV: Will take the user to directly the TV screen.
K) VOLUME UP/DOWN: Adjusts the volume output through the headphone jack of either integrated console TV or iPod output.
L) NUMBER KEYPAD: Allows for easy TV channel selections.
M) CHANNEL UP/DOWN: Allows for channel selection.
N) DISPLAY MODE: Allows user to cycle through console display options, iPod, TV or profile display.
O) LAST CHANNEL: Allows the user to cycle between the current channel and the previous channel they were viewing.
P) HOME: Changes the channel to the channel defined as Home.
Q) CC/MUTE: Press to cycle through the different closed caption and mute configurations.
