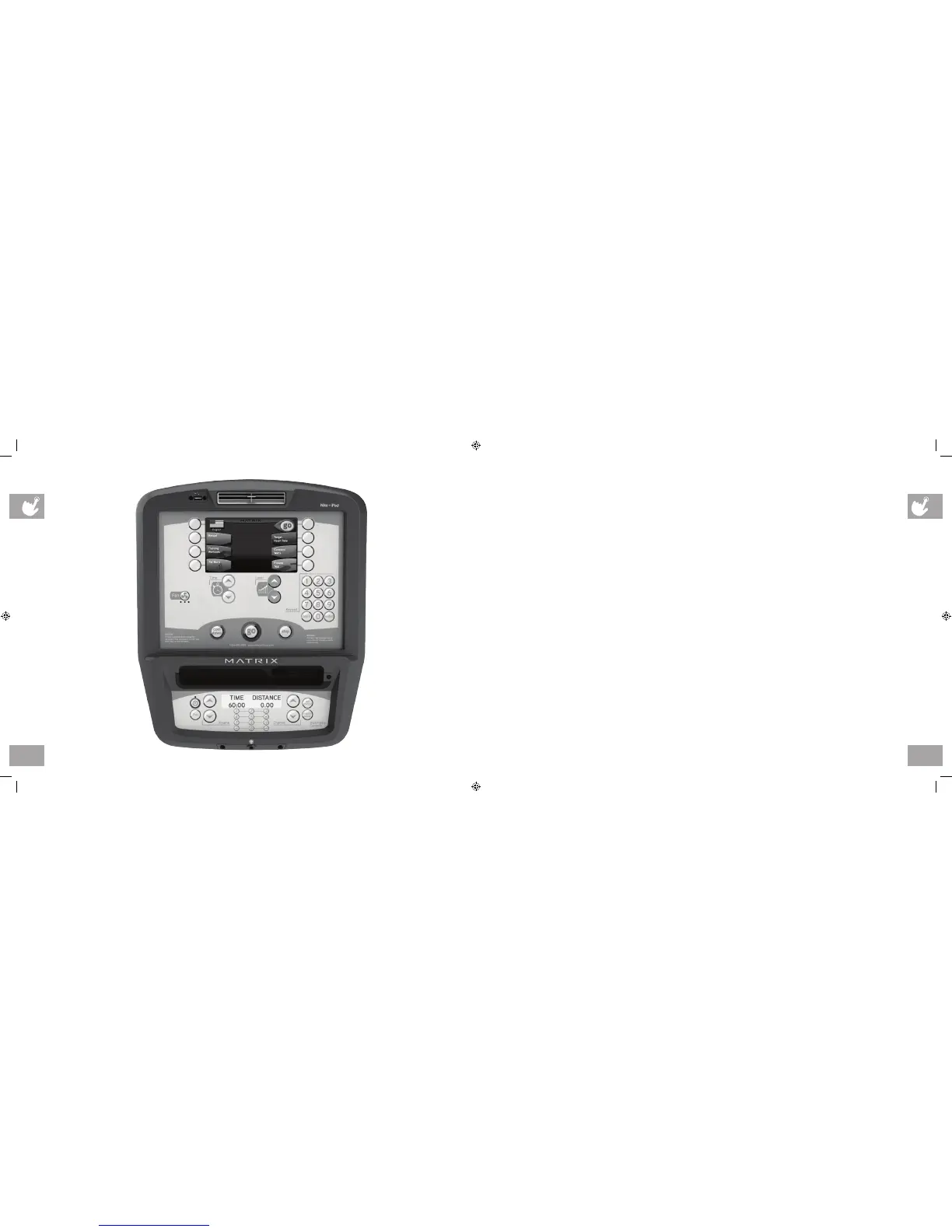

H7X / U7X / R7X CONSOLE DESCRIPTION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) MULTI-PURPOSE KEYS: Keys have different functions depending on each screen.
B) GO: One Touch Start.
C) ENTER: To confirm each program setting.
D) UP/DOWN LEVEL: Easy information and level selection.
E) UP/DOWN TIME: Easy information and time adjustment.
F) STOP: Ends workout and shows workout summary data.
G) NUMBER KEYPAD: Workout data input for workout setup. Level adjustment during workout.
H) COOL DOWN: Puts the bike into Cool Down mode.
I) FAN: Allows for fan speed selection (fan has three operating speeds.)
H7X / U7X / R7X ENTERTAINMENT ZONE
J) TV: Will take the user to directly the TV screen.
K) IPOD
®
: Will take the user directly to the iPod screen to allow for iPod control and playlist selection.
L) VOLUME UP/DOWN: Adjusts the volume output through the headphone jack of either integrated console TV or iPod output.
M) NUMBER KEYPAD: Allows for easy TV channel selections.
N) CHANNEL UP/DOWN: Allows for channel selection.
O) DISPLAY MODE: Allows user to cycle through console display options, iPod, TV or profile display.
P) LAST CHANNEL: Allows the user to cycle between the current channel and the previous channel they were viewing.
