13
3
4
2
6
C
E
5
F

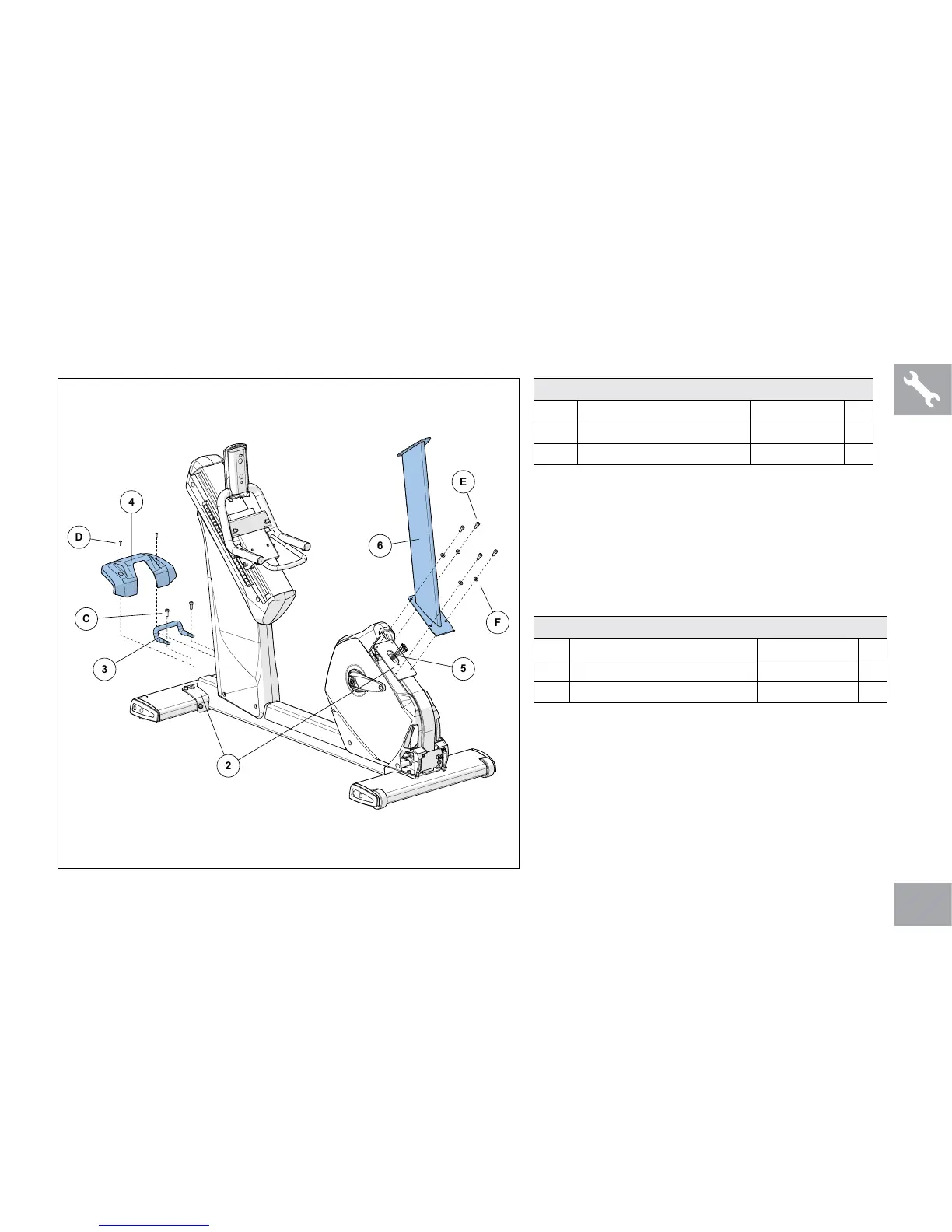

HYBRID ASSEMBLY STEP 2
A Open BLACK HARDWARE BAG.
B Attach the REAR FRAME HANDLE (3) to the
MAIN FRAME (2) using 2 BOLTS (C).
C Attach the REAR FRAME COVER (4) to the
MAIN FRAME (2) using 2 BOLTS (D).
BLACK HARDWARE BAG
PART TYPE DESCRIPTION QTY
C SOCKET HEAD BOLT (BLACK) M8X20L 2
D PHIILIP HEAD BOLT M5X12L 2
RED HARDWARE BAG
PART TYPE DESCRIPTION QTY
E SOCKET HEAD BOLT (CHROME) M8X20L 4
F TOOTH WASHER Φ8.5XΦ18.0X2.0T 4
A Open RED HARDWARE BAG.
B Carefully pull the CONSOLE CABLES (5)
through the CONSOLE MAST (6) using the
twist tie located inside the CONSOLE MAST
(6).
C Attach CONSOLE MAST (6) to MAIN
FRAME (2) using 4 BOLTS (E) and 4 TOOTH
WASHERS (F).
