Matrix U7xi User Manual

16
N
12
13
5
6
15
14
16
17

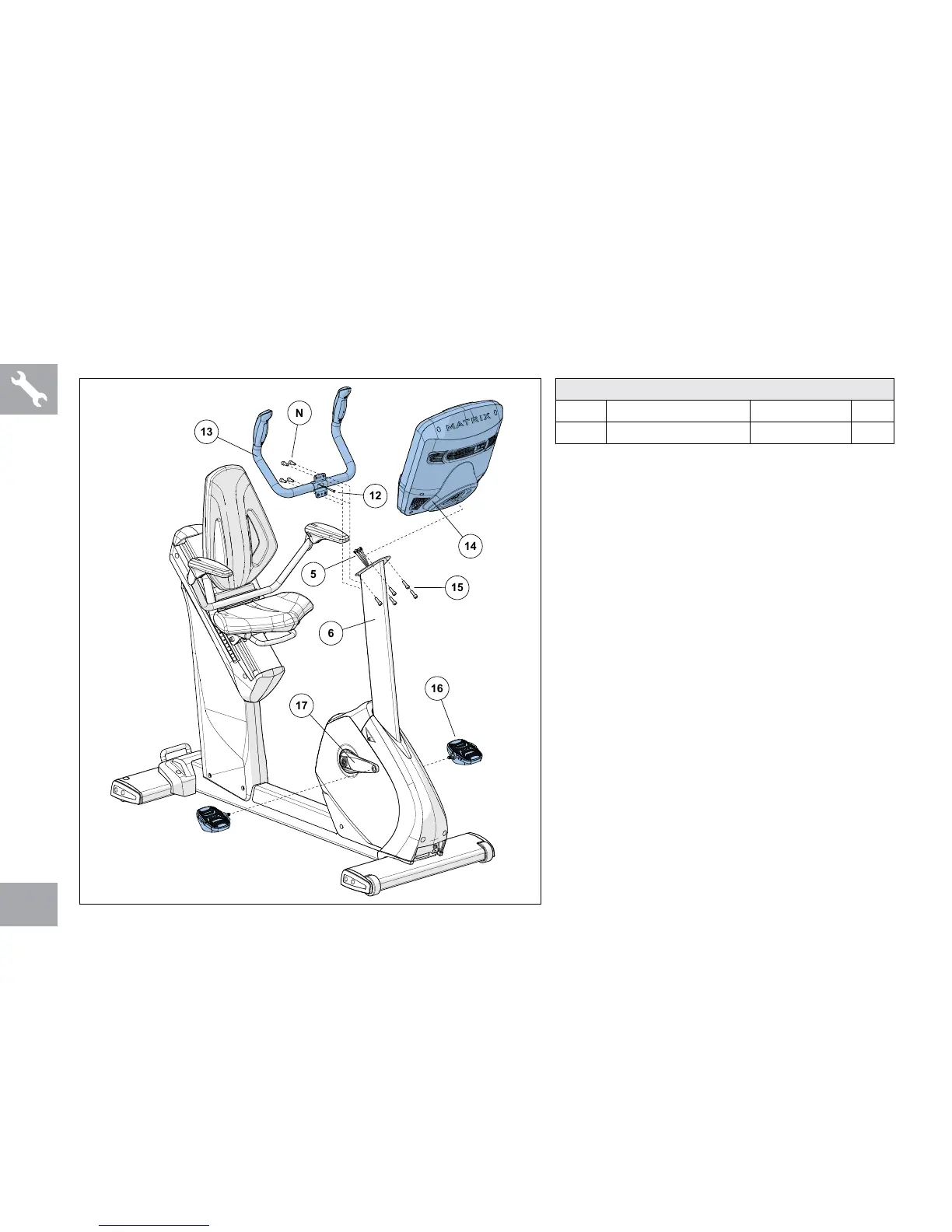

HYBRID ASSEMBLY STEP 5
A Open WHITE HARDWARE BAG.
B Carefully pull the PULSE GRIP CABLES
(12) through the CONSOLE MAST(6) using
the twist tie located inside the CONSOLE
MAST (6).
C Attach the PULSE GRIP HANDLEBARS
(13) to the CONSOLE MAST (6) using 4
BOLTS (N).
D Attach the CONSOLE CABLES (5) to the
CONSOLE (14).
E Attach the CONSOLE (14) to the
CONSOLE MAST (6) using 5
PRE-INSTALLED BOLTS (15).
F Attach PEDALS (16) to the CRANK (17)
with a 15mm/17mm flat wrench.
WHITE HARDWARE BAG
PART TYPE DESCRIPTION QTY
N SOCKET HEAD BOLT M8X20L 4
