37
15
16
14
6
5
13

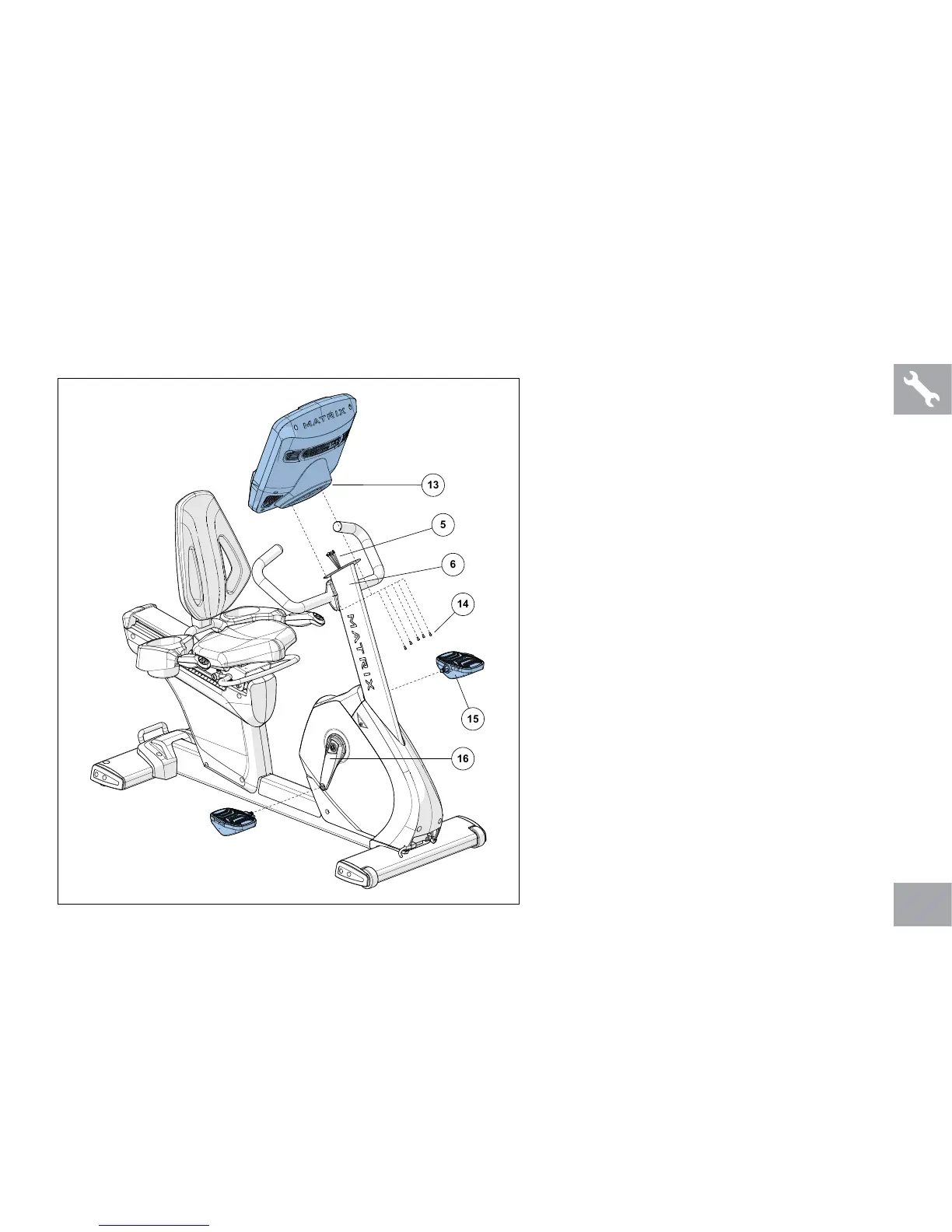

RECUMBENT ASSEMBLY STEP 6
NOTE: All hardware for this step is pre-
installed.
A Attach the CONSOLE CABLES (5) to the
CONSOLE (13).
B Attach the CONSOLE (13) to the
CONSOLE MAST (6) using 5
PRE-INSTALLED BOLTS (14).
C Attach PEDALS (15) to the CRANK (16)
with the provided 15mm/17mm flat wrench.
