Matrix ULTRA Series Assembly Instructions

7
ENGLISH
ASSEMBLY
* A = Top Sensor
B = Middle Sensor
C = Bottom Sensor

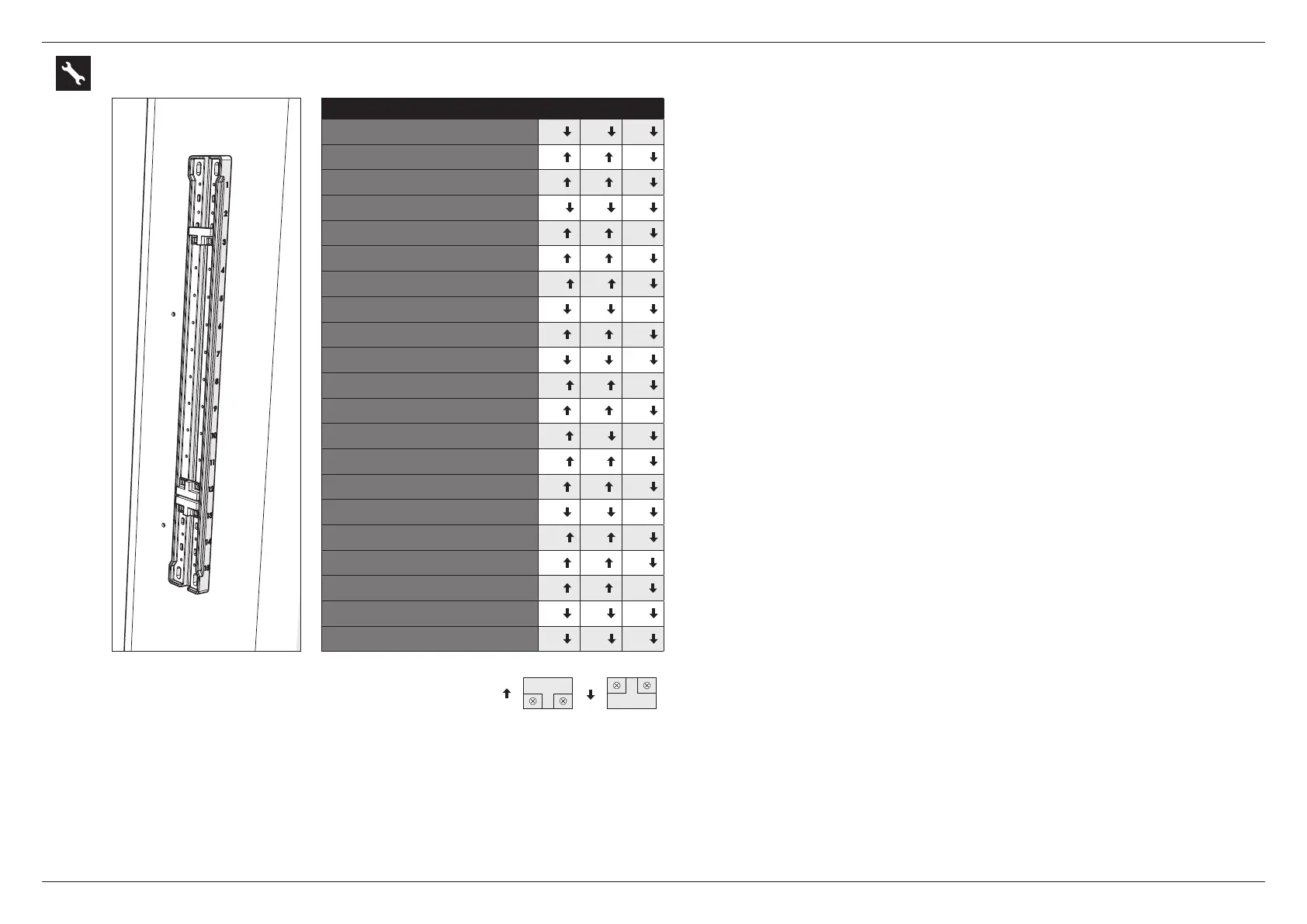

Sensor Orientation
=
=
Machine
Sensor Locations*
G7-S13 Chest Press
A9 B10 C13
G7-S21 Lateral Raise
A8 B9 C15
G7-S22 Pec Fly/Rear Delt
A8 B9 C14
G7-S23 Shoulder Press
A10 B11 C14
G7-S33 Lat Pull-down
A6 B7 C12
G7-S34 Seated Row
A7 B8 C13
G7-S40 Bicep Curl
A12 B13 C15
G7-S41 Dependent Curl
A9 B11 C15
G7-S42 Triceps Press
A5 B9 C12
G7-S45 Triceps Extension
A8 B9 C15
G7-S51 Abdominal Crunch
A10 B11 C13
G7-S52 Back Extension
A7 B8 C13
G7-S55 Rotary Torso
A11 B12 C15
G7-S70 Leg Press
A10 B11 C14
G7-S71 Leg Extension
A8 B9 C13
G7-S72 Seated Leg Curl
A7 B11 C15
G7-S73 Prone Leg Curl
A10 B11 C15
G7-S74 Hip Adductor
A8 B9 C11
G7-S75 Hip Abductor
A6 B7 C11
G7-S77 Calf Extension
A9 B11 C15
G7-S78 Glute
A9 B12 C15
