Matrix VERSA Series - Setup and Tools; Unpacking and Caution; Tools for Assembly

8

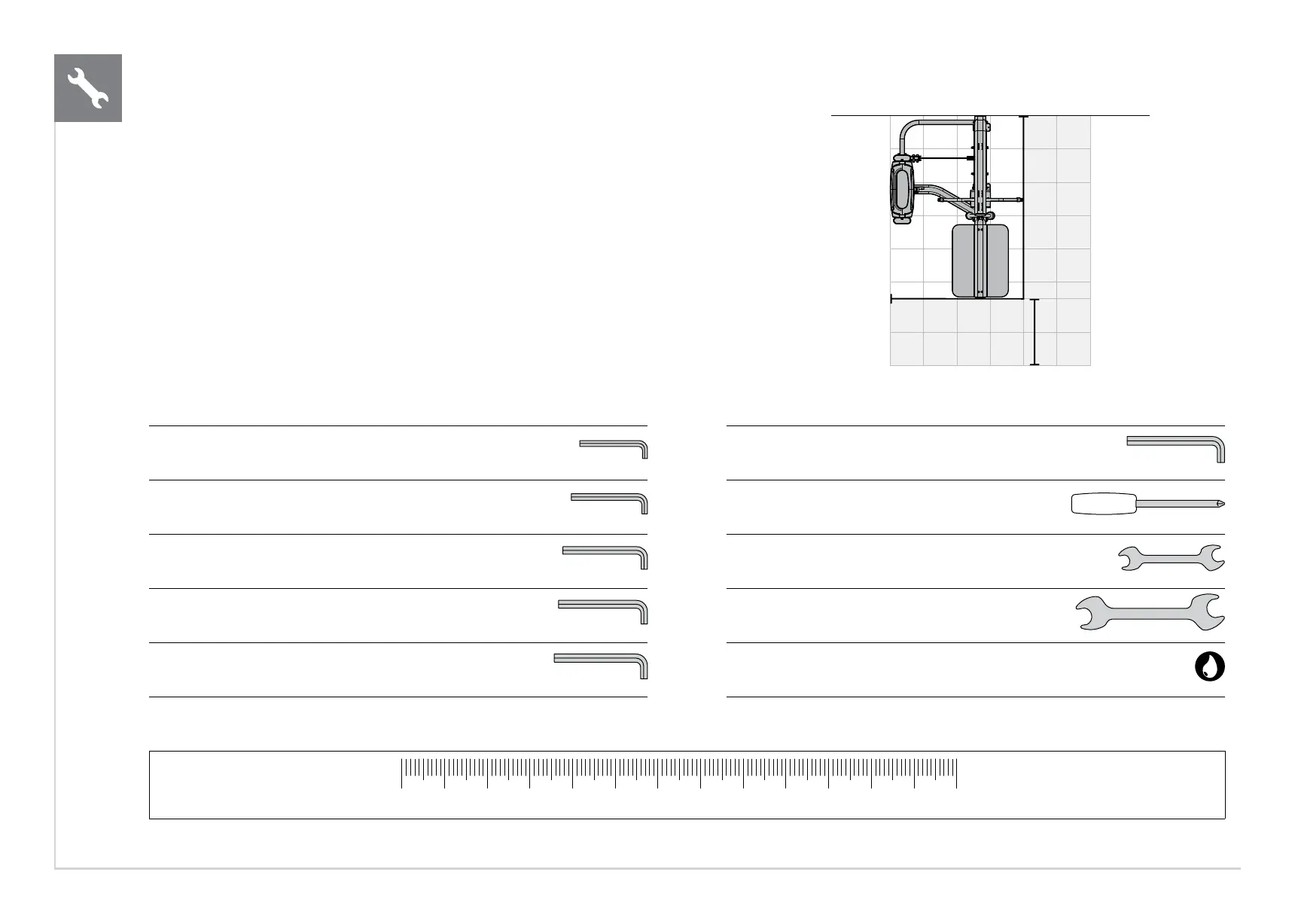

TOOLS REQUIRED FOR ASSEMBLY (not included)
3MML-ShapedAllenWrench 10MML-ShapedAllenWrench
4MML-ShapedAllenWrench Phillips Screwdriver
5MML-ShapedAllenWrench 8MMOpen-EndWrench
6MML-ShapedAllenWrench 17MMOpen-EndWrench
8MML-ShapedAllenWrench Guide Rod Lubrication
If any items are missing please contact your country’s local MATRIX dealer for assistance.
0 mm 10 20 30 40 50 60 70 80 90 100 110 120 130
UNPACKING
Thank you for purchasing a MATRIX Fitness product. It is inspected before it is packaged. It is
shipped in multiple pieces to facilitate the compact packaging of the machine. Prior to assembly,
conrmallthecomponentsbymatchingthemwiththeexplodeddiagrams.Carefullyunpackthe
unit from this box and dispose of the packing materials in accordance with your local laws.
CAUTION
To avoid injury to yourself and prevent damage to the frame components, be sure to have proper
assistance removing the frame pieces from this box. Please be sure to install the equipment
on a stable base, and properly level the machine. Ensure a minimum clearance width of 0.6
meters (24”) for access to and passage around MATRIX strength equipment. Please note, 0.91
meters (36”) is the ADA recommended clearance width for individuals in wheelchairs.
VS-S401 TRAINING AREA
1.16 M
(45.3”)
1.67 M
(65.6”)
FREE AREA
0.6 M (2 FT)
WIDE PATH
ENGLISH
