ASSEMBLY
STEP 2 | EXERCISE ARM ASSEMBLY INSTRUCTIONS & NOTES
PART 3: EXERCISE ARM ASSEMBLY
ID DESCRIPTION QUANTITY
4 M10 Flat Washer 2
5 M10 Nylock Nut 1
21 M10 X 100L SHC 1
22 Axle 1
23 Ankle Pad and Weldment 1
4
21
22
5
23

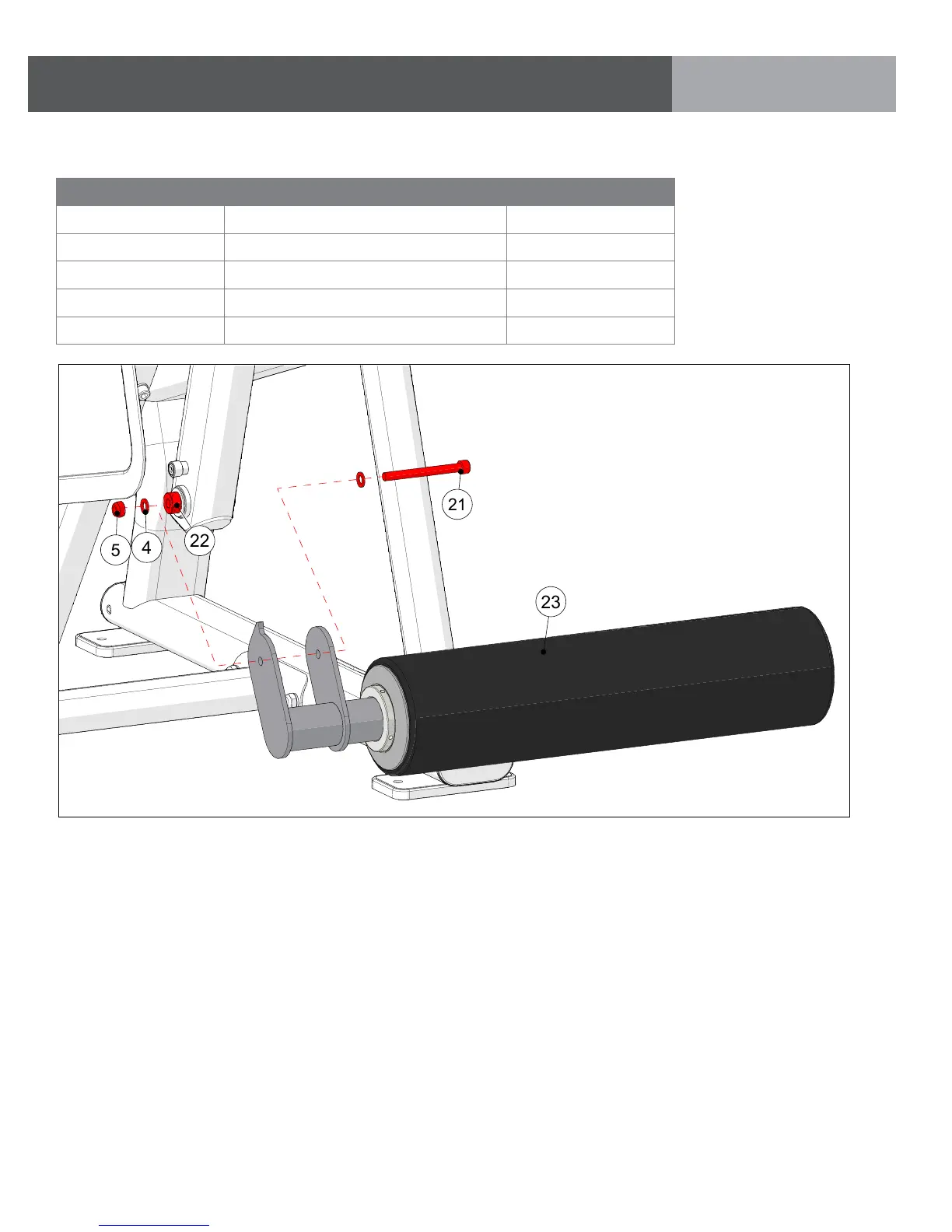

Install hardware as shown.
Tighten to: 77 N-m/57 ft-lbs.
