Matrix VS-S71 - Premium Kit Assembly: Step 6 (ASG Grips); ASG Grips Assembly

31

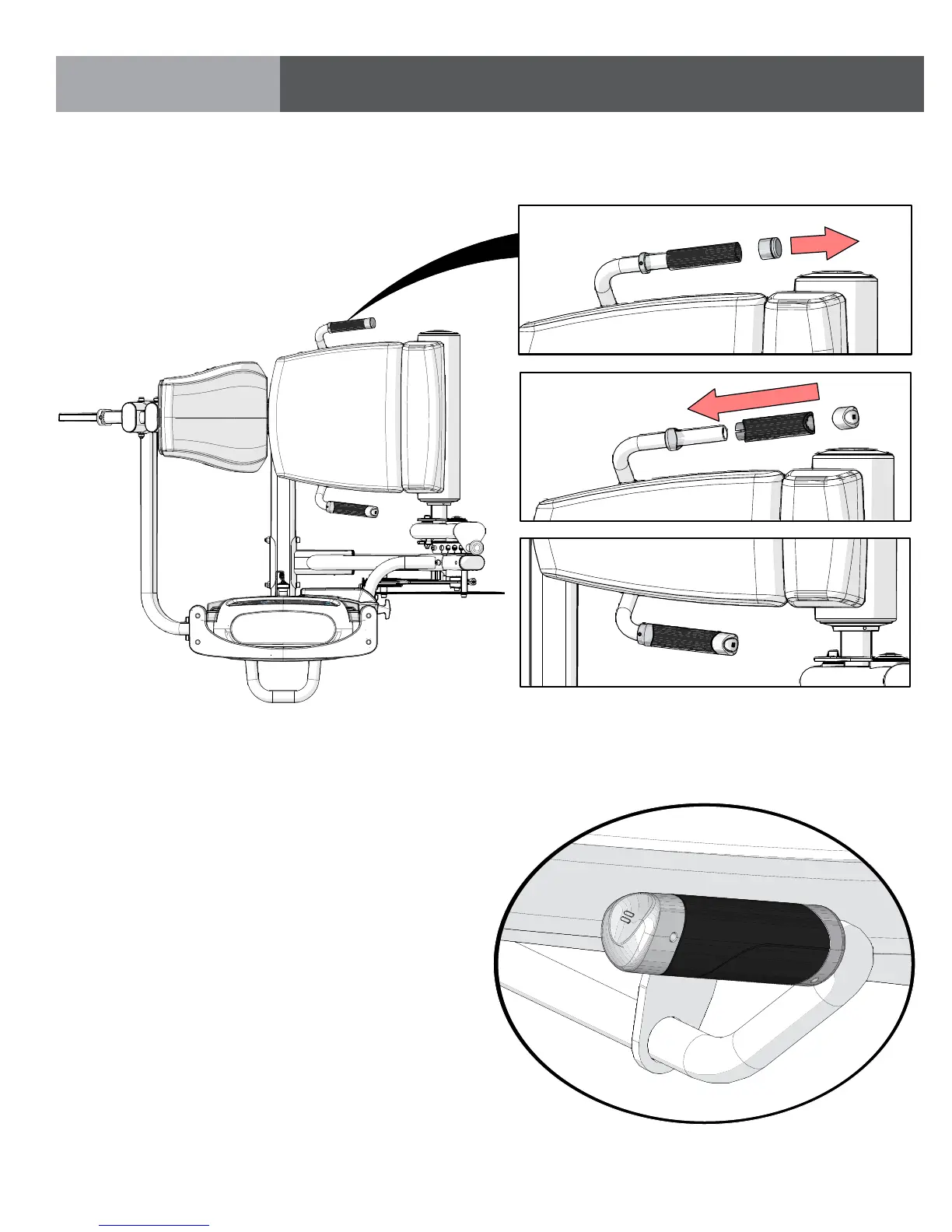

STEP 6 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES
PART 6: PREMIUM KIT ASSEMBLY
1. Remove the end caps using a 3 mm Allen wrench.
2. Cut off and discard the grips.
3. Remove inner collars with a 3 mm allen wrench.
4. Assemble the ASG grip (4P) as shown; lock inner
collars using a 4 mm Allen wench (torque to 8
N-m/5 ft-lbs.), and a 3 mm Allen wrench to secure
the end caps.
5. Orient ASG grips as shown, with thumb index
angled in for comfort.
ASG Grips
ASSEMBLY
1,2,3
4
5
