Matrox MXO2 Mini - Connections Matrox MXO2 LE

Matrox MXO2 LE Connections - Outputs
Matrox MXO2 LE Connections - Inputs
8
Matrox MXO2 Family for PC Product Guide

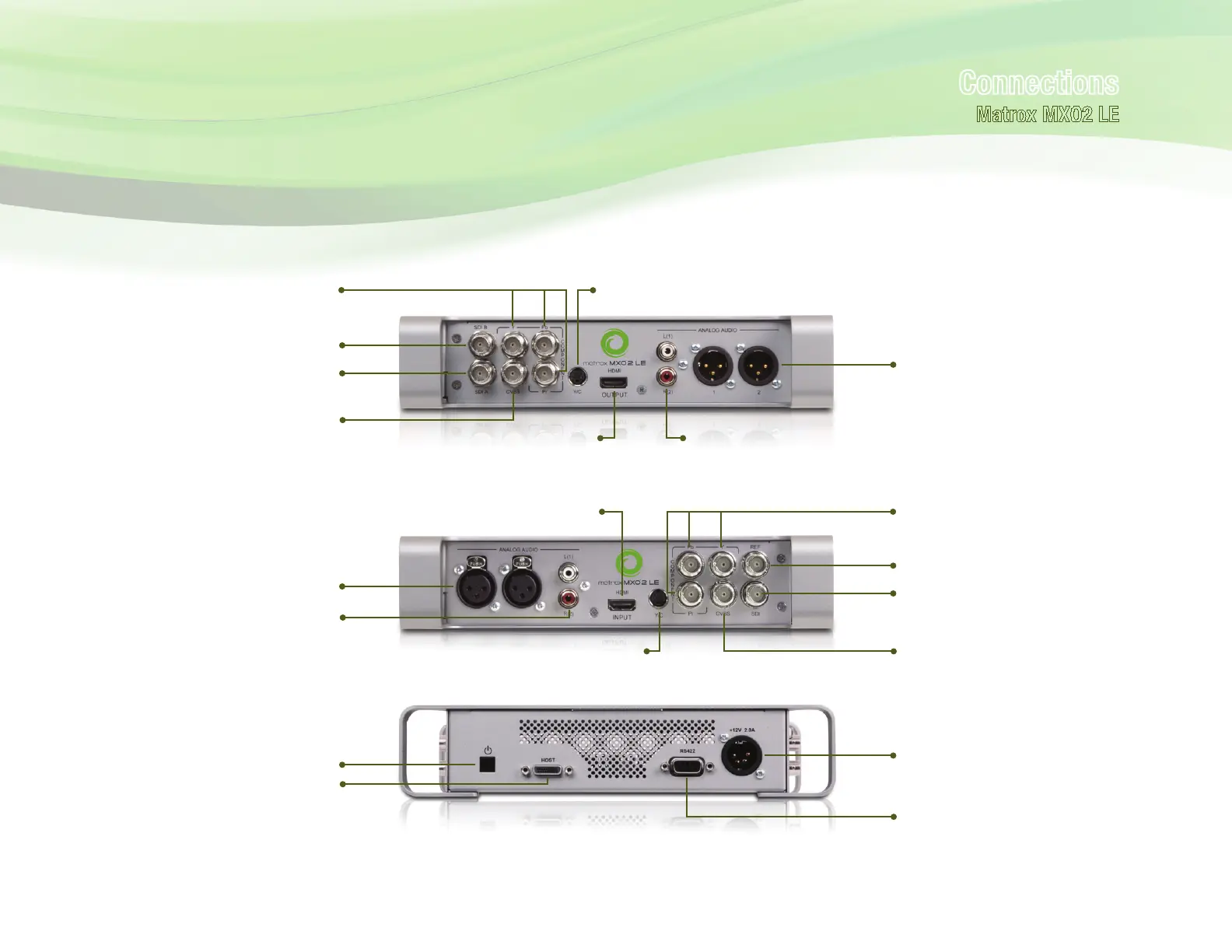

Connections
Matrox MXO2 LE
Power switch
Power connector
(connects directly to standard field batteries
or the included AC power adapter)
RS422
Host interface
Analog component
HD/SD
XLR - 2 channels of
balanced audio
Two SDI – HD/SD with up to 8
channels of embedded audio
per output
Composite
Y/C – S-Video
RCA - 2 channels of
unbalanced audio
HDMI – HD/SD with up to 8
channels of embedded audio
Analog component
HD/SD
XLR - 2 channels of balanced audio
SDI – HD/SD with up to 8
channels of embedded audio
CompositeY/C – S-Video
HDMI – HD with up to 8
channels of embedded audio
RCA - 2 channels of
unbalanced audio
Genlock – bi-level and
tri-level genlock via a single BNC connector
