3Print Heads 8000+ Range - Technical Manual - Version: 1 Issue: 1
Overview
The 8000+ Range Print Heads
The Jet•A•Mark 8000+ range comprises of the MINI, MIDI and MAXI print head
types. Each type has different printing characteristics with respect to print resolution
(drop size) where MINI print heads are used for high resolution printing and produce,
therefore, small drops, MAXI heads print at a low resolution using large drops and
MIDI heads have printing characteristics falling in the middle of the two.
Each print head type is available in three models: a 7 valve print head, a 16 valve
print head and a 32 valve print head, one for each maximum print height.
See “Print Head Comparison Charts” on page 17 for tables showing the differences
between the print heads.

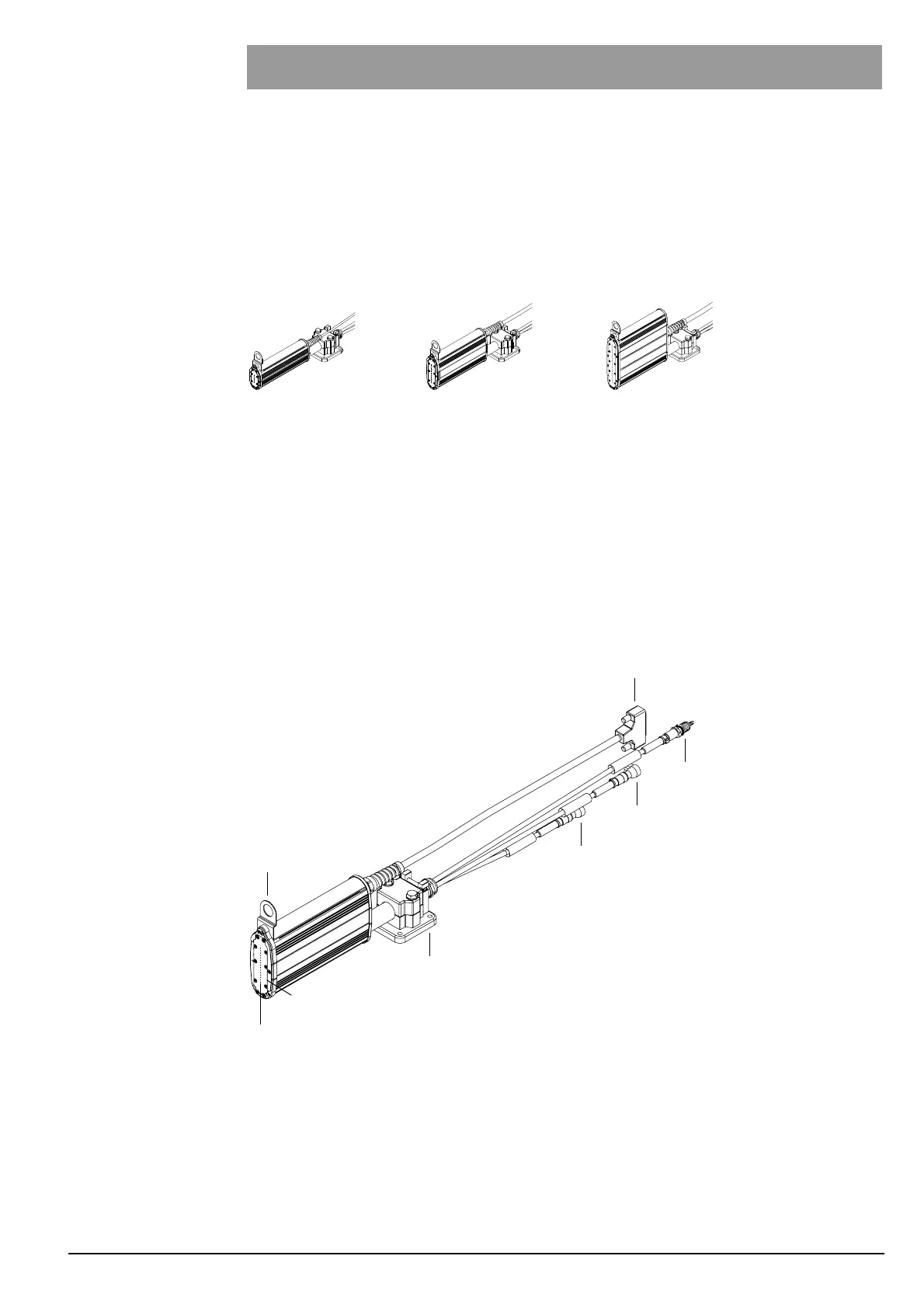

External Parts
8000+ MINI 7v
8000+ MIDI 7v
8000+ MAXI 7v
8000+ MINI 16v
8000+ MIDI 16v
8000+ MAXI 16v
8000+ MINI 32v
8000+ MIDI 32v
8000+ MAXI 32v
Connection to control unit
Nozzles (ink out)
Printout activator
bracket
Mounting clamp
Ink connector
Cleaner fluid connector
(16v and 32v heads only)
Flush valve
Print target guide plate
