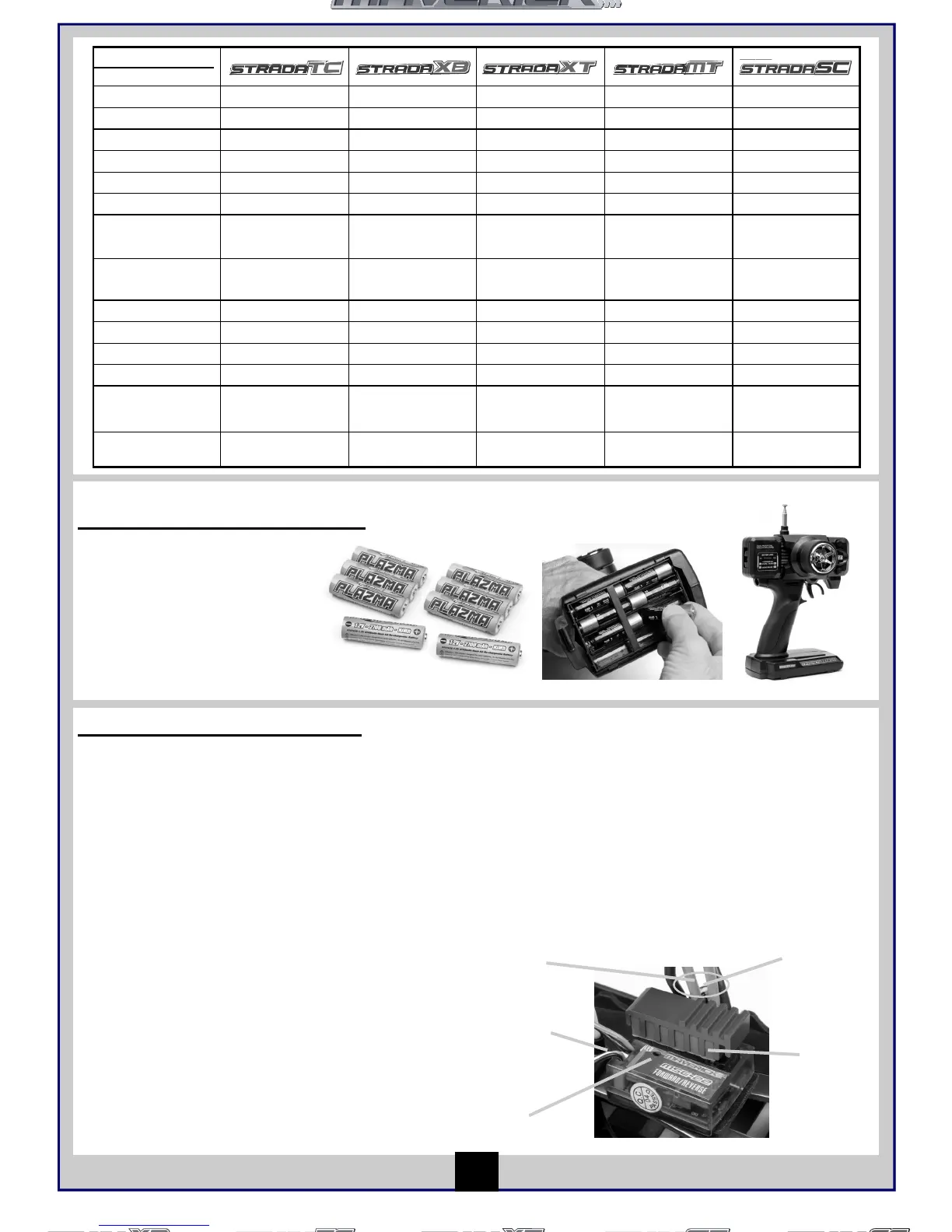

Maverick Strada MT - Specifications; Electronic Speed Controller Setup

Items required for operation
8 * AA Batteries for the Transmitter
Electronic Speed Controller
Features
• 6.0Volt — 8.4Volt Power Input
• High Frequency Drive System
• Forward, Reverse & Brake Linear Operation
• Automatic Setup System
• Over Current Protection
• Thermal Protection
• Low Voltage Protection
• LED with audible beep
• 13 Turn Brushed Motor Limit
Technical Information
• PWM frequency 1.5khz (fixed)
• 200 A drive FET’s & 100A Reverse FET’s
• Case dimensions: 33mm*27mm*25mm
• Silicone Wire 14 Gauge
• Weight 4.5g with connectors and switch
• BEC Voltage 6.0V
Motor Cables
Battery
Cables
LED
Receiver Cables
FET’s
Set-Up Instructions
1. With the speed control switch set to off, plug in a suitable
battery pack.
2. With the transmitter switched on and throttle trim set to
the centre, turn on the speed control.
3. To Indicate the speed control is working correctly its LED
will flash followed by 3 beeps and a further flash.
4. If necessary adjust the throttle trim of the transmitter so
your car is stationary with no throttle or brake applied.
5. Your speed control is fully installed and ready to use.
4
Specifications
Length
380mm 400mm 400mm 400mm 460mm
Width
200mm 250mm 300mm 310mm 250mm
Height
112mm 160mm 160mm 185mm 160mm
Wheel base
260mm 275mm 275mm 275mm 275mm
Drive System
4wd Shaft Drive 4wd Shaft Drive 4wd Shaft Drive 4wd Shaft Drive 4wd Shaft Drive
Gear Ratio
7.37:1 11.00:1 13.36:1 13.36:1 8.04:1
Ground
Clearance
4.5mm 26mm 30mm 35mm 26mm
Diameter of
wheel
65mm 86mm 105mm 118mm 86mm
Width of wheel
26mm 32mm F 40mm R 60mm 52mm 42mm
Motor
MM-22 540 size MM-22 540 size MM-22 540 size MM-22 540 size MM-22 540 size
Servo
Maverick MS-22 Maverick MS-22 Maverick MS-22 Maverick MS-22 Maverick MS-22
Receiver
MRX-22 27mhz AM MRX-22 27mhz AM MRX-22 27mhz AM MRX-22 27mhz AM MRX-22 27mhz AM
Speed Control
MSC-22 13 turn limit
Fwd/ Rev
MSC-22 13 turn
limit Fwd/Rev
MSC-22 13 turn
limit Fwd/Rev
MSC-22 13 turn limit
Fwd/Rev
MSC-22 13 turn
limit Fwd/Rev
Battery
MBP-22 1800 mAh
Ni-MH
MBP-22 1800 mAh
Ni-MH
MBP-22 1800 mAh
Ni-MH
MBP-22 1800 mAh
Ni-MH
MBP-22 1800 mAh
Ni-MH
