17
1
2
3
6
9
12
13
14
15
16
Non‐continuousduty‐donotuseonairstoragecylinders
Usetwistlock
lu
rated
@15am
sfor230v
@30am
sfor120v
minimum

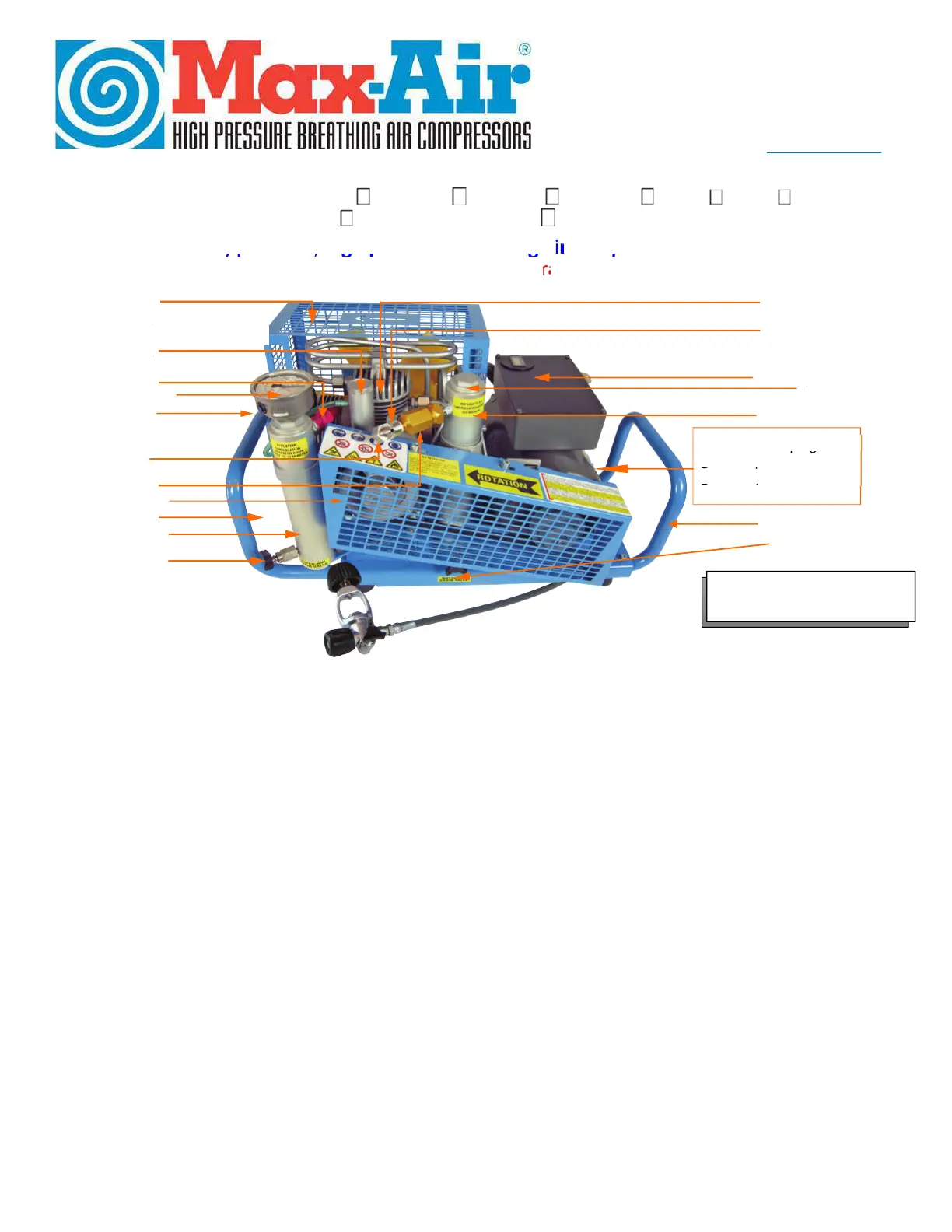

1. 3 HP electric motor, single phase with On/Off switch (full load amps – 230 volt 15 amps – 120 volt 30 amps @ 3000psi)
2. Compressor heads, air cooled, 4 stages of compression
3. Purification chamber
4. Purification cap, unscrew counterclockwise for filter removal – Make sure power is off and #5 and #6 are open prior to attempting to
remove cap – use LF-1001 purification disposable cartridge only – read instructions on cartridge
5. Purification drain tap – slowly open to drain every 20 minutes – if you get moisture you are not draining #6 sufficiently.
6. Moisture oil/vapor separator, drain every 10 minutes or more often if in hot and humid climate.
7. Separator
8. Purified air outlet – screw on fill hose assy (not shown) snuggly (NO TEFLON TAPE NEEDED) will accept
SCUBA and SCBA fill hose assy with On/Off bleed valve
9. Pressure maintaining valve to assure proper filtration and air quality. Will not open until compressor reaches 1600/1800 psi
10. Final pressure gauge – oil bubble is for contraction and expansion of shock dampening oil.
DO NOT OPERATE COMPRESSOR WITHOUT IT.
12. Final safety relief valve, factory preset to 3300 psi for SCUBA – 10% above the average scuba cylinder, cylinder or compressor must
be turned off at rated pressure - 3000psi for SCUBA to avoid overworking relief valve.
DO NOT ATTEMPT RE-ADJUSTING.
13. Oil drain – not shown on side of crankcase – run unit 2 minutes and elevate opposite end for quicker drainage
14. Oil fill and dip stick – simply pull up, pour oil in slowly (capacity 12 oz) - use MaxLube 501 synthetic breathing compressor oil only.
Change out break in oil after 15 hours – replace with MaxLube 501 provided, then every 50 hours thereafter.
15. Crankcase vent, remove cap prior to refilling oil & replace prior to start after oil changes
16. Fan guard – DO NOT REMOVE
17. Belt guard – DO NOT OPERATE WITHOUT (see manual for belt tension)
18. Retractable handle – can be removed for storage by loosening (2) retaining screws on retainer
NOTES: (the below rating A & B is based on a 80cft cylinder @ 3000 psi)
A. The LF-1001 filter is rated for 2,440 cft of grade “E” air @ 72
o
F intake temperature, draining the condensate
often = prox. 30 cylinders. For hot and humid climates you must de-rate by 10% for every 5
o
above 72
o
F.
B.
In order to keep the amps draw at a minimum the fill time is approx 15% longer than gas driven units.
Date:
Max‐Air
2807PeddlerLane
Kerrville,Texas78028
830‐955‐8188/830‐257‐3720Fax
E‐mail:sales@max‐air.com
www.max‐air.com
Finalsafetyreliefvalve
presetfor:_________psi
Serial#:
__________
10
11
5
18
4
8
11. Intake air filter behind pressure gauge.
7
MA 35 ELEC 1 PHASE 3 PHASE 120 VAC 230 VAC 60 HZ 50 HZ
MA 35 Gas Honda MA 35 Gas Subaru
P
e
r
s
o
n
a
l
,
portable,highpressurebreathingaircompressor
