Startup
During the panel startup all Led’s light up for a few seconds. The startup sequence ends with a BEEP tone.
Confirming zones and auxiliary 24V output have a cool off period of 4 seconds.
Power

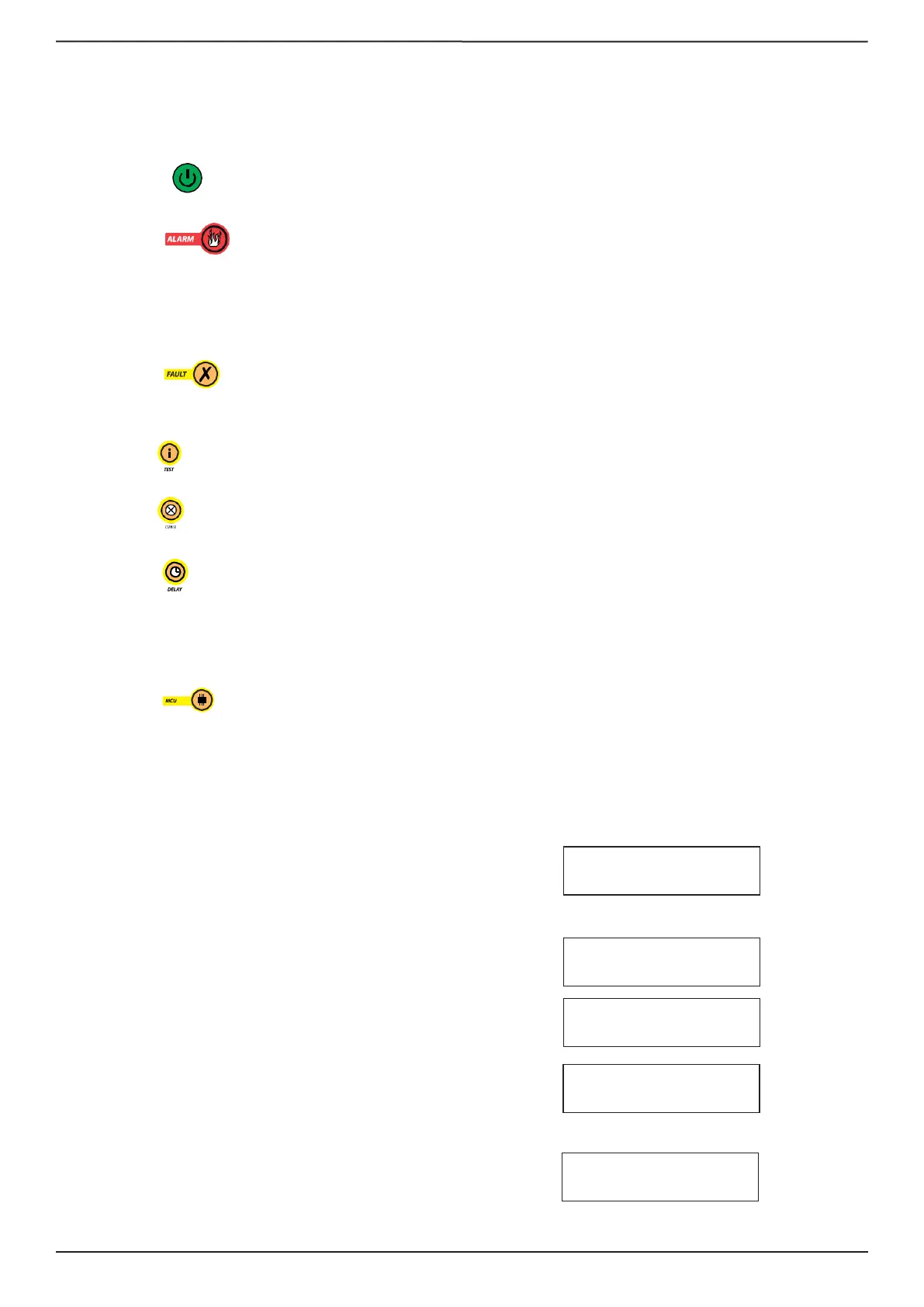

General Status LED’s
If lit, the panel is working. If it is off the system is not working.
Alarm
Alarm has been verif ed in one or more zones. See the indicator led´s to identify which zone(s) is(are) in
recondition. As the alarm led is lit, also the corresponding led’s of the zone in alarm light up.
Se um detector, ou botoneira entrar em alarme, iluminar-se-á o led geral de alarme e a correspondente indicação
surge no display.
Fault
There’s a fault on the system, zones, power supply or other. If there’s a fault on a zone circuit, the corresponding
fault led also lights up.
Test
If this led is lit, means that one or more zones are in test mode. The fault led of specif c zone also lits.
Omit
The system has one or more zones ommited. The siren outputs can also be omitted.
Delay
If the delay LED is lit, the system has the pre-alarm timer activated (Day mode).
Status LED
Micro
When lit, the microprocessor has encountered an error.
Shutdown the system completely and startup again. If the problem persists, contact your dealer.
Specific Indications LCD Display
Earth Fault
Ground connection is missing.
Power/Battery Fault
Fixed light indicates main power supply fault - 230V AC missing.
Flashing indicates secondary power supply fault - low batteries.
Aux Fault
When lit indicates that the 24V Aux is in fault, by short-circuit
or overload.
Fault Siren Outputs
Indicates that the siren output is at fault for short circuit, open
circuit or overload.It indicated the number of acoustic output that
is malfunctioning.
