The MaxiClimber XL is a full-body workout machine designed for home use, providing a comprehensive fitness solution. This manual specifically details the replacement procedure for the pulleys, which are critical components for the machine's smooth operation and resistance mechanism. The device is characterized by its vertical climbing motion, which engages multiple muscle groups simultaneously, offering an efficient cardiovascular and strength training workout.

Function Description:

The MaxiClimber XL simulates the natural motion of rock climbing, providing a low-impact, high-intensity workout. Users stand on foot pedals and grip handlebars, then move their arms and legs in an alternating upward and downward motion. This action engages the core, upper body (biceps, triceps, shoulders, back), and lower body (glutes, hamstrings, quads, calves). The machine utilizes a system of pistons and pulleys to provide resistance, which can be adjusted to suit different fitness levels and workout intensities. The resistance system is crucial for building strength and endurance. The vertical climbing motion is known for burning a significant number of calories in a short amount of time, making it an effective tool for weight loss and cardiovascular health improvement. The full-body engagement ensures a balanced workout, preventing muscle imbalances that can occur with exercises targeting only specific areas. The design aims to be space-efficient, allowing for easy storage when not in use, which is a significant advantage for home fitness equipment.

Important Technical Specifications:

While specific weight capacities or dimensions are not explicitly stated in the provided pages, the manual highlights key components and their SKUs, indicating the availability of replacement parts.

Pulleys (#33) Kit: SKU 400-002-382
Pulleys New Version (#33) Kit: SKU 400-002-468

These SKUs suggest that the pulleys are a frequently replaced or maintained part, underscoring their importance in the machine's functionality. The presence of "new version" pulleys implies continuous product improvement and potentially different pulley designs over the product's lifecycle. The machine utilizes a system of adjusting tubes (9 and 10) for height and possibly resistance adjustments, pistons (34) for resistance, and a steel rope (26) that interacts with the pulleys. The frame includes a curved stabilizer (1) and a rear stabilizer (4) for stability during use. The handlebars (11L and 11R) are adjustable, and the foot pedals provide a platform for the user. The various screws, nuts, washers, and cushions (17, 18, 19, 20, 21, 32, 72) are standard fasteners used throughout the assembly. The inclusion of cross head bolts (66) and flat head bolts (77) along with plastic rollers (76) in the 5-pulley version indicates a more complex or refined pulley system in that iteration.

Usage Features:

The MaxiClimber XL is designed for ease of use and adjustability to accommodate various users.

Full-Body Workout: The primary feature is its ability to provide a comprehensive workout that targets major muscle groups simultaneously, making it an efficient exercise solution.
Adjustable Resistance: The pistons (34) and the associated knobs (25) allow users to adjust the resistance level, enabling progression as fitness improves or catering to different workout intensities. This feature is crucial for both beginners and advanced users.
Adjustable Height: The adjusting tubes (9 and 10) likely allow for height adjustments of the handlebars, ensuring a comfortable and ergonomically correct position for users of different heights. The upper handlebars (11L and 11R) are secured by a knob (49), facilitating this adjustment.
Low-Impact Exercise: The climbing motion is designed to be gentle on joints, making it suitable for individuals who may experience discomfort with high-impact activities like running or jumping.
Compact Design: While not explicitly detailed, similar products in this category are often designed to be foldable or easily stored, making them ideal for home environments where space is a premium. The ability to remove components like stabilizers and adjusting tubes suggests a degree of modularity that could aid in storage or transport.

Maintenance Features:

The manual primarily focuses on the replacement of pulleys, indicating a clear maintenance procedure for these critical parts.

Piston Maintenance: Step 1 describes the removal and re-securing of pistons (34) using knobs (25) on the cylinder bracket (45). This suggests that pistons might need to be periodically checked, cleaned, or replaced, or simply moved for other maintenance tasks.
Steel Rope Inspection/Replacement: Step 3 involves taking off the steel rope (26) from the adjusting tubes (9 and 10). This implies that the steel rope is a wear-and-tear component that may need inspection for fraying or replacement over time to ensure smooth operation and safety.
Pulley Replacement (Part #33): This is the core maintenance procedure detailed in the manual.
- Two Versions: The manual outlines procedures for both a "4 pulley version" and a "5 pulley version" of the device, indicating that users need to identify their specific model before proceeding with replacement. This highlights the importance of using the correct replacement parts.
- Detailed Steps: The process involves removing various fasteners (screws 32, cross head bolt 66, flat head bolt 77) and components (pulleys 33, plastic roller 76) to access and replace the pulleys. This level of detail ensures that users can perform the replacement correctly.
- SKU Identification: The provision of specific SKUs for the pulley kits (400-002-382 and 400-002-468) is crucial for ordering the correct replacement parts.
Stabilizer Removal: Steps 4, 5, and 6 detail the removal of the curved stabilizer (1) and the connecting sheet of the rear stabilizer (4), along with associated screws, nuts, washers, and cushions. This suggests that these components might need to be removed for deeper maintenance, cleaning, or to access internal parts of the machine.
Adjusting Tube Removal: Step 7 describes sliding out the adjusting tubes (9 and 10). This is a significant step in accessing the internal pulley system and indicates that these tubes are designed to be removable for maintenance.
Reassembly Instructions: The manual explicitly states, "For reassembly repeat steps 1 to 7 in reverse order." This clear instruction simplifies the reassembly process after maintenance, ensuring that the machine is put back together correctly.

Overall, the MaxiClimber XL is presented as a robust fitness machine with a clear emphasis on maintainability, particularly concerning its pulley system, which is vital for its resistance and smooth operation. The detailed instructions for pulley replacement empower users to perform essential maintenance, extending the life and performance of the device.

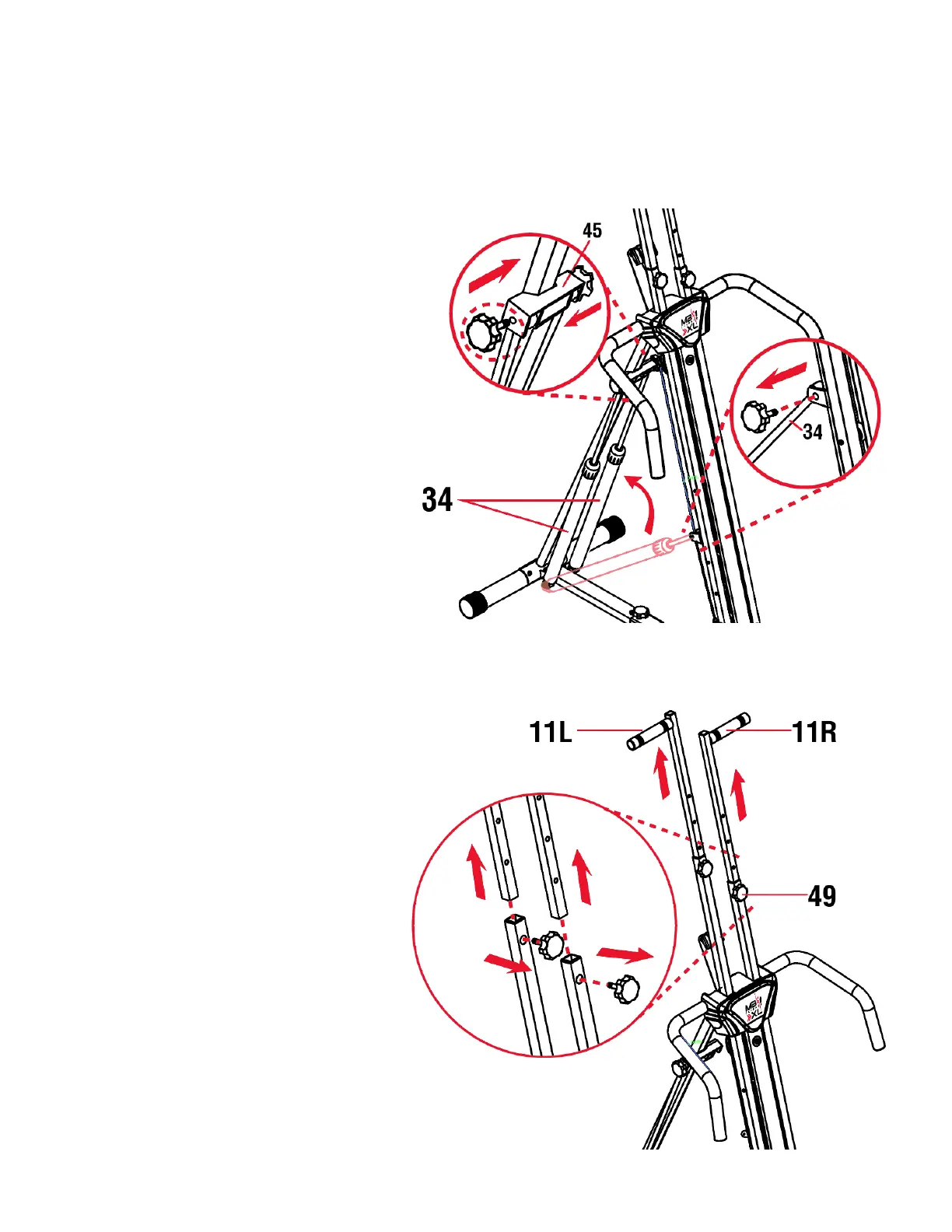

Maxi Climber XL - Step 1: Remove Pistons; Step 2: Remove Handlebars
