Maxitrol GV60 - Red Terminal mV Reading Test

50

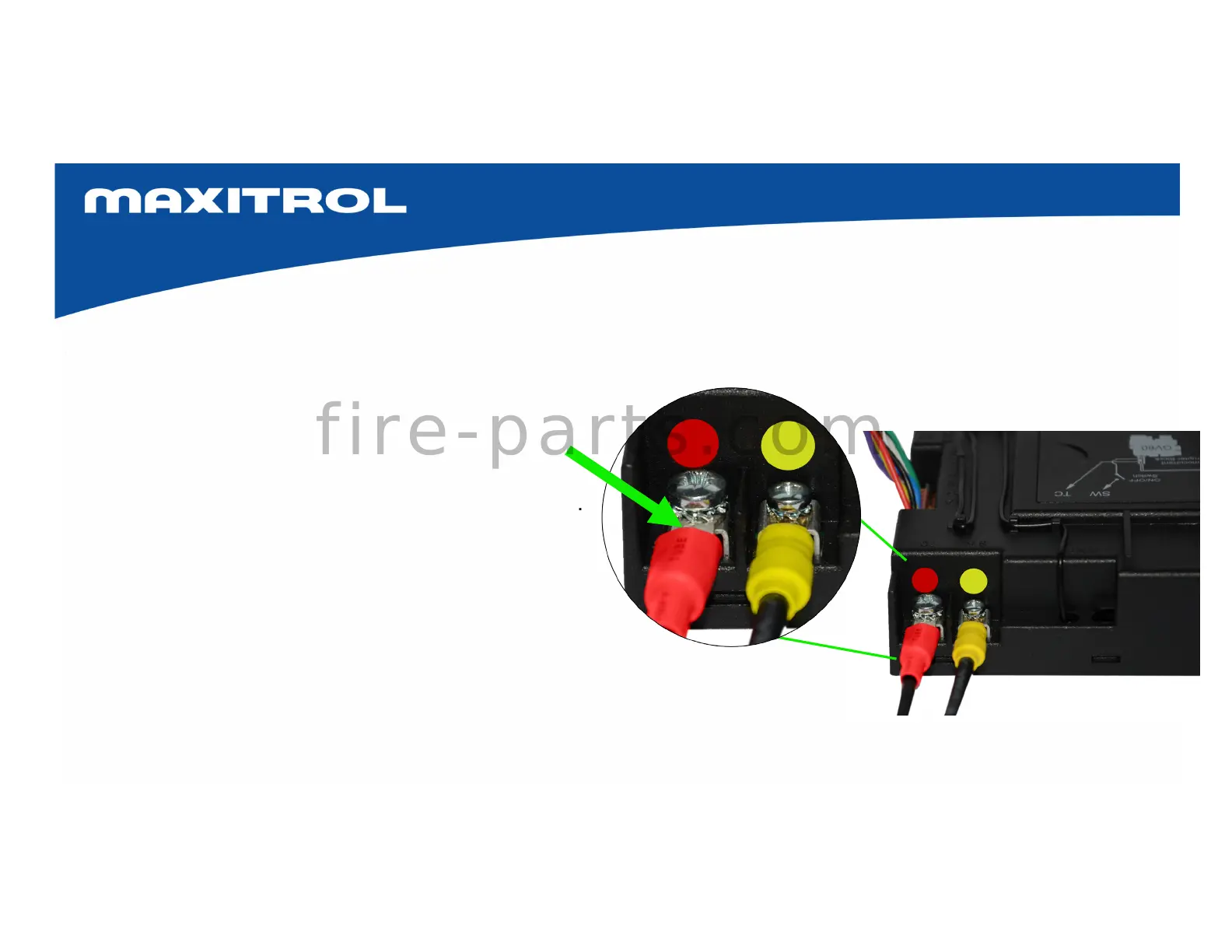

TEST: Take a mV reading at the red terminal.
PROCEDURE: Connect “+” test probe on red wire.
Connect “-” test probe to ground,
e.g. valve body or appliance chassis.
RESULT: The reading should be 10 – 15 mV.
Troubleshooting the GV60
Testing the Electronics
