Maxitrol GV60 - Yellow Terminal mV Reading Test

51
TEST: Take a mV reading at the yellow terminal.
PROCEDURE: Connect “+” test probe on yellow wire.
Connect “-” test probe to ground,
e.g. valve body or appliance chassis.
Subtract mV reading from test on the
red wire (see previous slide) from current
reading on the yellow wire.
RESULT: The difference is the power being consumed
by the receiver.
Troubleshooting the GV60
Testing the Electronics

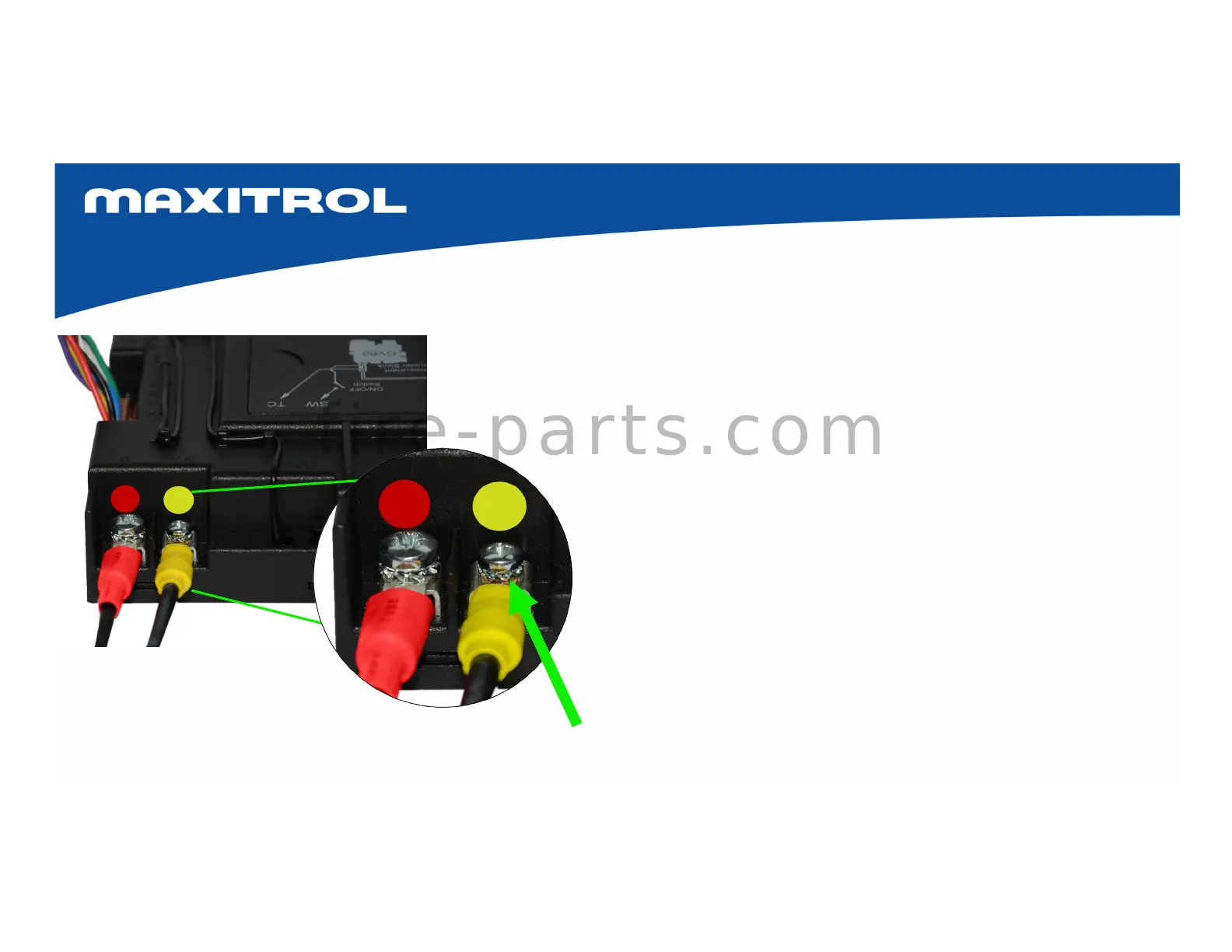

Connect “+” test probe on yellow wire
