STEP 8
HYDRAULIC POWER UNIT SET UP
STEP 7
CONNECTING THE HYDRAULIC HOSES
Female Quick
Disconnect
Fitting
Install the Female Quick Disconnect ttings to the opposite end of each Hose. Recheck all tting connections to make
sure they are properly tightened before proceeding. (See Figure 17)
Position the Power Unit Stand at the front or rear of the Vehicle.
Connect the Female Quck Disconnect tting to the Male Quick Disconnect located at the bottom of each Post.
(See gure 18)
Fig. 16
3/8 NPTF
Hose Fittings
Fig. 18
1. Fill the Power Unit Reservoir with 7 quarts (6.6 L) of AW-32 hydraulic oil or Dexron III or VI automatic transmission
uid. Make sure the funnel used to ll the power unit is clean. After bleeding the cylinders, check the oil level to see if
additional oil is needed to ensure the reservoir is full.
2. The Lift should be plugged into a dedicated circuit with a 20 amp circuit breaker. The standard Power Unit for this Lift is:
• US: 110V, 60Hz, single phase
• CE: 230V, 50Hz, single phase
ALL WIRING MUST BE PERFORMED BY A CERTIFIED ELECTRICIAN ONLY.
RISK OF EXPLOSION
This equipment has internal arcing or parts that may spark and should not be exposed to ammable vapors. The motor
should not be located in a recessed area or below oor level.
• Do not run Power Unit without oil. Damage to pump can occur.
• The Power Unit must be kept dry. Damage to Power Unit caused by water or other liquids such as detergents, acid
etc., is not covered under warranty.
• Improper electrical hookup can damage the motor and will not be covered under warranty.
• Motor can not run on 50hz without a physical change in the motor. (US - only)
• Use a separate breaker for each power unit.
• Protect each circuit with a time delay fuse or circuit breaker. (US-only)
1.

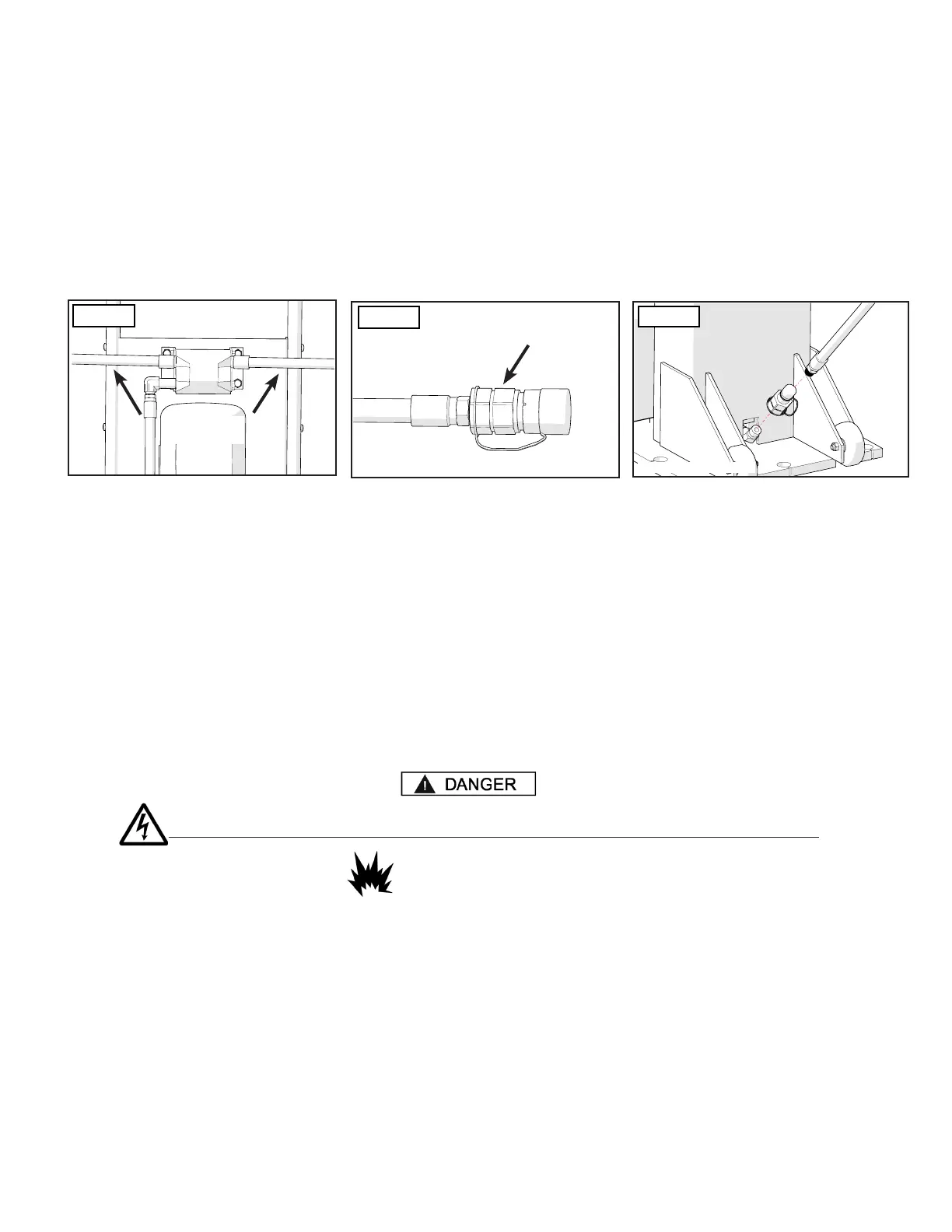

Thread one end of the 3/8 NPT Hose Fittings into one of the Top Out Ports on the Flow Divider. Do this with both
Hoses. Apply Liquid Thread Sealant to the NPT threaded ends only. (See gure 16).
Fig. 17
2.
3.
4.
Fitting shown with Cap. Fitting shown with Cap.
