Maxon D&S User Manual

11

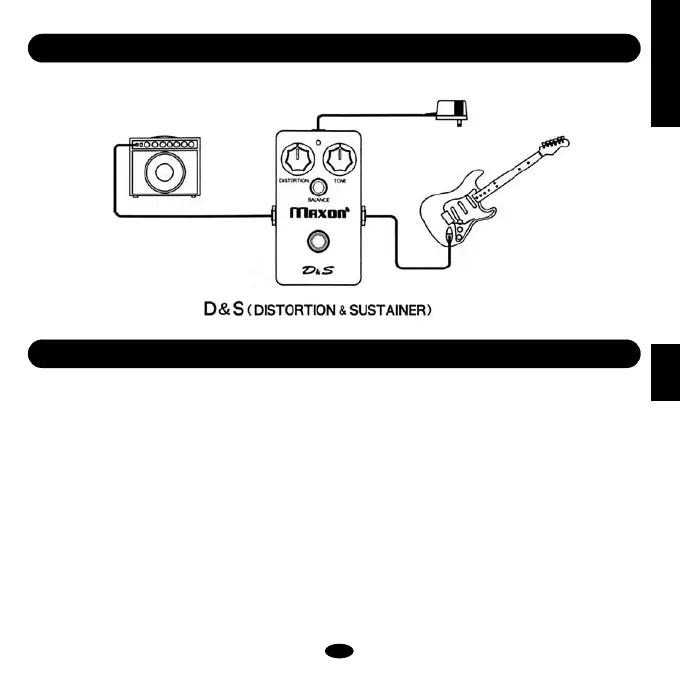

CONNECTION DIAGRAM
SPECIFICATIONS
D&S
Input Impedance
Input Jack
Output Impedance
Output Jack
Control
Switch
Equivalent Input Noise
Maximum Gain
Power Supply
Power Requirements
Current Consumption
Dimensions (main body)
Dimensions (overall)
Weight
Standard Accessories
* Specifications are subject to change without notice.
: 500k ohms
: 1/4-inch standard phone jack
: 10k ohms
: 1/4-inch standard phone jack
: DISTORTION, TONE, BALANCE
: normal / effect
: -110dBu (IHF-A)
: 40dB
: One 9V battery or Maxon AC adaptor (option)
: DC9-10V
: 6mA (9V) / 7mA (10V)
: 61mm(W) x 112mm(D) x 35mm(H)
: 70mm(W) x 112mm(D) x 35mm(H)
: 9V battery (6LR61 or 6F22) x 1 or Maxon AC adaptor
: 260g
: 9V manganese dry battery x 1, skid x 1
※(0dBu
=
0.775Vms)
ENGLISH

Maxon D&S Specifications

General

Brand	Maxon
Model	D&S
Category	Music Pedal
Language	English
