Maxon D&S User Manual

23

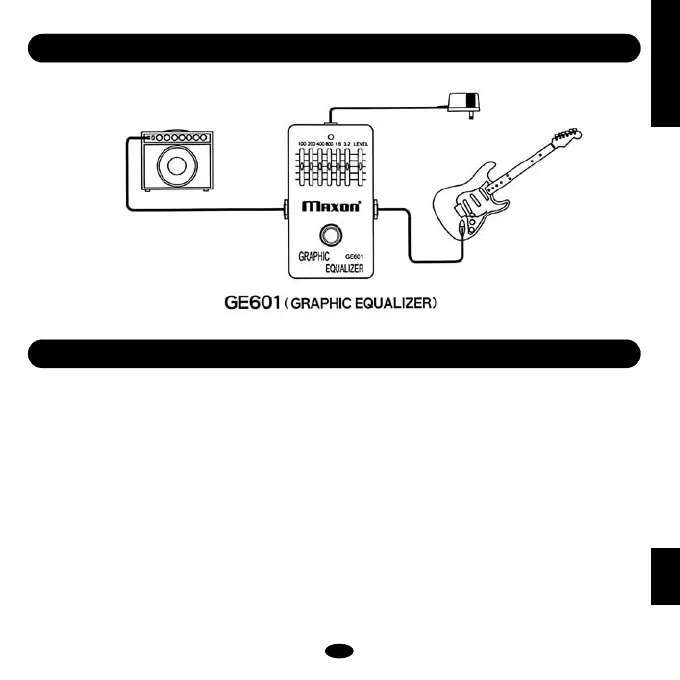

CONNECTION DIAGRAM
SPECIFICATIONS
Input Impedance
Input Jack
Output Impedance
Output Jack
Control
Switch
Maximum Input Level
Equivalent Input Noise
Power Supply
Power Requirements
Current Consumption
Dimensions (main body)
Dimensions (overall)
Weight
Standard Accessories
* Specifications are subject to change without notice.
: 500k ohms
: 1/4-inch standard phone jack
: 10k ohms
: 1/4-inch standard phone jack
: 100Hz, 200Hz, 400Hz, 800Hz, 1.6KHz, 3.2KHz,LEVEL
: normal / effect
: 4dBu
: -100dBu (IHF-A)
: One 9V battery or Maxon AC adaptor (option)
: DC9-10V
: 11mA (9V) / 12mA (10V)
: 61mm(W) x 112mm(D) x 35mm(H)
: 70mm(W) x 112mm(D) x 35mm(H)
: 9V battery (6LR61 or 6F22) x 1 or Maxon AC adaptor
: 240g
: 9V manganese dry battery x 1, skid x 1
※(0dBu
=
0.775Vms)
GE601
ENGLISH

Maxon D&S Specifications
