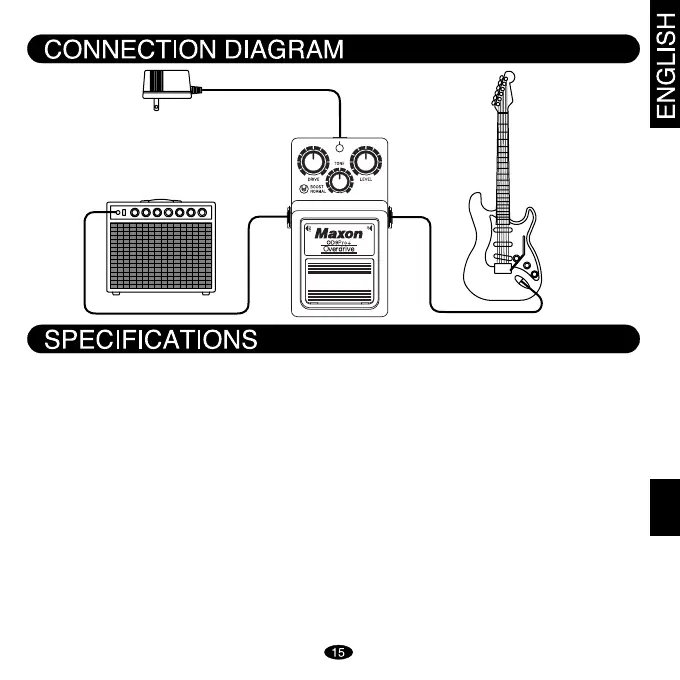

Maxon OD9 - OD9 Pro+ Connection Diagram and Specifications

OD9Pro+
Input Impedance
Output Impedance
Maximum Gain
Equivalent Input Noise
Controls
Switches
Indicator
Operating Voltage
Power Consumption
Dimensions
Weight
Battery
Battery life
:500k ohms
:10k ohms or less
:NORMAL 43dB(1.5kHz)
BOOST 46dB(1kHz)
:-116 dB or less (IHF-A)
:DRIVE, TONE, LEVEL
:BOOST/NORMAL switch
18V (±9V) /9V(±4.5V) switch
:EFECT LED
:18V(±9V)/ 9V(±4.5V)
:35mA/9V, 32mA/10V at operating voltage 18V (±9V)
27mA/9V, 27mA/10V at operating voltage 9V (±4.5V)
:124(D)× 74(W)× 54(H)mm
:580g (including battery)
:9V battery (6LR61 or 6F22) x 1 or Maxon AC adaptor
:manganese dry battery approx. 3 hours 25deg C / 77deg F
(Panasonic 6F22NB)
Alkaline dry battery approx. 8 hours 25deg C / 77deg F
(Panasonic 6LR61G)
※Specifications are subject to change without notice.
