Maxon OD9 - CP9 Pro+ Connection Diagram and Specifications

Input Impedance
Output Impedance
Maximum output level
Control
Distortion ratio
Residual Noise
Indicator
Internal circuit voltage
Power Supply
Power Consumption
Dimensions
Weight
Battery life
: 500k ohms
: 10k ohms
: +18dBu (1kHz)
: 0dBu to -40dBu
: 1:1 to ∞:1
: 0dB to +30dB
: 0.01% (1kHz) At 0dB output
: -95dBu (Input shorted, IHF-A weighted)
: Effect LED REDUCTION LED
When REDUCTION LED lights, compression is
more than 3dB.
: Stabilized ±9V DC to DC Converter
: 6F22 9V manganese dry cell battery x 1
or Maxon AC adaptor
: 25mA/9V 23mA/10V
: 124(D) x 74(W) x 54(H)
: 580g (including battery)
: Panasonic NEO battery 6F22NB
Approx 5.1 hours @ 77deg F / 25deg C
Panasonic ALKALINE battery 6LR61G
Approx 12.4 hours @ 77deg F / 25deg C
THRESHOLD
RATIO
GAIN
※Specifications are subject to change without notice.
19

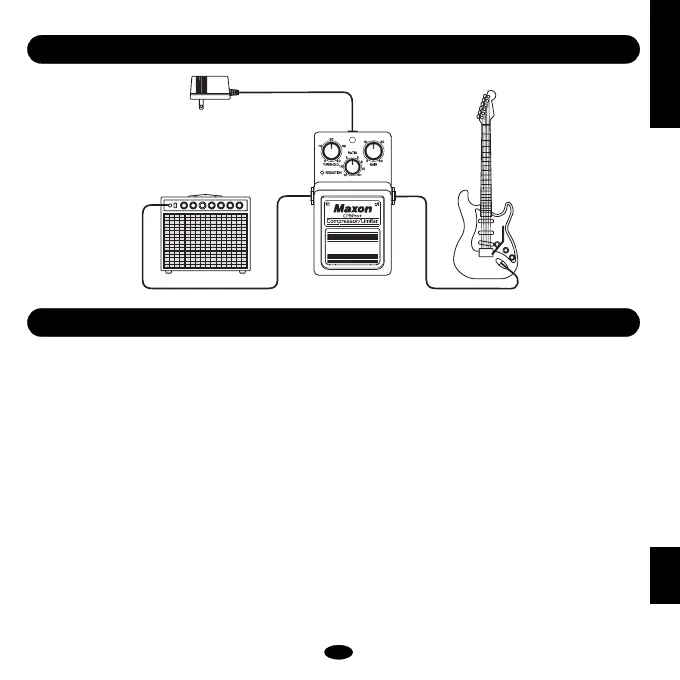

CONNECTION DIAGRAM
