OD9 Overdrive
FEATURES AND CONTROLS
●Identical to the original circuit and featuring the JRC4558 IC chip, the OD9
produces natural overdrive of a tube amp that smoothly responds to input
signal level (playing dynamics).
●Easy-access, no tools battery compartment.
●AC jack to connect optional AC adaptor for long hours of continuous use.

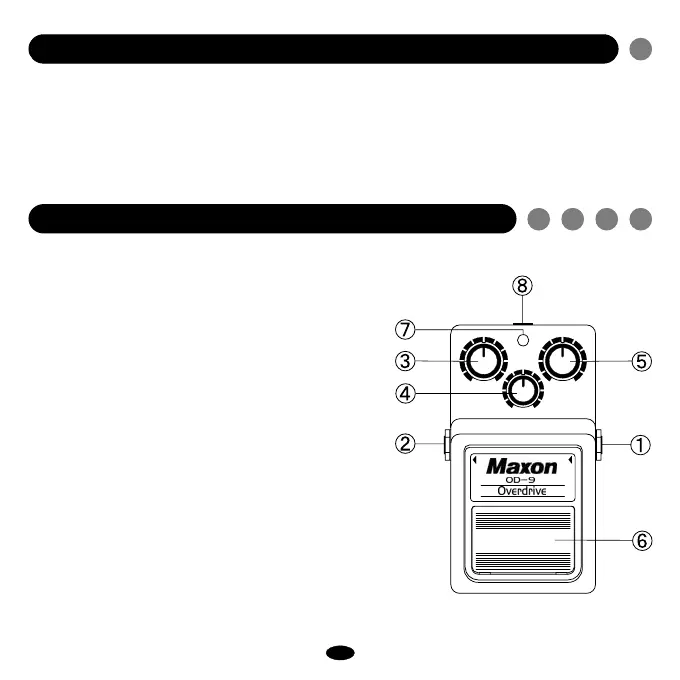

①IN (input jack)
Input jack to connect to the output of
guitar,other effects or related equipment.
The product automatically turns on when
a plug is inserted into this jack. When not
in use, disconnect plug from input jack to
preserve battery life.
* When an external AC adaptor supplies
DC power to this product, the power is
always on and battery is preserved
regardless of input jack connection.
②OUT (output jack)
Output jack to connect to input of
amplifier or other effects.
③DRIVE
This controls overdrive level. Turn it
clockwise for more overdrive.
