Maxon TPD-8000 Series User Manual

11

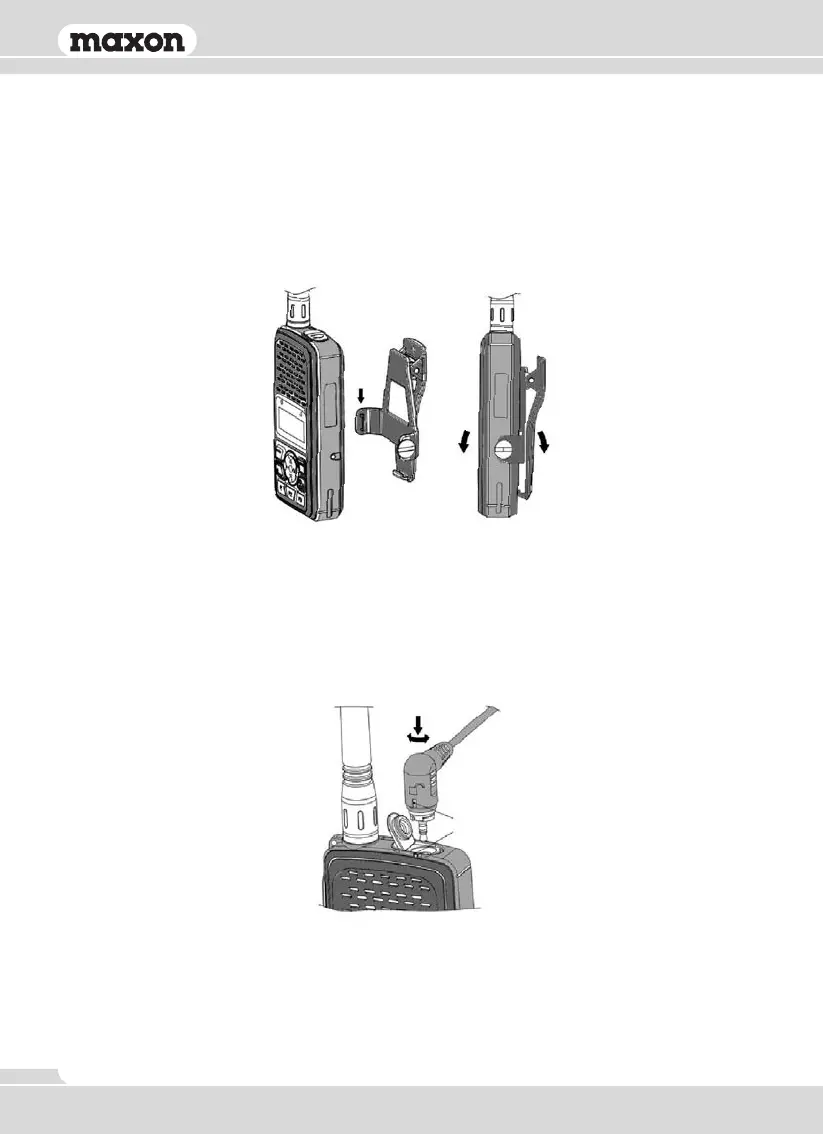

Belt Clip Installation and Removal
Align the belt clip with the designated side slot and screw hole in frame. Tighten the screw as shown
in Figure 4. Conversely, loosen the screw to remove the belt clip.
External Audio Accessory Jack
Open the accessory cover and align the accessory connector with the accessory jack. Push down
and turn clockwise to lock the accessory into the jack.
To remove the accessory, push down and turn counter clockwise: See Figure 5.
Figure 5: External accessory connection
Figure 4: Belt clip installation and removal
Align the body with accessory hole
PUSH
TURN
