MaxPower SUNBRIDGE PV6000 - PV Module Selection

8
and PV modules.
WARNING! All wiring must be performed by a qualified personnel.
WARNING: Please switch off the inverter before you connect PV modules. Otherwise, it will damage the
inverter.
WARNING! It's very important for system safety and efficient operation to use appropriate cable for PV
module connection. To reduce risk of injury, please use the proper recommended cable size as below.
Model
Typical Amperage
Cable Size
Torque
SUNBRIDGE PV6000
27A
10AWG
2.0~2.4Nm
PV Module Selection:
When selecting proper PV modules, please be sure to consider below parameters:
1. Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter.
2. Open circuit Voltage (Voc) of PV modules should be higher than min. battery voltage.
Solar Charging Mode
INVERTER MODEL
SUNBRIDGE PV6000
Max. PV Array Open Circuit Voltage
450 Vdc
PV Array MPPT Voltage Range
120~430Vdc
MPP Number
1

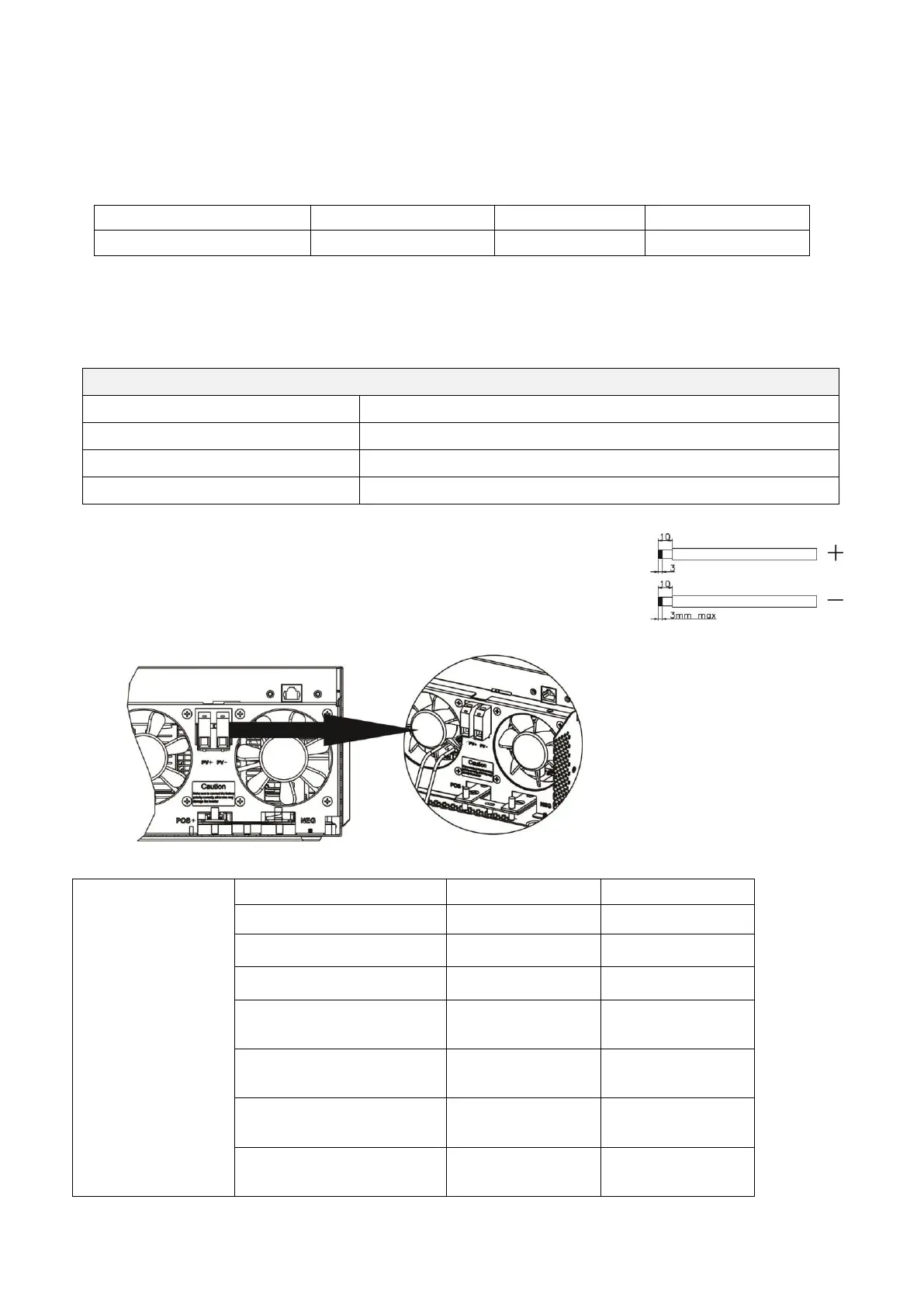

Please follow below steps to implement PV module connection:
1. Remove insulation sleeve 10 mm for positive and negative conductors.
2. Check correct polarity of connection cable from PV modules and PV input
connectors. Then, connect positive pole (+) of connection cable to positive
pole (+) of PV input connector. Connect negative pole (-) of connection
cable to negative pole (-) of PV input connector.
Recommended PV module Configuration
PV Module Spec.
(reference)
- 250Wp
- Vmp: 30.7Vdc
- Imp: 8.15A
- Voc: 37.4Vdc
- Isc: 8.63A
- Cells: 60
Total solar input power
Solar input
Q'ty of modules
1500W
6 pieces in series
6 pcs
2000W
8 pieces in series
8 pcs
2750W
11 pieces in series
11 pcs
3000W
6 pieces in series
2 strings in parallel
12 pcs
4000W
8 pieces in series
2 strings in parallel
16 pcs
5000W
10 pieces in series
2 strings in parallel
20 pcs
6000W
12 pieces in series
2 strings in parallel
24 pcs
