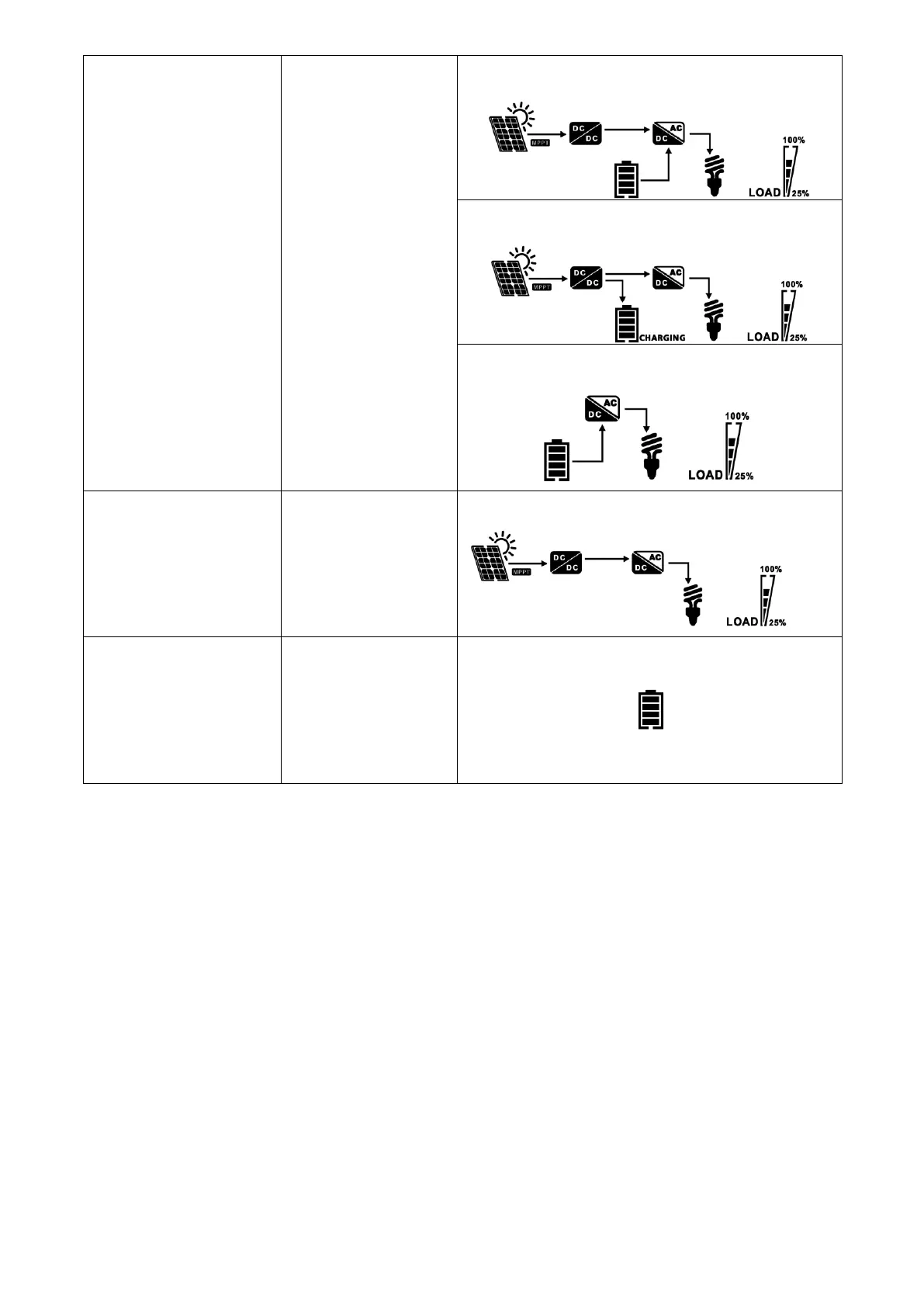

Battery mode
Output power from
battery or PV
PV energy and battery energy supply power to the
load.
PV energy charges battery and provides power to the
load.
Battery provides power to the load.
Only PV mode
Output power from PV
PV provides power to the load.
Fault mode
Note:
*Fault mode: Errors are
caused by inside circuit error
or external reasons such as
over temperature, output
short circuited and so on.
No output, no
charging.
No charging.
