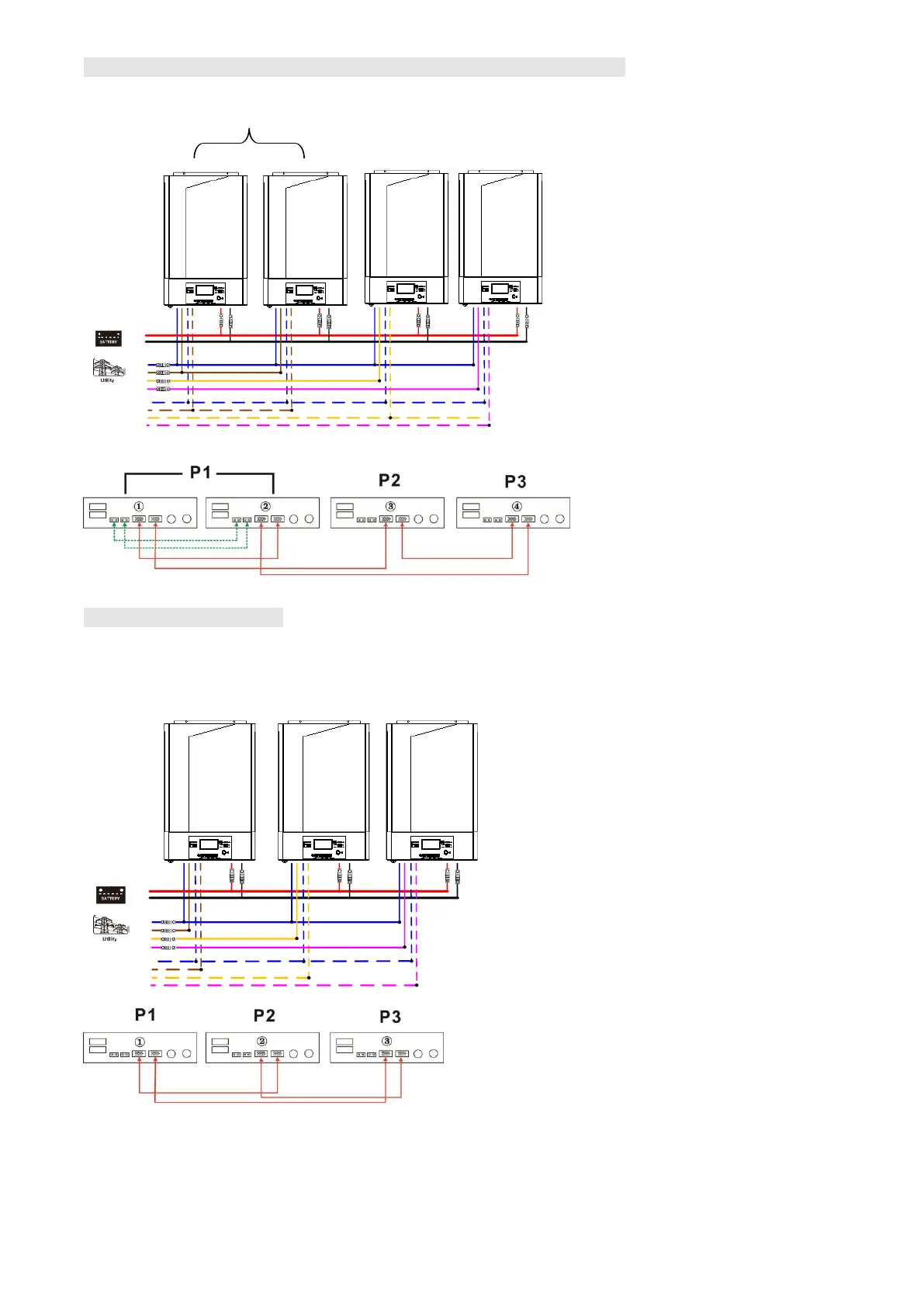

Two inverters in one phase and only one inverter for the remaining phases:
Power Connection
N
L1
P1 P2 P3
L2
L3
N
L1
L2
L3
Load
Communication Connection
One inverter in each phase:
Power Connection
N
L1
P1 P2 P3
L2
L3
N
L1
L2
L3
Load
Communication Connection
WARNING: Do not connect the current sharing cable between the inverters which are in different phases.
Otherwise, it may damage the inverters.
6. PV Connection
Please refer to user manual of single unit for PV Connection.
CAUTION: Each inverter should connect to PV modules separately.
