Product Overview
Parallel model Single model
NOTE: For parallel model installation and operation, please check separate parallel installation guide for the
details.

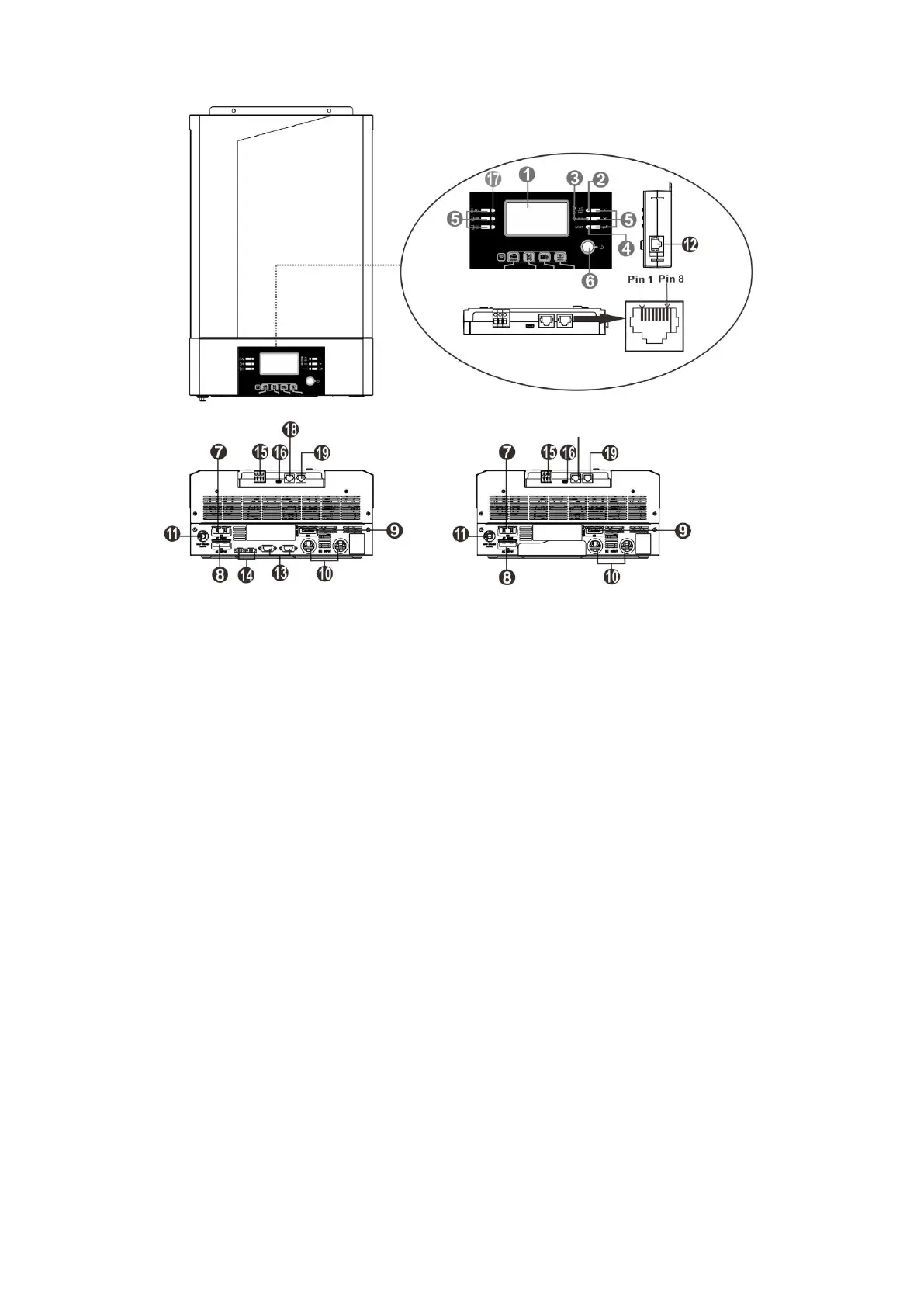

1. LCD display
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
6. Power on/off switch
7. AC input connectors
8. AC output connectors (Load connection)
9. PV connectors
10. Battery connectors
11. Circuit breaker
12. Remote LCD panel communication port
13. Parallel communication port
14. Current sharing port
15. Dry contact
16. USB communication port
17. LED indicators for USB function setting / Output source priority timer / Charger source priority setting
18. BMS communication port: CAN, RS-485 or RS-232
19. RS-232 communication port
