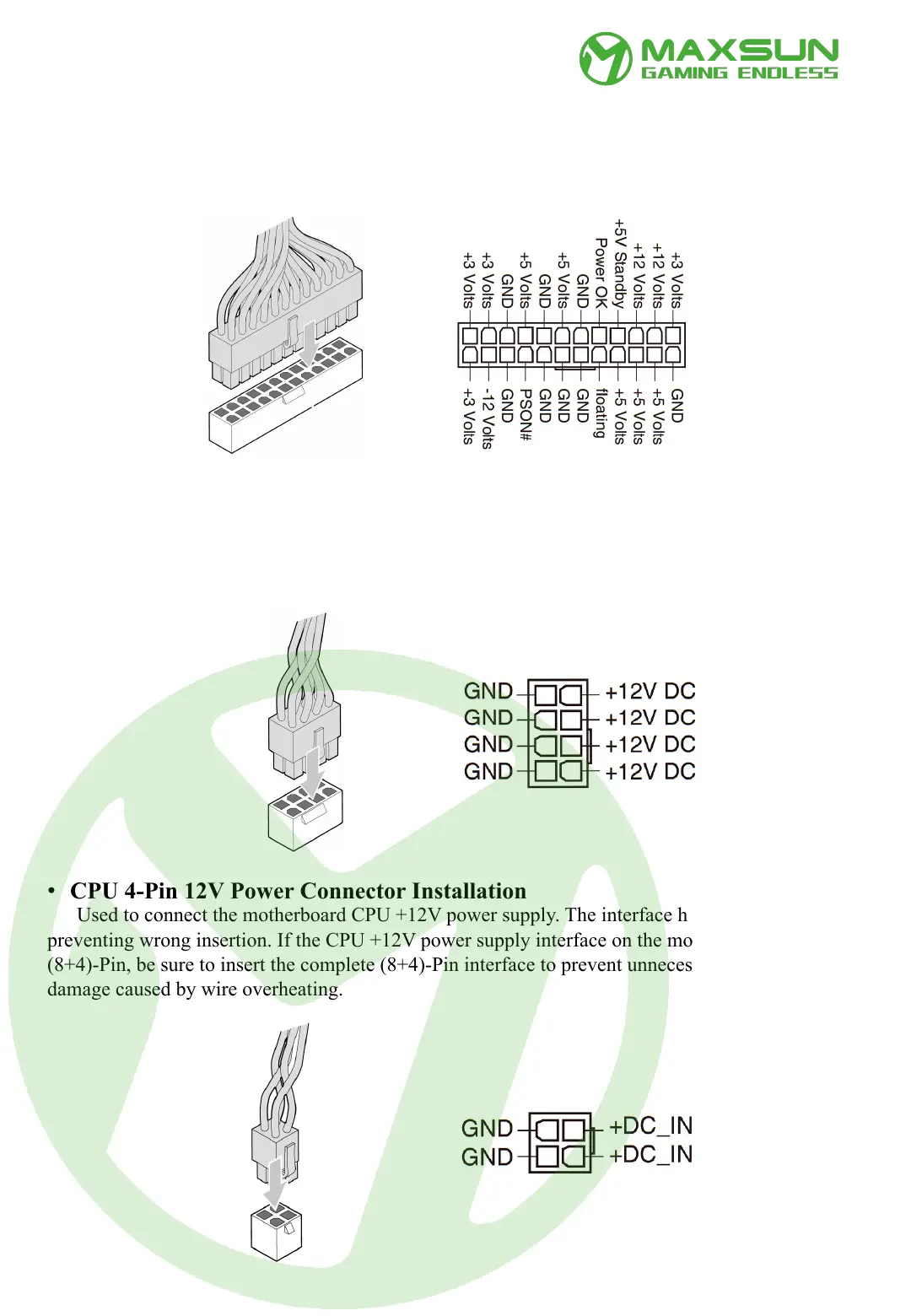

• CPU 8-Pin 12V Power Connector Installation
Used to connect the motherboard CPU +12V power supply. The interface has the function of
preventing wrong insertion. If the CPU +12V power supply interface on the motherboard is
(8+8)-Pin, be sure to insert the complete (8+4)-Pin interface to prevent unnecessary hardware
damage caused by wire overheating.
• 24-Pin ATX Power Connector Installation
Used to connect the 12V, 5V, 3.3V power supplies required by the 24-Pin of the motherboard.
The slot has an anti-misinsertion function.
• CPU 4-Pin 12V Power Connector Installation
Used to connect the motherboard CPU +12V power supply. The interface has the function of
preventing wrong insertion. If the CPU +12V power supply interface on the motherboard is
(8+4)-Pin, be sure to insert the complete (8+4)-Pin interface to prevent unnecessary hardware
damage caused by wire overheating.
Installation Instructions
To Next Page
