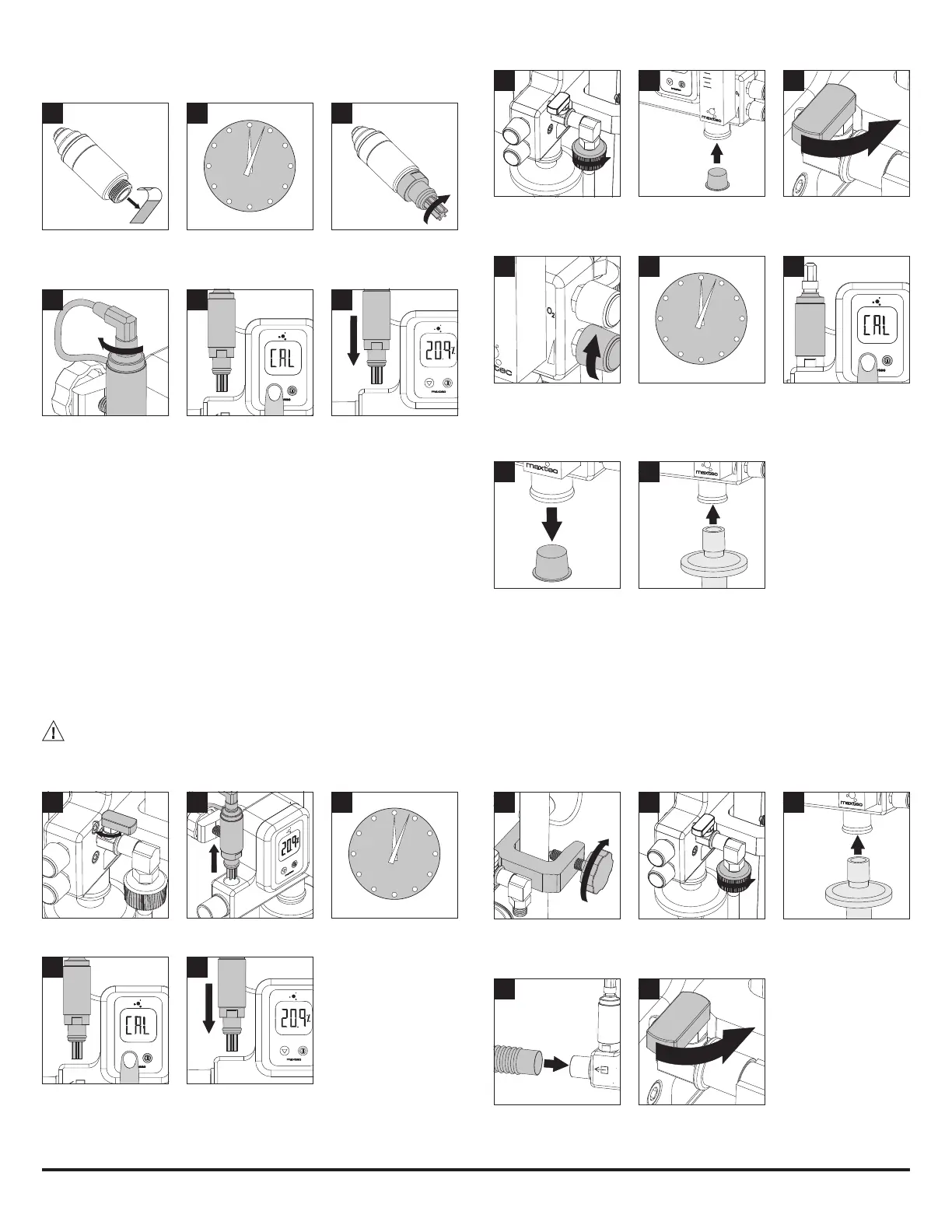

2.0 SET-UP INSTRUCTIONS
2.1 Sensor Installation
1 2
3
Remove Max-250 sensor
and pull off barrier film.
Wait 30 to 90 minutes for
sensor to stabilize.
Attach flow diverter.
4
5 6
Attach sensor to sensor
cable.
Press and hold CAL button for
three (3) seconds. Wait for
display to read "20.9%".
Insert sensor into port on
MaxVenturi.
2.2 Calibration
A new calibration is required when:
•
The measured O2 percentage in 100% O2 is below 97.0%.
•
The measured O2 percentage in 100% O2 is above 103.0%.
•
The CAL reminder icon is blinking at the bottom of the LCD.
•
You are unsure about the displayed O2 percentage, see Factors Influencing
Accurate Readings in section 3.0.
The MaxVenturi can be calibrated at 100% oxygen or room oxygen (20.9%). The One Touch
calibration will assume one of these two concentrations.
2.2.1 Room Air Calibration
CAUTION: Turn off all flow of gas to the MaxVenturi before calibration in room air.
Calibrating the oxygen sensor in a gas concentration other than room air (20.9%) will result
in an incorrect measurement of oxygen concentration.
1 2 3
Shut off oxygen supply. Remove sensor from port. Wait two (2) minutes for sen-
sor to equilibrate in room air.
4 5
Press and hold CAL button
for three (3) seconds. Wait
for display to read "20.9%".
Place sensor in port.
2.2.2 100% Oxygen Calibration
1 2 3
Connect oxygen supply line
from wall to MaxVenturi.
Plug room air inlet. Turn ON/OFF valve to the
ON position.
4 5 6
Turn flow knob a few turns
to flow gas.
Wait two (2) minutes for
sensor to equilibrate.
Press and hold CAL button
for three (3) seconds. Wait
for display to read 100%.
7 8
Remove plug from room
air inlet.
Insert air inlet filter in room
air inlet port.
NOTE: Analyzer will read "Cal Err St" if the sample gas is not stable or if the oxygen sensor
has reached its end of life.
2.3 Device Set-up
NOTE: Patient circuit and patient interface should be assembled according to manufacturers
instructions supplied with them.
1 2 3
Attach MaxVenturi to IV
pole. Twist knob to tighten.
Connect oxygen supply line
from wall to MaxVenturi.
Insert air inlet filter in room
air inlet port.
4 5
Attach patient circuit to
MaxVenturi outlet.
Turn ON/OFF valve to ON
position.
