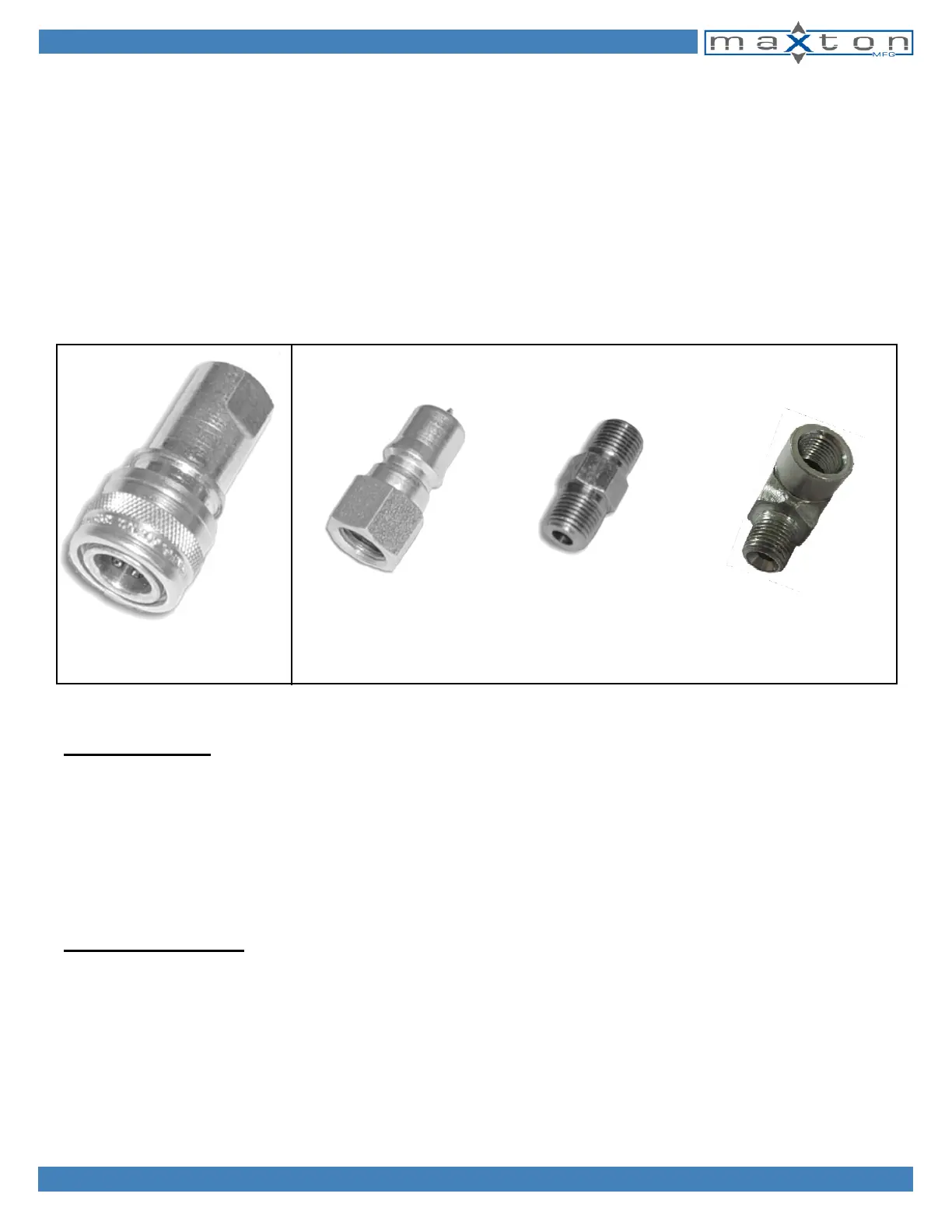

The Hydraulic Quick Disconnect installed into the “A” port of your Maxton valve provides for fast and
easy gauge installation when measuring working pressure and setting the relief valve. Included In
kit QDK1-8 is the 1/8” NPT nipple, 1/8” NPT Hex Nipple and a 1/8” NPT 90° fitting to accommodate
possible space constraints.
Quick Disconnect Couplings and Nipples are Interchangeable with ISO B 7241 Fittings and can also
be installed in the "B" Port for compliance with code ASME A17.1-2010 3.19.4.5.
QDK1-8
1/8" NPT Coupling 1/8" NPT Hex Nipple
1/8" NPT 90º Fitting
1/8" NPT Nipple
QDC1-8
Specifications
Series "H" Hydraulics Steel
Max Operating Pressure 800 psi (55 bar)
Line Connections 1/8" NPT - A, B ports
Max Operating Temperature 150° F (65° C)
Oil Type Hydraulic Fluid
Overall Dimensions: Width (inch) Height (inch) Weight (ounce)
Coupling 1 2 2
Nipple 1/2 1-1/4 0.5
Hex Nipple 1/2 1-1/16 0.05
90º Fitting 5/8 1-1/4 0.05
HYDRAULIC QUICK DISCONNECT
